VOE14588781 Bushing heavy parts of EC700B, EC700C, EC750D
1. Quick Details of seal VOE14588781:
| Part NO. | VOE14588781 |
| Machine | Excavator |
| Size | OEM |
| Material | PU |
| Type | RING SEAL |

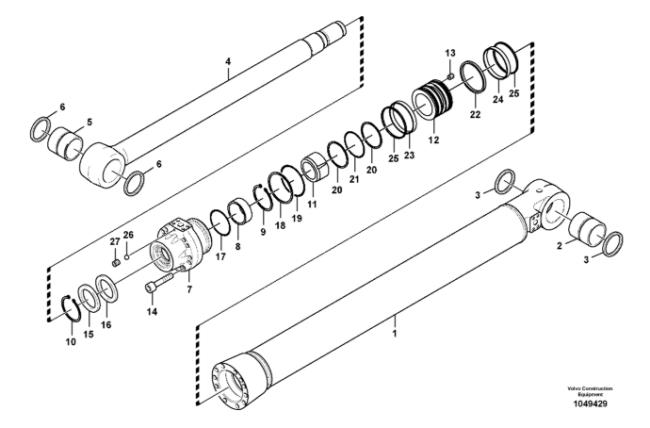

2. VOE14588781 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14587750 | Cylinder | 1 | |
| 1 | VOE14588100 | Tube | 1 |
| 2 | VOE14589004 | Bushing | 1 |
| 3 | VOE14560217 | Seal | 2 |
| 4 | VOE14588103 | Rod | 1 |
| 5 | VOE14589004 | Bushing | 1 |
| 6 | VOE14560217 | Seal | 2 |
| 7 | VOE14588107 | Head | 1 |
| 8 | VOE14588781 | Bushing | 1 |
| 9 | SA9557-13000 | Retaining ring | 1 |
| 10 | VOE14883880 | Retaining ring | 1 |
| 11 | VOE14588109 | Cushion | 1 |
| 12 | VOE14588108 | Piston | 1 |
| 13 | VOE14588457 | Set screw | 1 |
| 14 | VOE14568624 | Bolt | 12 |
| 15 | VOE14588458 | Seal | 1 |
| 16 | VOE14588778 | Seal | 1 |
| 17 | VOE14588780 | Seal | 1 |
| 18 | SA9566-31850 | Back-up nng | 1 |
| 19 | VOE14611292 | O-ring | 1 |
| 20 | SA9566-31200 | Back-up ring | 2 |
| 21 | VOE990647 | O-ring | 1 |
| 22 | VOE14589003 | Seal | 1 |
| 23 | VOE14587744 | Ring | 1 |
| 24 | VOE14587743 | Ring | 1 |
| 25 | VOE14587745 | Seal | 2 |
| 26 | VOE14880995 | Ball | 1 |
| 27 | SA7281-11070 | Plug | 1 |
| VOE14612140 | Sealing kit | 1 |

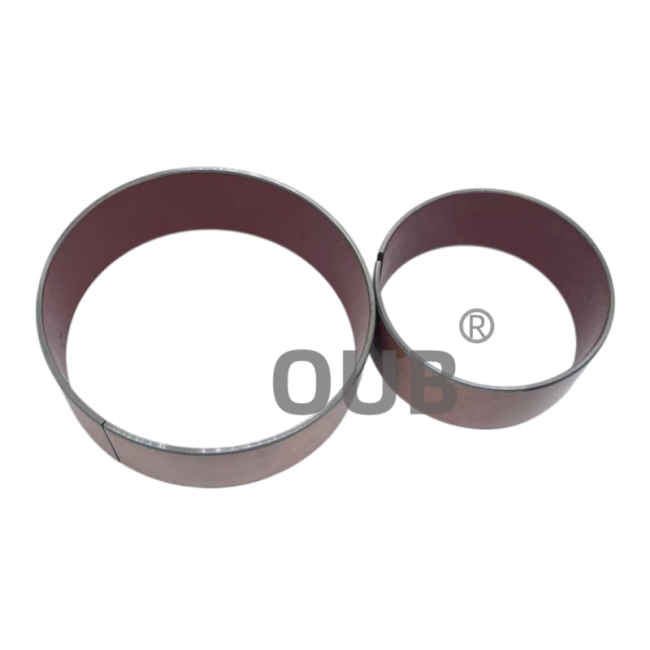

3. VOE14588781 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 6J9733 | 5J8150 | 7F8268 |
| 8175504 | 5J8275 | 1H5728 |
| 5J8175 | 8150500 | 2H3928 |
| 6J9178 | 6J9733 | 4J9220 |
| 158-8979 | 249-6670 | 3P0655 |
| 2701820 | 5K9090 | 8175504 |
| 249-6670 | 6V8400 | 5J8175 |
5. FAQ
Q: What construction machine is spare part VOE14588781 suitable for installation?
A: VOE14588781 piston seal ring is made for excavator hydraulic cylinder piston assembly.
Q: What is the classification and standard part name of VOE14588781?
A: VOE14588781 belongs to piston seal ring, it is a bidirectional hydraulic sealing spare part.
Q: What raw materials make up this piston seal ring?
A: It consists of filled PTFE sliding layer and elastic NBR rubber back-up retaining ring.
Q: What main role does this piston seal ring play in the hydraulic cylinder?
A: It isolates hydraulic oil on two sides of piston to prevent internal bypass leakage and keep cylinder power steady.
Q: Where will this piston seal ring be mounted in the hydraulic assembly?
A: It is seated into the circumferential groove of piston inside the boom hydraulic cylinder of excavator.
Q: What unique performance features does this composite piston seal have?
A: It delivers low friction movement, good elasticity and strong resistance to extrusion under pressure.
Q: What kind of working temperature range can this piston seal ring handle?
A: It can maintain reliable sealing performance within normal operating temperature of excavator hydraulic system.
Q: What visible working issue will show up once this piston seal ring is degraded?
A: Boom will sink gradually under load and the lifting action will become sluggish during operation.
