VOE14596575 Bushing heavy parts of EC950E
1. Quick Details of seal VOE14596575:
| Part NO. | VOE14596575 |
| Machine | Excavator |
| Size | OEM |
| Material | PU |
| Type | RING SEAL |

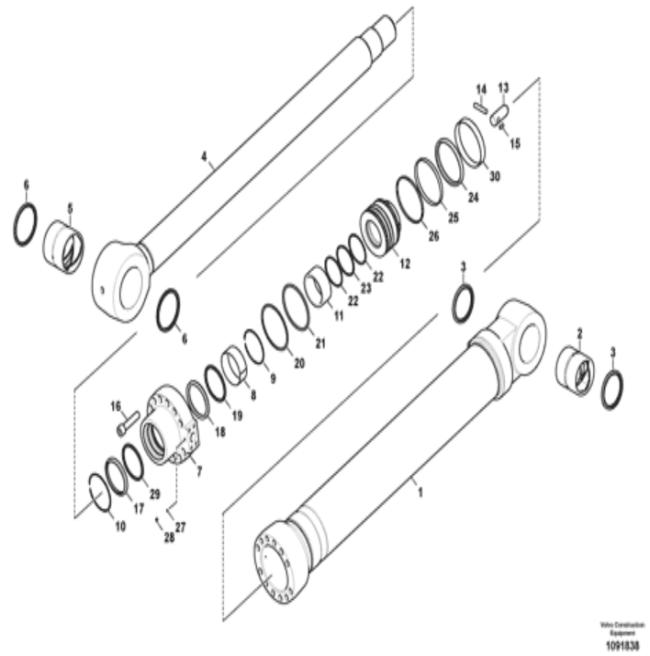

2. VOE14596575 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14706003 | Cylinder | 1 | |
| 1 | VOE14723363 | Tube | 1 |
| 2 | VOE14596467 | Bushing | 1 |
| 3 | VOE14560217 | Seal | 2 |
| 4 | VOE14596556 | Rod | 1 |
| VOE914167 | Lubricating nipple | 1 | |
| 5 | VOE14596529 | Bushing | 1 |
| 6 | VOE14596527 | Seal | 2 |
| 7 | VOE14596560 | Head | 1 |
| 8 | VOE14596575 | Bushing | 1 |
| 9 | VOE14596563 | Ring | 1 |
| 10 | VOE14596574 | Ring | 1 |
| 11 | VOE14596562 | Cushion | 1 |
| 12 | VOE14723366 | Piston | 1 |
| 13 | VOE14723839 | Cushion | 1 |
| 14 | VOE14596546 | Pin | 1 |
| 15 | VOE14883743 | Set screw | 2 |
| 16 | VOE14588456 | Bolt | 12 |
| 17 | VOE14597457 | Seal | 1 |
| 18 | VOE14883928 | Seal | 1 |
| 19 | VOE14714221 | Seal | 1 |
| 20 | VOE14714369 | O-ring | 1 |
| 21 | VOE14883712 | Back-up ring | 1 |
| 22 | SA9566-31350 | Back-up ring | 2 |
| 23 | VOE990650 | O-ring | 1 |
| 24 | VOE14723367 | Seal | 1 |
| 25 | VOE14597462 | Ring | 1 |
| 26 | VOE14884992 | Seal | 1 |
| 27 | VOE14880995 | Ball | 1 |
| 28 | SA7281-11070 | Plug | 1 |
| 29 | VOE14883930 | Back-up ring | 1 |
| 30 | VOE14723368 | Ring | 1 |
| 100 | VOE14729322 | Sealing kit | 1 |
3. VOE14596575 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 6J9733 | 5J8150 | 7F8268 |
| 8175504 | 3K-0360 | 195-2139 |
| 5J8175 | 095-1716 | 8T-2306 |
| 6J9178 | 3K-0360 | 1P-7363 |
| 158-8979 | 249-6670 | 3P0655 |
| 2701820 | 5K9090 | 8175504 |
5. FAQ
Q: What construction machine is spare part VOE14596575 designed to fit?
A: VOE14596575 piston seal ring is manufactured for excavator hydraulic cylinder piston assembly.
Q: What is the product category and official part name of VOE14596575?
A: VOE14596575 belongs to piston seal ring, it is a double-acting hydraulic sealing spare component.
Q: What materials are used to produce this piston seal ring?
A: It uses bronze filled PTFE sliding ring paired with NBR rubber elastic back-up ring.
Q: What main function does this piston seal ring perform in hydraulic cylinder?
A: It prevents bidirectional internal hydraulic oil leakage and maintains stable piston pressure output.
Q: Where is this piston seal ring installed on the hydraulic cylinder assembly?
A: It is fitted into the piston groove of boom hydraulic cylinder of the excavator.
Q: What special performance advantages does bronze filled PTFE seal have?
A: It features outstanding wear resistance, low friction and strong extrusion resistance under high pressure.
Q: What kind of working environment can this piston seal ring adapt to?
A: It works reliably under continuous heavy load on mining and earthmoving construction sites.
Q: What failure signs will show up once this piston seal ring wears out?
A: Boom will lose holding force and internal oil leakage will reduce the cylinder working efficiency.
