VOE14542092 Bushing heavy parts EC700B, EC700C
1. Quick Details of seal VOE14542092:
| Part NO. | VOE14542092 |
| Machine | Excavator |
| Size | OEM |
| Material | PU |
| Type | RING SEAL |

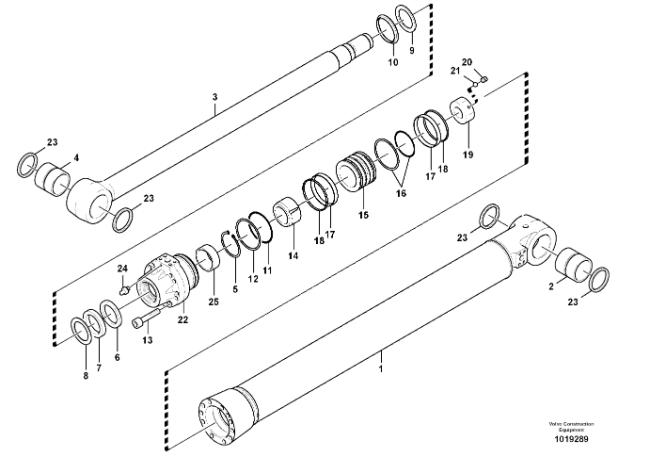

2. VOE14542092 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14511684 | Cylinder | 1 | |
| 1 | VOE14542089 | Tube | 1 |
| 2 | VOE14542108 | Bushing | 2 |
| 3 | VOE14542090 | Rod | 1 |
| 4 | VOE14542108 | Bushing | 2 |
| 5 | VOE14542093 | Ring | 1 |
| 6 | VOE14542094 | Ring | 1 |
| 7 | VOE14542095 | Ring | 1 |
| 8 | VOE14542096 | Ring | 1 |
| 9 | VOE14542097 | Ring | 1 |
| 10 | VOE14585343 | Ring | 1 |
| 11 | VOE14542099 | O-ring | 1 |
| 12 | VOE14542100 | Ring | 1 |
| 13 | VOE14542022 | Bolt | 8 |
| 14 | VOE14542101 | Ring | 1 |
| 15 | VOE14542103 | Ring | 1 |
| 16 | VOE14542104 | Ring | 2 |
| 17 | VOE14542105 | Ring | 2 |
| 18 | VOE14542106 | Nut | 1 |
| 19 | VOE14542107 | Set screw | 1 |
| 20 | SA9676-71600 | Ball | 1 |
| 21 | VOE14542032 | Ring | 4 |
| 22 | VOE14542033 | Venting | 2 |
| 23 | VOE14542092 | Bushing | 1 |
| 24 | VOE14542111 | Rod | 1 |
| 25 | VOE14589339 | Sealing kit | 1 |
3. VOE14542092 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 6J9733 | 5J8150 | 7F8268 |
| 8175504 | 4J-7533 | 195-2139 |
| 5J8175 | 095-1716 | 8T-2306 |
| 6J9178 | 3K-0360 | 1P-7363 |
| 158-8979 | 249-6670 | 3P0655 |
| 2701820 | 5K9090 | 8175504 |
5. FAQ
Q: What construction machine does spare part VOE14542092 match for assembly?
A: VOE14542092 piston seal ring is engineered for excavator hydraulic cylinder piston assembly.
Q: What is the category and official part name of VOE14542092?
A: VOE14542092 falls under piston seal ring, it is a double-acting hydraulic sealing spare component.
Q: What materials are used to manufacture this piston seal ring?
A: It adopts carbon filled PTFE sliding ring paired with elastic NBR energizing back ring.
Q: What core sealing task does this piston seal ring perform in hydraulic cylinder?
A: It isolates hydraulic oil on both sides of piston and stops internal cross leakage to sustain cylinder output force.
Q: Where is this piston seal ring mounted on the hydraulic cylinder assembly?
A: It is installed in the piston groove of bucket hydraulic cylinder on the excavator.
Q: What unique performance advantages does carbon filled PTFE seal bring?
A: It delivers low friction motion, good thermal stability and strong extrusion resistance under fluctuating pressure.
Q: What hydraulic pressure range can this piston seal ring endure steadily?
A: It can work reliably under medium to high hydraulic pressure during regular digging cycles.
