VOE14542014 Bushing heavy parts OF EC700B, EC700C
1. Quick Details of seal VOE14542014:
| Part NO. | VOE14542014 |
| Machine | Excavator |
| Size | OEM |
| Material | PU |
| Type | RING SEAL |

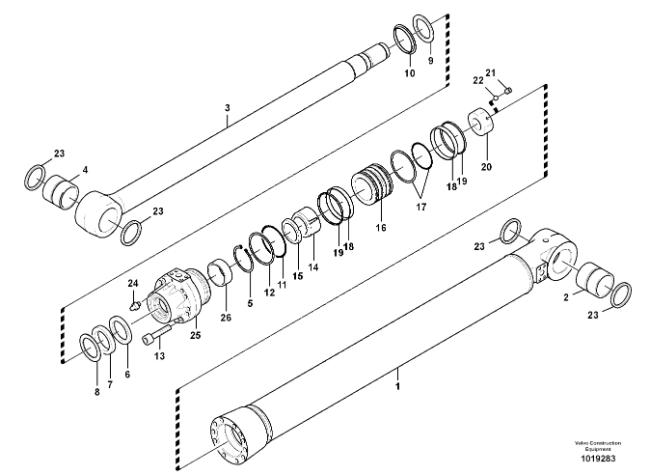

2. VOE14542014 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14511286 | Cylinder | 1 | |
| VOE14564681 | Cylinder | 1 | |
| 2 | VOE14542034 | Bushing | 2 |
| 3 | VOE14544925 | Rod | 1 |
| 4 | VOE14542034 | Bushing | 2 |
| 5 | VOE14542015 | Ring | 1 |
| 6 | VOE14542016 | Ring | 1 |
| 7 | VOE14542017 | Ring | 1 |
| 8 | VOE14542018 | Ring | 1 |
| 9 | VOE14542019 | Ring | 1 |
| 10 | VOE14585340 | Ring | 1 |
| 11 | VOE960252 | O-ring | 1 |
| 12 | VOE14542021 | Ring | 1 |
| 13 | VOE14542022 | Bolt | 8 |
| 14 | VOE14542023 | Ring | 1 |
| 15 | VOE14542024 | Seal | 1 |
| 16 | VOE14542025 | Piston | 1 |
| 17 | VOE14542026 | Ring | 1 |
| 18 | VOE14542027 | Ring | 2 |
| 19 | VOE14542028 | Ring | 2 |
| 20 | VOE14542029 | Nut | 1 |
| 21 | VOE14542030 | Set screw | 1 |
| 22 | SA9676-38000 | Ball | 1 |
| 23 | VOE14542032 | Ring | 4 |
| 24 | VOE14542033 | Venting | 2 |
| 26 | VOE14542014 | Bushing | 1 |
| 100 | VOE14589336 | Sealing kit | 1 |
3. VOE14542014 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 6J9733 | 5J8150 | 7F8268 |
| 8175504 | 4J-5477 | 195-2139 |
| 5J8175 | 095-1716 | 8T-2306 |
| 6J9178 | 3K-0360 | 1P-7363 |
| 158-8979 | 249-6670 | 3P0655 |
| 2701820 | 5K9090 | 8175504 |
5. FAQ
Q: What construction machine can use spare part VOE14542014?
A: VOE14542014 piston seal ring is manufactured for excavator hydraulic cylinder piston assembly.
Q: What is the classification and official part name of VOE14542014?
A: VOE14542014 belongs to piston seal ring, it is a bidirectional hydraulic sealing spare component.
Q: What raw materials are used to produce this piston seal ring?
A: It adopts glass filled PTFE sliding surface matched with PU elastic energizing back ring.
Q: What core sealing task does this piston seal ring perform in hydraulic cylinder?
A: It blocks hydraulic oil passing from one side of piston to the other to maintain stable cylinder thrust output.
Q: Where is this piston seal ring mounted inside the hydraulic cylinder assembly?
A: It is fitted in the piston groove of stick hydraulic cylinder of the excavator.
Q: What special performance advantages does glass filled PTFE seal own?
A: It has excellent dimensional stability, low friction and strong resistance to extrusion under pressure surge.
Q: What kind of hydraulic oil can be compatible with this piston seal ring?
A: It works well with standard anti-wear hydraulic oil widely adopted for excavator hydraulic circuits.
Q: What operating symptoms will appear once this piston seal ring gets worn?
A: Stick will slowly sink under load and the stretching and retracting speed of arm will become uneven.
Q: What installation tips should we follow when assembling this piston seal ring?
A: Lubricate the seal lightly with clean hydraulic oil and avoid twisting the split PTFE ring during fitting.
