VOE14542051 Bushing heavy parts OF EC700B, EC700BHR, EC700C
1. Quick Details of seal VOE14542051:
| Part NO. | VOE14542051 |
| Machine | Excavator |
| Size | OEM |
| Material | PU |
| Type | RING SEAL |
2. VOE14542051 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| VOE14564682 | Cylinder | 1 | |
| 1 | VOE14549702 | Tube | 1 |
| 2 | VOE14542070 | Bushing | 1 |
| 3 | VOE14549703 | Rod | 1 |
| 4 | VOE14542070 | Bushing | 1 |
| 5 | VOE14542052 | Ring | 1 |
| 6 | VOE14542053 | Ring | 1 |
| 7 | VOE14618209 | Ring | 1 |
| 8 | VOE14542055 | Ring | 1 |
| 9 | VOE14542056 | Ring | 1 |
| 10 | VOE14585341 | Ring | 1 |
| 11 | VOE14542058 | O-ring | 1 |
| 12 | VOE14542059 | Ring | 1 |
| 13 | VOE14542060 | Bolt | 8 |
| 14 | VOE14549704 | Ring | 1 |
| 15 | VOE14549705 | Piston | 1 |
| 16 | VOE14542063 | Ring | 1 |
| 17 | VOE14549706 | Ring | 2 |
| 18 | VOE14542064 | Ring | 2 |
| 19 | VOE14549784 | Shim | 1 |
| 20 | V0E14549707 | Nut | 1 |
| 21 | VOE14549785 | Screw | 1 |
| 22 | SA9676-71600 | Ball | 1 |
| 23 | VOE14542050 | Head | 1 |
| 24 | VOE14542071 | Ring | 4 |
| 25 | VOE14542033 | Venting | 1 |
| 26 | VOE14542051 | Bushing | 1 |
| 27 | VOE14542065 | Ring | 2 |
| 100 | VOE14589337 | Sealing kit | 1 |

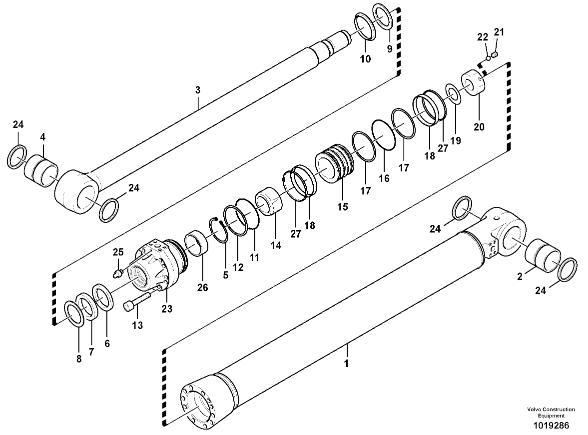

3. VOE14542051 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 6J9733 | 5J8150 | 7F8268 |
| 8175504 | 6V-8398 | 195-2139 |
| 5J8175 | 095-1716 | 8T-2306 |
| 6J9178 | 3K-0360 | 1P-7363 |
| 158-8979 | 249-6670 | 3P0655 |
| 2701820 | 5K9090 | 8175504 |
5. FAQ
Q: What construction machinery is spare part VOE14542051 designed for installation?
A: VOE14542051 piston seal ring is produced for excavator hydraulic cylinder piston assembly.
Q: What is the product category and formal part name of VOE14542051?
A: VOE14542051 is categorized as piston seal ring, it is a double-acting hydraulic sealing spare part.
Q: What raw materials compose this piston seal ring?
A: It is made of glass filled PTFE sliding layer combined with NBR rubber energizing back ring.
Q: What main function does this piston seal ring deliver in the hydraulic cylinder?
A: It prevents bidirectional internal oil bypass across piston and keeps consistent cylinder pushing force.
Q: Where is this piston seal ring fitted within hydraulic cylinder assembly?
A: It is embedded in the piston groove of boom hydraulic cylinder of the excavator.
Q: What are the main performance strengths of glass filled PTFE material?
A: It maintains stable size under pressure, offers low friction and great wear resistance for long operation.
Q: What pressure fluctuation can this piston seal ring withstand during operation?
A: It can handle frequent pressure spikes generated during excavation and lifting operations.
Q: What signs indicate that this piston seal ring needs replacement?
A: Boom will drift under static load and the lifting speed will become unstable during work.
