561-15-69620 5611569620 O-RING (K1) OF WA500-6R HD785-5LC
Price:
Negotiable
MOQ:
10
Delivery Time:
Within 5-15 days after getting your desposit
Brand:
OUB
Product Description
1. Quick Details of seal 561-15-69620:
| Part NO. | 561-15-69620 |
| Machine | Excavator |
| Size | OEM |
| Material | NBR |
| Oil seal type | O RING |

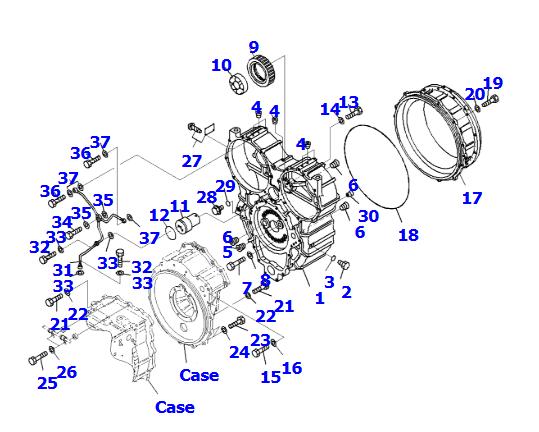

2. 561-15-69620 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 425-13-33112 | Case | 1 |
| 2 | 07040-11409 | Plug | 1 |
| 3 | 07002-61423 | O-ring, (Kit : K04) | 1 |
| 4 | 07043-70108 | Plug | 7 |
| 5 | 425-13-33740 | Plug | 1 |
| 6 | 07043-71019 | Plug | 3 |
| 7 | 01010-81255 | Bolt | 16 |
| 8 | 01643-31232 | Washer | 16 |
| 9 | 425-13-44230 | Gear | 1 |
| 9 | 425-13-34231 | Gear | 1 |
| 10 | 425-13-34250 | Bearing | 1 |
| 11 | 425-13-34240 | Shaft | 1 |
| 12 | 07000-72085 | O-ring, (Kit : K04) | 1 |
| 13 | 01010-81445 | Bolt | 1 |
| 14 | 01643-31445 | Washer, Flat | 1 |
| 15 | 01010-81240 | Bolt | 17 |
| 16 | 01643-31232 | Washer | 17 |
| 17 | 425-13-33122 | Housing | 1 |
| 18 | 561-15-69620 | O-ring, (Kit : K04) | 1 |
| 19 | 01010-81240 | Bolt | 12 |
| 20 | 01643-31232 | Washer | 12 |
| 21 | 01010-81240 | Bolt | 12 |
| 22 | 01643-31232 | Washer | 12 |
| 23 | 01010-81245 | Bolt | 2 |
| 24 | 01643-31232 | Washer | 2 |
| 25 | 01010-81255 | Bolt | 2 |
| 26 | 01643-31232 | Washer | 2 |
| 27 | 09607-05080 | Plate, Name (Limited Supply) | 1 |
| 27 | 04418-13060 | Screw | 4 |
| 28 | 708-8E-16150 | Plug | 1 |
| 29 | 07002-61023 | O-ring, (Kit : K04) | 1 |
| 30 | 419-15-12750 | Plug | 1 |
| 31 | 425-13-33722 | Tube | 1 |
| 31 | 425-13-33721 | Tube | 1 |
| 32 | 07206-31014 | Bolt, Joint | 2 |
| 33 | 07005-01412 | Seal, Washer | 4 |
| 34 | 07206-31216 | Bolt, Joint | 1 |
| 35 | 07005-01612 | Seal, Washer | 2 |
| 36 | 07206-30812 | Bolt, Joint | 2 |
| 37 | 07005-01212 | Seal, Washer | 4 |
3. 561-15-69620 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-99-67760 | 707-98-39610 | 707-98-62120 |
| 707-99-59430 | 707-98-37680 | 707-99-74140 |
| 707-98-26560 | 707-98-38500 | 707-98-64450 |
| 707-98-26570 | 707-98-38510 | 707-98-66410 |
| 707-98-26580 | 707-98-38520 | 707-98-67100 |
| 707-51-12860 | 707-98-38520 | 707-98-67110 |
| 707-51-12110 | 707-51-20080 | 707-98-26441 |
5. FAQ
Q: What construction machine is compatible with spare part 561-15-69620?
A: 561-15-69620 O-RING is produced for excavator high-temperature hydraulic circuit joints.
A: 561-15-69620 O-RING is produced for excavator high-temperature hydraulic circuit joints.
Q: What is the standard part name of component 561-15-69620?
A: The standard part name of 561-15-69620 is O-RING.
Q: What material is used to manufacture this O-RING?
A: It is made of premium FKM fluororubber with excellent heat and oil resistant properties.
Q: What main job does this O-RING perform in the hydraulic system?
A: It creates tight static sealing between connecting surfaces to prevent fluid leakage under high temperature and pressure.
Q: Where will this O-RING be fitted on the excavator?
A: It installs in the seal grooves of main hydraulic pump, manifold blocks and high-pressure pipe connectors.
Q: What spare part category does this component fall into?
A: It belongs to high temperature resistant static rubber sealing spare parts for construction machinery.
Q: What advantages does FKM material bring compared with normal rubber O-rings?
A: It can withstand higher working temperature and has much slower aging speed under hot hydraulic oil environment.
Q: What signs indicate that this O-RING needs to be replaced during machine inspection?
A: Oil seepage at high pressure joints, rubber hardening or slight surface crazing after long running time.
6. Exhibition and Wearhous
Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
