195-15-39620 1951539620 O-RING OF HD785-5LC HD785-3
Price:
Negotiable
MOQ:
10
Delivery Time:
Within 5-15 days after getting your desposit
Brand:
OUB
Product Description
1. Quick Details of seal 195-15-39620:
| Part NO. | 195-15-39620 |
| Machine | Motor Grader |
| Size | OEM |
| Material | NBR |
| Oil seal type | O RING |

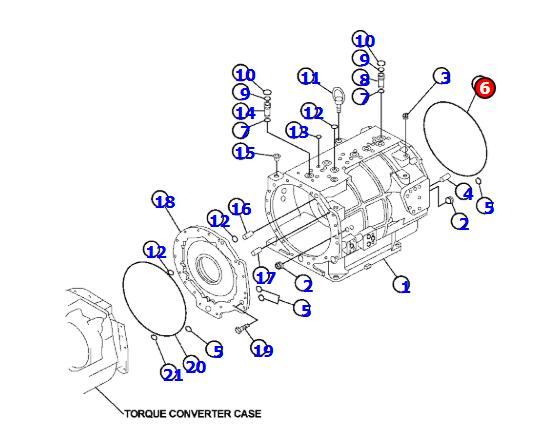

2. 195-15-39620 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 2 | 569-15-31271 | PLUG | 6 |
| 3 | 07042-00211 | PLUG | 1 |
| 4 | 04020-01842 | PIN, DOWEL | 1 |
| 5 | 07000-73038 | O-RING (1)/(3) | 4 |
| 6 | 195-15-39620 | O-RING | 1 |
| 7 | 07000-73022 | O-RING (1) | 5 |
| 8 | 569-15-31310 | SLEEVE | 4 |
| 9 | 07000-73025 | O-RING (3) | 5 |
| 10 | 07000-73045 | O-RING (3) | 7 |
| 11 | 04530-03045 | CAPSCREW | 2 |
| 12 | 07000-73032 | O-RING (1)/(2)/(3) | 3 |
| 13 | 07000-72020 | O-RING (2) | 22 |
| 14 | 561-15-41330 | SLEEVE | 1 |
| 15 | 07048-02820 | PLUG | 2 |
| 16 | 04020-00820 | PIN, DOWEL | 1 |
| 17 | 04020-01434 | PIN, DOWEL | 1 |
| 18 | 561-15-51182 | HOUSING | 1 |
| 19 | 01010-81020 | CAPSCREW | 2 |
| 20 | 195-21-12380 | O-RING (1)/(3) | 1 |
| 21 | 07000-12055 | O-RING (1)/(3) | 1 |
3. 195-15-39620 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-99-67760 | 707-98-39610 | 707-98-62120 |
| 707-99-59430 | 707-98-26820 | 707-98-39611 |
| 707-98-26560 | 707-98-26900 | 707-98-39700 |
| 707-98-26570 | 707-98-26901 | 707-98-40020 |
| 707-98-26580 | 707-98-38520 | 707-98-67100 |
| 707-51-12860 | 707-98-38520 | 707-98-67110 |
| 707-51-12110 | 707-51-20080 | 707-98-26441 |
| 707-99-67310 | 707-98-39700 | 707-98-67110 |
5. FAQ
Q: What construction machine can use spare part 195-15-39620?
A: 195-15-39620 O-RING is engineered for motor grader high-pressure hydraulic pump and manifold assemblies.
A: 195-15-39620 O-RING is engineered for motor grader high-pressure hydraulic pump and manifold assemblies.
Q: What is the standard part name for spare component 195-15-39620?
A: The standard part name for 195-15-39620 is O-RING.
Q: What raw material is this O-RING produced with?
A: It is manufactured from high grade FKM fluororubber, featuring excellent heat and hydraulic oil resistance.
Q: What is the primary function of this O-RING inside the hydraulic system?
A: It creates a tight static seal between connecting metal surfaces to stop high-pressure hydraulic oil leaking outward.
Q: Where is this O-RING mounted on the motor grader?
A: It is placed into the sealing grooves of hydraulic pump port, valve manifold and high-pressure pipe connection joints.
Q: What spare part category does this component belong to?
A: It belongs to high temperature resistant static sealing rubber parts for heavy-duty construction machinery.
Q: What unique performance advantages does FKM material bring?
A: It can endure higher operating temperature and resist aging even under continuous high pressure working cycles.
Q: What abnormal conditions will happen once this O-RING ages or gets damaged?
A: Gradual oil seepage at the joint, and the rubber may become rigid and lose elasticity after long service hours.
