07161-00050 0716100050 RING (KIT) OF PW60-1
1. Quick Details of seal 07161-00050:
| Part NO. | 07161-00050 |
| Machine | Excavator |
| Size | OEM |
| Material | Bronze filled PTFE |
| Type | RING SEAL |

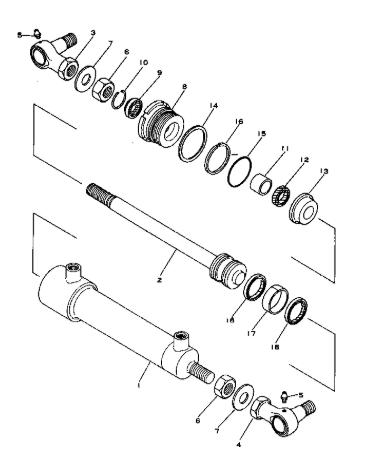

2. 07161-00050 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 20B-63-22142 | CYLINDER | 1 |
| 2 | 20B-63-22120 | ROD | 1 |
| 3 | 20B-63-22291 | JOINT | 1 |
| 4 | 20B-63-22391 | JOINT | 1 |
| 5 | 07020-00001 | FITTING | 2 |
| 6 | 01583-02012 | NUT | 2 |
| 7 | 20B-63-22380 | LOCK | 2 |
| 8 | 707-29-50500 | HEAD | 1 |
| 9 | 07016-00256 | SEAL (KIT) | 1 |
| 10 | 07179-00044 | RING | 1 |
| 11 | 07177-02525 | BUSHING | 1 |
| 12 | 20B-63-22480 | PACKING (KIT) | 1 |
| 13 | 707-51-25510 | RETAINER | 1 |
| 14 | 707-45-50010 | WASHER | 1 |
| 15 | 07000-12060 | O-RING | 1 |
| 16 | 07001-02060 | RING (KIT) | 1 |
| 17 | 07155-00515 | RING (KIT) | 1 |
| 18 | 07161-00050 | RING (KIT) | 2 |

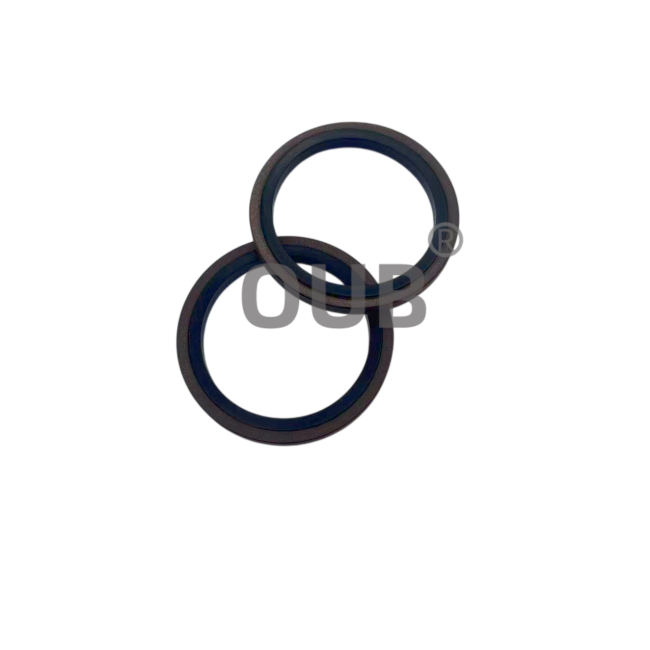

3. 07161-00050 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-99-67760 | 707-98-39610 | 707-98-62120 |
| 707-99-59430 | 707-98-25820 | 707-98-36590 |
| 707-98-26560 | 707-98-64420 | 707-98-36600 |
| 707-98-26570 | 707-98-25870 | 707-98-36630 |
| 707-98-26580 | 707-98-38520 | 707-98-67100 |
| 707-51-12860 | 707-98-38520 | 707-98-67110 |
| 707-51-12110 | 707-51-20080 | 707-98-26441 |
5. FAQ
Q: Which heavy construction machine is part number 07161-00050 applicable to?
A: Part number 07161-00050 is used for the hydraulic cylinder piston of excavator.
Q: Could you confirm the official part name and category of 07161-00050?
A: The official part name is piston seal ring and it is classified into piston seal ring category.
Q: What raw material is used to produce this piston seal ring?
A: It is made of bronze filled PTFE to resist abrasion under high pressure environment.
Q: What key job does this piston seal ring perform in hydraulic cylinder?
A: It separates high-pressure and low-pressure oil area and prevents internal hydraulic leakage.
Q: Where is this piston seal ring mounted inside the hydraulic cylinder assembly?
A: It is fitted inside the outer groove of the piston component.
Q: What are the prominent performance characteristics of this seal ring?
A: It owns low friction rate and strong bearing capacity under continuous heavy loads.
Q: Will this piston seal ring fit the variable load working state of excavator?
A: Yes, it is specially designed to adapt to variable load working conditions for excavators.
