07161-10060 0716110060 RING,PISTON OF D21S-6 D20S-6
1. Quick Details of seal 07161-10060:
| Part NO. | 07161-10060 |
| Machine | Motor Grader |
| Size | OEM |
| Material | PU |
| Type | RING SEAL |
2. 07161-10060 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 103-63-32341 | CYLINDER,L.H. | 1 |
| 1 | 103-63-32441 | CYLINDER,R.H. | 1 |
| 2 | 707-76-40010 | BUSHING | 1 |
| 3 | 07145-00040 | SEAL,DUST | 2 |
| 4 | 707-29-60920 | HEAD,CYLINDER | 1 |
| 5 | 07177-03525 | BUSHING | 1 |
| 6 | 707-51-35210 | PACKING,ROD | 1 |
| 7 | 175-63-75190 | SEAL,DUST | 1 |
| 8 | 07179-00054 | RING,SNAP | 1 |
| 9 | 07000-12055 | O-RING | 1 |
| 10 | 07001-02055 | RING,BACK-UP | 1 |
| 11 | 07000-02060 | O-RING | 1 |
| 12 | 103-63-32320 | ROD,PISTON | 1 |
| 13 | 07143-10303 | BUSHING | 1 |
| 14 | 07145-00030 | SEAL,DUST | 2 |
| 15 | 707-36-60311 | PISTON | 1 |
| 16 | 07161-10060 | RING,PISTON | 1 |
| 17 | 07155-00615 | RING,WEAR | 1 |
| 18 | 07165-12222 | NUT | 1 |
| 19 | 103-63-32380 | TUBE,L.H. | 1 |
| 19 | 103-63-32480 | TUBE,R.H. | 1 |
| 20 | 103-63-32370 | TUBE,L.H. | 1 |
| 20 | 103-63-32470 | TUBE,R.H. | 1 |
| 21 | 01010-51030 | BOLT | 1 |
| 22 | 01643-31032 | WASHER | 1 |

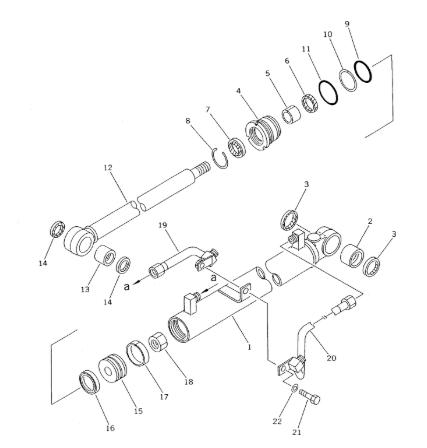

3. 07161-10060 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-99-67760 | 707-98-39610 | 707-98-62120 |
| 707-99-59430 | 707-35-52780 | 707-98-36590 |
| 707-98-26560 | 707-99-64040 | 707-98-36600 |
| 707-98-26570 | 707-98-25870 | 707-98-36630 |
| 707-98-26580 | 707-99-46270 | 707-98-67100 |
| 707-51-12860 | 707-98-38520 | 707-98-67110 |
| 707-51-12110 | 707-51-20080 | 707-98-26441 |
5. FAQ
Q: What is the part number of this piston seal ring product?
A: The part number of this piston seal ring is 07161-10060, categorized as piston seal ring.
Q: Which machine model does part 07161-10060 match for installation?
A: Part 07161-10060 is manufactured for motor grader hydraulic cylinder assembly.
Q: What kind of composite material is this piston seal ring made of?
A: It is produced with PTFE and PU composite sealing material.
Q: What is the primary sealing purpose of this piston seal ring?
A: It blocks hydraulic oil leakage between two sides of piston and maintains stable working pressure.
Q: On which component of the motor grader will this seal ring be assembled?
A: It is fitted into the piston groove of the motor grader blade hydraulic cylinder.
Q: What performance merits can this PTFE+PU composite material provide?
A: It combines low friction from PTFE and high toughness of PU for long service life.
Q: What kind of working environment can this piston seal ring adapt to?
A: It can adapt to dusty construction sites and continuous reciprocating movement conditions.
