07161-10080 0716110080 RING,PISTON OF D21E-6 D20P-6
1. Quick Details of seal 07161-10080:
| Part NO. | 07161-10080 |
| Machine | Motor Grader |
| Size | OEM |
| Material | MoS2 filled PTFE |
| Type | RING SEAL |

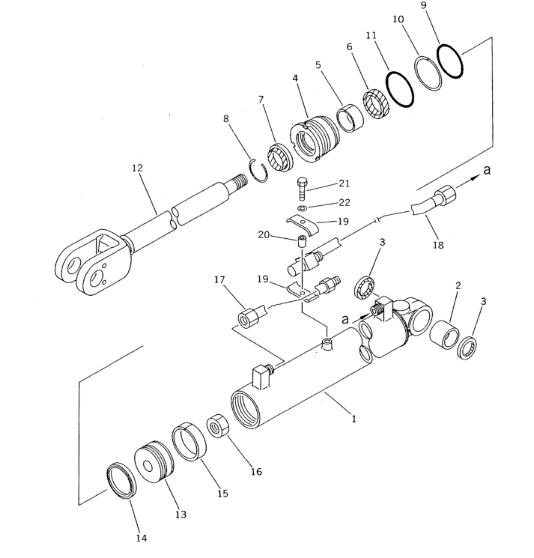

2. 07161-10080 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 103-63-22342 | CYLINDER | 1 |
| 2 | 07143-10404 | BUSHING | 1 |
| 3 | 07145-00040 | SEAL,DUST | 2 |
| 4 | 707-29-80930 | HEAD,CYLINDER | 1 |
| 5 | 07177-04530 | BUSHING | 1 |
| 6 | 707-51-45210 | PACKING,ROD | 1 |
| 7 | 112-63-15370 | SEAL,DUST | 1 |
| 8 | 07179-00064 | RING,SNAP | 1 |
| 9 | 07000-12075 | O-RING | 1 |
| 10 | 07001-02075 | RING,BACK-UP | 1 |
| 11 | 07000-02080 | O-RING | 1 |
| 12 | 103-63-22320 | ROD,PISTON | 1 |
| 13 | 707-36-80911 | PISTON | 1 |
| 14 | 07161-10080 | RING,PISTON | 1 |
| 15 | 07155-00820 | RING,WEAR | 1 |
| 16 | 07165-12729 | NUT | 1 |
| 17 | 103-63-22371 | TUBE | 1 |
| 18 | 103-63-22382 | TUBE,L.H. | 1 |
| 103-63-22482 | TUBE,R.H. | 1 | |
| 19 | 103-63-22250 | CLIP | 2 |
| 20 | 103-63-22260 | SPACER | 1 |
| 21 | 01010-51045 | BOLT | 1 |
| 22 | 01602-21030 | WASHER,SPRING | 1 |
3. 07161-10080 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-99-67760 | 707-98-39610 | 707-98-62120 |
| 707-99-59430 | 707-35-52780 | 707-98-38551 |
| 707-98-26560 | 707-99-64040 | 707-98-36600 |
| 707-98-26570 | 707-98-25870 | 707-98-36630 |
| 707-98-26580 | 707-98-38600 | 707-98-67100 |
| 707-51-12860 | 707-98-38520 | 707-98-67110 |
| 707-51-12110 | 707-51-20080 | 707-98-26441 |
5. FAQ
Q: What is the part number of this piston seal ring spare part?
A: This piston seal ring spare part carries part number 07161-10080 and belongs to piston seal ring category.
Q: Which construction machinery can part 07161-10080 be fitted to?
A: Part 07161-10080 is engineered for motor grader hydraulic cylinder assembly.
Q: What material is this piston seal ring manufactured from?
A: It is produced with MoS2 filled PTFE material with enhanced sliding property.
Q: What sealing function does this piston seal ring perform in hydraulic system?
A: It separates high pressure and low pressure oil chambers to prevent internal oil leakage across piston.
Q: Where is this piston seal ring mounted on the motor grader?
A: It is fitted inside piston groove of the motor grader steering hydraulic cylinder.
Q: What performance benefits does MoS2 filled PTFE bring?
A: It lowers friction coefficient and delivers stable lubrication under long continuous operation.
Q: Can this seal ring withstand pressure spikes during grader working cycles?
A: Yes, it can resist sudden pressure surges that often occur in road leveling work.
Q: What signs indicate that this piston seal ring needs replacement?
A: The grader steering will become sluggish and fail to maintain fixed angle during operation.
