07161-10100 0716110100 RING,PISTON OF GD655-3Y GD405A-2S
1. Quick Details of seal 07161-10100:
| Part NO. | 07161-10100 |
| Machine | Bulldozer |
| Size | OEM |
| Material | Bronze filled PTFE |
| Type | RING SEAL |

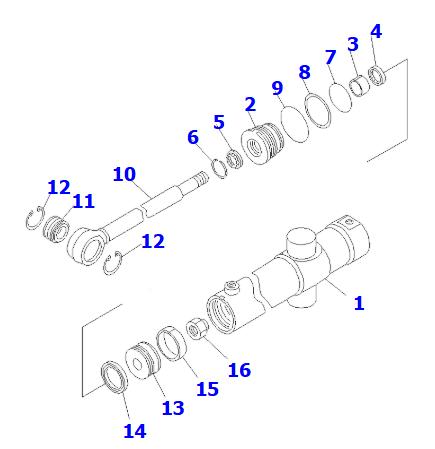

2. 07161-10100 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 238-63-19140 | CYLINDER | 1 |
| 2 | 707-29-10921 | HEAD,CYLINDER | 1 |
| 3 | 07177-05030 | BUSHING | 1 |
| 4 | 707-51-50210 | PACKING,ROD | 1 |
| 5 | 176-63-92240 | SEAL,DUST | 1 |
| 6 | 07179-00069 | RING,SNAP | 1 |
| 7 | 07000-12095 | O-RING | 1 |
| 8 | 07001-02095 | RING,BACK-UP | 1 |
| 9 | 07000-02100 | O-RING | 1 |
| 10 | 238-63-19120 | ROD,PISTON | 1 |
| 11 | 707-46-06010 | BUSHING | 1 |
| 12 | 04065-09030 | RING,SNAP | 2 |
| 13 | 707-36-10911 | PISTON | 1 |
| 14 | 07161-10100 | RING,PISTON | 1 |
| 15 | 07155-01025 | RING,WEAR | 1 |
| 16 | 07165-13336 | NUT | 1 |
3. 07161-10100 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-51-14110 | 707-98-25870 | 707-98-36630 |
| 707-51-14130 | 707-98-39610 | 707-98-66410 |
| 707-98-37130 | 707-98-39610 | 707-98-66410 |
| 707-98-37300 | 707-98-39611 | 707-98-67100 |
| 707-98-37500 | 707-98-39700 | 707-98-67110 |
| 707-99-64150 | 707-99-77250 | 707-51-95650 |
| 707-99-64152 | 707-99-77300 | 707-98-26441 |
5. FAQ
Q: Can you tell me the part number for this piston seal ring spare part?
A: This piston seal ring spare part has part number 07161-10100 and it belongs to piston seal ring category.
Q: What construction machinery is part 07161-10100 designed to fit?
A: Part 07161-10100 is manufactured for bulldozer hydraulic cylinder assembly.
Q: What raw material is this piston seal ring fabricated from?
A: It adopts bronze filled PTFE material with excellent wear and extrusion resistance.
Q: What sealing function does this piston seal ring perform inside the hydraulic cylinder?
A: It isolates oil pressure on two sides of piston and prevents internal hydraulic oil bypass.
Q: Where is this piston seal ring mounted on the bulldozer hydraulic cylinder?
A: It is fitted into the piston groove of bulldozer tilt hydraulic cylinder.
Q: What are the main performance strengths of bronze filled PTFE material?
A: It delivers low friction and maintains stable sealing under continuous heavy load operation.
Q: What pressure range can this piston seal ring withstand during daily work?
A: It can endure high working pressure generated in bulldozer earthmoving operations.
