07161-10110 0716110110 RING,PISTON OF D65A-11 D60A-11D
1. Quick Details of seal 07161-10110:
| Part NO. | 07161-10110 |
| Machine | Wheel Loader |
| Size | OEM |
| Material | PU |
| Type | RING SEAL |
2. 07161-10110 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 124-63-64342 | CYLINDER | 1 |
| 2 | 707-29-11940 | HEAD,CYLINDER | 1 |
| 3 | 07177-06030 | BUSHING | 1 |
| 4 | 707-51-60210 | PACKING,ROD | 1 |
| 5 | 707-35-91100 | RING,BACK-UP | 1 |
| 6 | 07000-12105 | O-RING | 1 |
| 7 | 07000-02110 | O-RING | 1 |
| 8 | 141-63-93270 | SEAL,DUST | 1 |
| 9 | 07179-12074 | RING,SNAP | 1 |
| 10 | 124-63-64320 | ROD,PISTON | 1 |
| 11 | 07137-04006 | BUSHING | 2 |
| 07137-00040 | SEAL,DUST | 2 | |
| 12 | 04065-09030 | RING,SNAP | 4 |
| 13 | 07000-03040 | O-RING | 4 |
| 14 | 707-36-11920 | PISTON | 1 |
| 15 | 07161-10110 | RING,PISTON | 1 |
| 16 | 07156-01112 | RING,WEAR | 1 |
| 17 | 07165-13638 | NUT | 1 |
| 18 | 07235-10315 | ELBOW | 1 |
| 19 | 07002-12034 | O-RING | 1 |

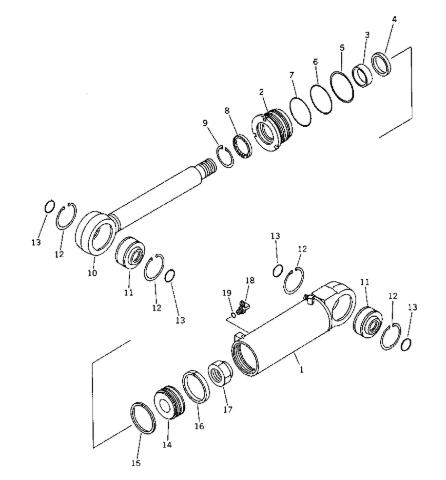

3. 07161-10110 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-51-14110 | 707-98-25870 | 707-98-36630 |
| 707-51-14130 | 707-98-39610 | 707-98-66410 |
| 707-98-37130 | 707-98-39610 | 707-98-66410 |
| 707-98-37300 | 707-98-26620 | 707-98-67100 |
| 707-98-37500 | 707-98-39700 | 707-98-67110 |
| 707-99-64150 | 707-99-77250 | 707-51-95650 |
| 707-99-64152 | 707-99-77300 | 707-98-26441 |
5. FAQ
Q: Could you tell me the part number of this piston seal ring product?
A: This piston seal ring product has part number 07161-10110 and belongs to piston seal ring category.
Q: What construction machine can part 07161-10110 be assembled on?
A: Part 07161-10110 is specially developed for wheel loader hydraulic cylinder assembly.
Q: What material is this piston seal ring made of?
A: It is produced from high toughness PU polyurethane sealing material.
Q: What main task does this piston seal ring take in the hydraulic cylinder system?
A: It blocks internal oil leakage across piston and keeps stable output force for loader bucket movement.
Q: Where is this piston seal ring installed on the wheel loader hydraulic cylinder?
A: It is fitted into the piston groove of wheel loader lift hydraulic cylinder.
Q: What performance advantages does PU polyurethane bring for this seal ring?
A: It offers outstanding tear resistance and good deformation recovery under frequent impact loads.
Q: What working temperature range can this PU piston seal ring adapt to?
A: It can operate steadily within normal working temperature of construction machinery hydraulic system.
Q: What trouble will occur if this piston seal ring gets damaged during operation?
A: The loader bucket will drop slowly and the lifting capacity will decrease obviously.
