07161-10120 0716110120 RING,PISTON OF D58P-1C D50A-18
1. Quick Details of seal 07161-10120:
| Part NO. | 07161-10120 |
| Machine | Motor Grader |
| Size | OEM |
| Material | Glass filled PTFE |
| Type | RING SEAL |

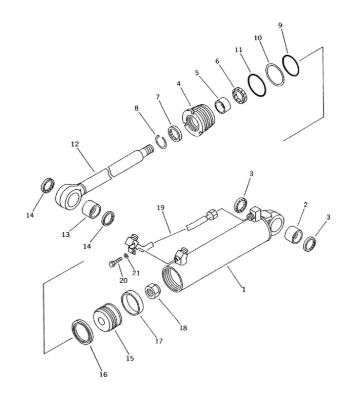

2. 07161-10120 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 2 | 07143-10606 | BUSHING | 1 |
| 3 | 07145-00060 | SEAL,DUST (KIT) | 2 |
| 4 | 707-29-12930 | HEAD,CYLINDER | 1 |
| 5 | 07177-06030 | BUSHING | 1 |
| 6 | 707-51-60210 | PACKING,ROD (KIT) | 1 |
| 7 | 07016-20608 | SEAL,DUST (KIT) | 1 |
| 8 | 07179-12074 | RING,SNAP | 1 |
| 9 | 07000-12115 | O-RING (KIT) | 1 |
| 10 | 707-35-91200 | RING,BACK-UP (KIT) | 1 |
| 11 | 07000-02120 | O-RING (KIT) | 1 |
| 12 | 13F-63-14120 | ROD,PISTON | 1 |
| 13 | 07143-10606 | BUSHING | 1 |
| 14 | 07145-00060 | SEAL,DUST (KIT) | 2 |
| 15 | 707-36-12930 | PISTON | 1 |
| 16 | 07161-10120 | RING,PISTON (KIT) | 1 |
| 17 | 07156-01215 | RING,WEAR (KIT) | 1 |
| 18 | 07165-13941 | NUT | 1 |
| 19 | 13F-63-13780 | TUBE,L.H. | 1 |
| 19 | 13F-63-13880 | TUBE,R.H. | 1 |
| 20 | 01010-51025 | BOLT | 2 |
| 21 | 01643-31032 | WASHER | 2 |
3. 07161-10120 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-51-14110 | 707-98-25870 | 707-98-36630 |
| 707-51-14130 | 707-98-39610 | 707-98-66410 |
| 707-98-37130 | 707-98-38600 | 707-98-66410 |
| 707-98-37300 | 707-98-39611 | 707-98-67100 |
| 707-98-37500 | 707-98-39700 | 707-98-67110 |
| 707-99-64150 | 707-99-77250 | 707-51-95650 |
| 707-99-64152 | 707-99-77300 | 707-98-26441 |
5. FAQ
Q: What is the part number for this piston seal ring?
A: This piston seal ring has part number 07161-10120 and belongs to piston seal ring category.
Q: What construction machinery can part 07161-10120 match with?
A: Part 07161-10120 is manufactured for motor grader hydraulic cylinder assembly.
Q: What material is this piston seal ring made of?
A: It is made of glass filled PTFE with strong compression and wear resistance.
Q: What is the main sealing function of this piston seal ring?
A: It separates high-pressure and low-pressure oil chambers to prevent internal oil leakage across piston.
Q: Where is this piston seal ring mounted on the motor grader?
A: It is installed in the piston groove of the motor grader lift hydraulic cylinder.
Q: What performance benefits does glass filled PTFE bring?
A: It reduces thermal expansion and keeps stable sealing under long-hour continuous grading work.
