07161-10160 0716110160 RING OF HD785-1L HD680-2
1. Quick Details of seal 07161-10160:
| Part NO. | 07161-10160 |
| Machine | Bulldozer |
| Size | OEM |
| Material | PTFE + FKM composite |
| Type | RING SEAL |

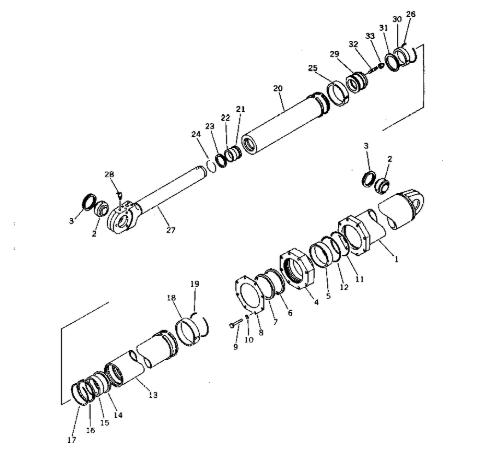

2. 07161-10160 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 568-63-23141 | CYLINDER | 1 |
| 2 | 569-63-22880 | BUSHING | 2 |
| 3 | 707-73-13010 | RING | 2 |
| 4 | 568-63-23130 | HEAD | 1 |
| 5 | 568-63-22190 | BUSHING | 1 |
| 6 | 568-63-22180 | PACKING | 1 |
| 7 | 568-63-22570 | SEAL | 1 |
| 8 | 568-63-23160 | PLATE | 1 |
| 9 | 01011-52010 | BOLT | 8 |
| 10 | 01602-22060 | WASHER | 8 |
| 11 | 07000-15250 | O-RING | 1 |
| 12 | 07001-05250 | RING | 1 |
| 13 | 568-63-23241 | CYLINDER | 1 |
| 14 | 568-63-22280 | PACKING | 1 |
| 15 | 568-63-22390 | BUSHING | 1 |
| 16 | 568-63-22670 | SEAL | 1 |
| 17 | 568-63-22770 | RING | 1 |
| 18 | 568-63-22480 | RING | 1 |
| 19 | 568-63-23270 | RING | 1 |
| 20 | 568-63-23341 | CYLINDER | 1 |
| 21 | 568-63-22380 | PACKING | 1 |
| 22 | 07177-01140 | BUSHING | 1 |
| 23 | 07016-01109 | SEAL | 1 |
| 24 | 07179-00135 | RING | 1 |
| 25 | 568-63-22580 | RING | 1 |
| 26 | 568-63-23370 | RING | 1 |
| 27 | 568-63-23122 | ROD | 1 |
| 28 | 07020-00675 | FITTING | 1 |
| 29 | 568-63-23171 | PISTON | 1 |
| 30 | 07155-01640 | RING | 1 |
| 31 | 07161-10160 | RING | 1 |
| 32 | 01124-82260 | STUD | 5 |
| 33 | 07165-12222 | NUT | 5 |
3. 07161-10160 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-51-14110 | 707-98-25870 | 707-98-36630 |
| 707-51-14130 | 707-98-39610 | 707-98-66410 |
| 707-98-37130 | 707-99-74450 | 707-98-66410 |
| 707-98-37300 | 707-98-39611 | 707-98-67100 |
| 707-98-37500 | 707-98-39700 | 707-98-67110 |
| 707-99-64150 | 707-99-77250 | 707-51-95650 |
| 707-99-64152 | 707-99-77300 | 707-98-26441 |
5. FAQ
Q: Please tell me the part number of this piston seal ring spare part.
A: This piston seal ring spare part has part number 07161-10160 and belongs to piston seal ring category.
Q: What construction machinery is part 07161-10160 designed to suit?
A: Part 07161-10160 is manufactured for bulldozer hydraulic cylinder assembly.
Q: What material is this piston seal ring made of?
A: It adopts PTFE and FKM composite material with outstanding oil and heat resistance.
Q: What is the primary sealing task of this piston seal ring?
A: It stops hydraulic oil bypassing the piston and keeps stable pressure for bulldozer blade movement.
Q: Where is this piston seal ring fitted on the bulldozer hydraulic cylinder?
A: It is embedded into the piston groove of bulldozer main lift hydraulic cylinder.
Q: What performance merits does PTFE+FKM composite material bring?
A: It maintains good sealing elasticity even when exposed to high-temperature hydraulic oil.
Q: What harsh working site conditions can this piston seal ring cope with?
A: It works reliably under dusty construction sites with frequent pressure fluctuations.
