703-06-95122 7030695122 SEAL,SLIPPER OF CD30R-1 PC38UU-3
1. Quick Details of seal 703-06-95122:
| Part NO. | 703-06-95122 |
| Machine | Excavator |
| Size | OEM |
| Material | PTFE + NBR composite |
| Type | RING SEAL |

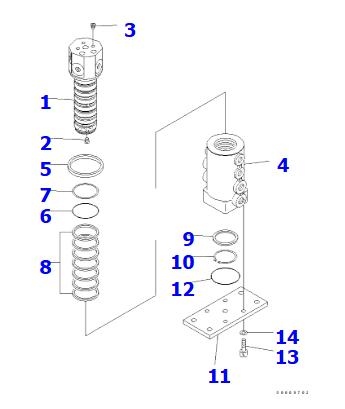

2. 703-06-95122 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 703-06-92150 | SHAFT,SWIVEL | 1 |
| 2 | 703-13-98930 | PLUG | 4 |
| 3 | 703-13-98920 | PLUG | 3 |
| 4 | 703-06-91142 | ROTOR | 1 |
| 5 | 703-06-98110 | SEAL,OIL | 1 |
| 6 | 703-06-96010 | RING | 1 |
| 7 | 703-06-98320 | RING,BACK UP | 1 |
| 8 | 703-06-95122 | SEAL,SLIPPER | 7 |
| 9 | 703-06-94110 | RING | 1 |
| 10 | 04064-05520 | RING,SNAP | 1 |
| 11 | 703-06-93150 | COVER | 1 |
| 12 | 07000-12075 | O-RING | 1 |
| 13 | 01252-61035 | BOLT | 4 |
| 14 | 01643-31032 | WASHER | 4 |
3. 703-06-95122 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-51-14110 | 707-98-25870 | 707-98-36630 |
| 707-98-38510 | 707-98-64400 | 707-98-66410 |
| 707-98-26600 | 707-98-64410 | 707-98-66410 |
| 707-98-38551 | 707-98-64420 | 707-99-46200 |
| 707-98-38600 | 707-98-64450 | 707-98-67110 |
| 707-99-64150 | 707-99-77250 | 707-51-95650 |
| 707-99-64152 | 707-99-77300 | 707-98-26441 |
| 707-99-67310 | 707-98-39700 | 707-98-67110 |
5. FAQ
Q: Could you tell me the part number of this piston seal ring?
A: This piston seal ring’s part number is 703-06-95122 and it belongs to piston seal ring category.
Q: What construction machine is part 703-06-95122 compatible with?
A: Part 703-06-95122 is specially manufactured for excavator swivel joint hydraulic assembly.
Q: What material is this piston seal ring made of?
A: It is made of PTFE and NBR composite material with balanced elasticity and wear resistance.
Q: What is the core function of this piston seal ring in the swivel joint?
A: It prevents hydraulic oil leakage between rotating and stationary parts and maintains stable oil supply for excavator movements.
Q: Where is this piston seal ring installed on the excavator?
A: It is fitted inside the piston groove of the excavator central swivel joint.
Q: What performance advantages does PTFE+NBR composite bring for swivel joint application?
A: It offers low friction for continuous rotation and good sealing performance under frequent pressure changes.
Q: What working medium can this piston seal ring work with?
A: It is suitable for standard mineral hydraulic oil widely used in excavator hydraulic systems.
Q: What malfunction will appear once this piston seal ring wears out?
A: The excavator will have slow rotation action and internal oil leakage at the central swivel joint.
