703-06-95121 7030695121 SEAL,SLIPPER OF PC40R-8 PC50UU-2
1. Quick Details of seal 703-06-95121:
| Part NO. | 703-06-95121 |
| Machine | Excavator |
| Size | OEM |
| Material | Glass filled PTFE |
| Type | RING SEAL |

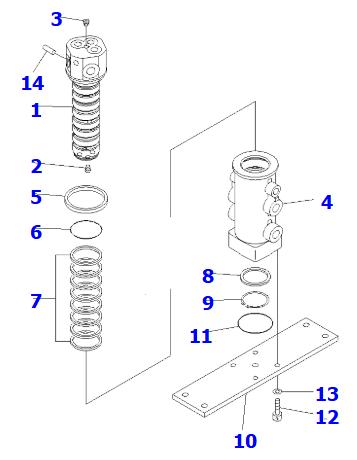

2. 703-06-95121 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 703-06-92110 | SHAFT,SWIVEL | 1 |
| 2 | 703-08-98510 | PLUG | 4 |
| 3 | 703-09-98710 | PLUG | 1 |
| 4 | 703-06-91110 | ROTOR | 1 |
| 5 | 703-06-98110 | SEAL,OIL | 1 |
| 6 | 07000-15060 | O-RING | 1 |
| 7 | 703-06-95122 | SEAL,SLIPPER | 8 |
| 7 | 703-06-95121 | SEAL,SLIPPER | 8 |
| 8 | 703-06-94110 | RING | 1 |
| 9 | 04064-05520 | RING,SNAP | 1 |
| 10 | 703-06-93110 | COVER | 1 |
| 11 | 703-06-98310 | O-RING | 1 |
| 12 | 01252-31035 | BOLT | 4 |
| 13 | 01643-31032 | WASHER | 4 |
| 14 | 703-06-98230 | PIN | 1 |
3. 703-06-95121 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-51-14110 | 707-98-25870 | 707-98-36630 |
| 707-98-38510 | 707-98-64400 | 707-98-66410 |
| 707-98-38520 | 707-98-64410 | 707-98-66410 |
| 707-98-38551 | 707-98-37670 | 707-99-46200 |
| 707-98-38600 | 707-98-64450 | 707-98-67110 |
| 707-99-64150 | 707-99-77250 | 707-51-95650 |
| 707-99-64152 | 707-99-77300 | 707-98-26441 |
| 707-99-67310 | 707-98-39700 | 707-98-67110 |
5. FAQ
Q: What is the part number of this piston seal ring spare component?
A: This piston seal ring spare component has part number 703-06-95121 and it belongs to piston seal ring category.
Q: What construction machinery does part 703-06-95121 match for assembly?
A: Part 703-06-95121 is specially engineered for excavator central swivel joint hydraulic assembly.
Q: What material is this piston seal ring made from?
A: It is manufactured from glass filled PTFE material with good compression resistance and low creep property.
Q: What is the main sealing function of this piston seal ring inside the swivel joint?
A: It isolates hydraulic oil passages inside the swivel joint and prevents internal cross leakage during machine rotation.
Q: Where will this piston seal ring be installed on the excavator?
A: It is fitted into the piston groove of the excavator central swivel joint hydraulic section.
Q: What performance advantages does glass filled PTFE bring for swivel joint application?
A: It maintains stable dimension under continuous rotation and reduces wear when the excavator swings back and forth.
Q: What pressure fluctuation can this piston seal ring handle during operation?
A: It can adapt to variable hydraulic pressure when the excavator carries out digging and swing work.
