707-44-45070 7074445070 Ring, Piston OF HM400-3 HM400-5
1. Quick Details of seal 707-44-45070:
| Part NO. | 707-44-45070 |
| Machine | Truck |
| Size | OEM |
| Material | Glass and Molybdenum filled PTFE |
| Type | RING SEAL |

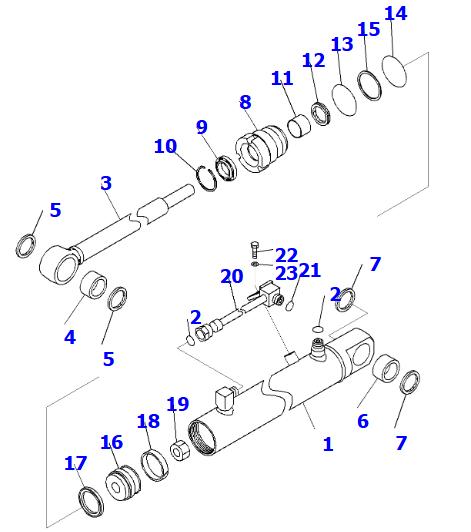

2. 707-44-45070 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 707-11-45040 | Cylinder | 1 |
| 2 | 02896-11008 | O-ring, (Kit : K10) | 2 |
| 3 | 707-58-25960 | Rod, Piston | 1 |
| 4 | 20A-70-11860 | Bushing | 1 |
| 5 | 20A-70-12211 | Seal, Oil, (Kit : K10) | 2 |
| 6 | 20A-70-11860 | Bushing | 1 |
| 7 | 20A-70-12211 | Seal, Oil, (Kit : K10) | 2 |
| 8 | 707-29-45010 | Head, Cylinder | 1 |
| 9 | 707-56-25740 | Seal, Dust, (Kit : K10) | 1 |
| 10 | 07179-12037 | Ring, Snap | 1 |
| 11 | 707-52-10251 | Bushing | 1 |
| 12 | 707-51-25210 | Packing, Rod, (Kit : K10) | 1 |
| 13 | 707-34-50030 | O-ring, (Kit : K10) | 1 |
| 14 | 07000-13040 | O-ring, (Kit : K10) | 1 |
| 15 | 707-35-52370 | Ring, Back-up, (Kit : K10) | 1 |
| 16 | 707-36-45030 | Piston | 1 |
| 17 | 707-44-45070 | Ring, Piston, (Kit : K10) | 1 |
| 18 | 707-39-45010 | Ring, Wear, (Kit : K10) | 1 |
| 19 | 707-67-16020 | Nut | 1 |
| 20 | 707-86-22190 | Tube | 1 |
| 21 | 02896-11008 | O-ring, (Kit : K10) | 1 |
| 22 | 01010-80816 | Bolt | 1 |
| 23 | 01643-30823 | Washer | 1 |
3. 707-44-45070 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-51-14110 | 707-98-25920 | 707-98-36630 |
| 707-98-38500 | 707-98-62131 | 707-98-66410 |
| 707-98-38510 | 707-98-64400 | 707-98-66410 |
| 707-98-38551 | 707-98-64420 | 707-98-67100 |
| 707-98-38600 | 707-98-64450 | 707-98-67110 |
| 707-99-67610 | 707-99-77250 | 707-51-95650 |
| 707-99-64152 | 707-99-77300 | 707-98-26441 |
5. FAQ
Q: Could you tell me the part number of this piston seal ring spare part?
A: This piston seal ring spare part has part number 707-44-45070 and it belongs to piston seal ring category.
Q: What construction machinery does part 707-44-45070 fit for assembly?
A: Part 707-44-45070 is specially manufactured for articulated dump truck hydraulic cylinder assembly.
Q: What raw material is this piston seal ring made from?
A: It is made of glass and molybdenum filled PTFE material with good wear resistance and self-lubricating performance.
Q: What is the core sealing function of this piston seal ring?
A: It maintains pressure difference on both sides of piston and prevents internal hydraulic fluid bypass inside the hydraulic cylinder.
Q: Where is this piston seal ring installed on the articulated dump truck?
A: It is fitted inside the piston groove of the dump truck hoist hydraulic cylinder.
Q: What advantages does glass moly filled PTFE bring for dump truck heavy load work?
A: It can resist extrusion damage and keep stable dimension under frequent lifting and dumping cycles.
