Sewage Pneumatic Diaphragm Pump
Sewage pneumatic diaphragm pump, pneumatic operated diaphragm pump PTFE, Al-alloy
Descriptions
Our pnematic diaphragm pump are designed with fewer parts than competitive air pumps. It is one type of air operated double diaphragm pumps features our stall-free, low pulsation air valve, which is externally accessible—ensuring rapid changeovers and minimum downtimes.
- Self priming
- Dry proof
- High suction capacity
- No electric components
- Discharge outlet with protection
- Solid external sturcture
- Vast compatibility of fluid media
- Reduced internanal volume minimize the waste and easily clean
- Stainless steel bolt are corrosion resistant, and offer you reasonable positioing and conveniently reassemble
- Unique designed three way control valve ensure no block operation, easily parts maintenance, no need lubrication for air pipeline
- Worn resistance parts ensures precisely positioning of stem and fast replacement
Technical data sheet
| Model |
Max flow (LPM) |
Head(m) |
Suction H (m) |
Out P (kg) |
In/out dia(mm) |
Air in dia(in) |
Max particle dia (mm) |
| RQB3-10 | 22 | 70 | 4.0 | 7 | 10 | 1/4 | 1.5 |
| RQB3-15 | 22 | 70 | 4.0 | 7 | 15 | 1/4 | 1.5 |
| RQB3-20 | 57 | 70 | 4.0 | 7 | 20 | 1/4 | 2.5 |
| RQB3-25R | 57 | 70 | 4.5 | 7 | 25 | 1/4 | 2.5 |
| RQB3-25A | 116 | 84 | 5.48 | 8.4 | 25 | 1/2 | 3.2 |
| RQB3-32 | 151 | 84 | 5.48 | 8.4 | 32 | 1/2 | 3.2 |
| RQB3-40 | 151 | 84 | 5.48 | 8.4 | 40 | 1/2 | 3.2 |
| RQB3-50 | 378.5 | 5.48 | 8.4 | 50 | 1/2 | 4.8 | |
| RQB3-65 | 378.5 | 84 | 5.48 | 8.4 | 65 | 1/2 | 4.8 |
| RQB3-80 | 568 | 84 | 5.48 | 8.4 | 80 | 1/2 | 6.4 |
| RQB-100 | 568 | 84 | 5.48 | 8.4 | 100 | 1/2 | 6.4 |
| RQB-125 | 1041 | 84 | 2.4-7.6 | 8.4 | 125 | 3/4 | 9.4 |
| RFQ-25 | 116 | 84 | 5.48 | 8.4 | 25 | 1/2 | 3.2 |
| RFQ-40 | 378.5 | 84 | 5.48 | 8.4 | 40 | 1/2 | 4.8 |
| RFQ-50 | 568 | 84 | 5.48 | 8.4 | 50 | 1/2 | 6.4 |
| RFQ-80 | 1041 | 84 | 2.4-7.6 | 8.4 | 80 | 3/4 | 9.4 |
Air compressor recommendation & filter press
| Model | Air consumption (m3/min) | Power of compressor | Filter press capacity (m2) |
| RQB3-10/15 | 0.18 | 2.2 | 10-20 |
| RQB3-20/25 | 0.36 | 3 | 10-20 |
| RRQ3-25 | 0.67 | 5.5 | 30-40 |
| RQB3-25A | 0.67 | 5.5 | 30-40 |
| RQB3-32/40 | 0.67 | 5.5 | 30-40 |
| RFQ3-40 | 0.9 | 7.5 | 50-60 |
| RQB3-50/65 | 0.9 | 7.5 | 50-60 |
| RFQ3-50 | 1.5-2 | 11-15 | 60-100 |
| RQB3-80/100 | 1.5-2 | 11-15 | 60-100 |
| RFQ3-80 | 3.0 | 18.5-22 | 100-120 |
| RQB3-125 | 3.0 | 18.5-22 | 100-120 |
Features

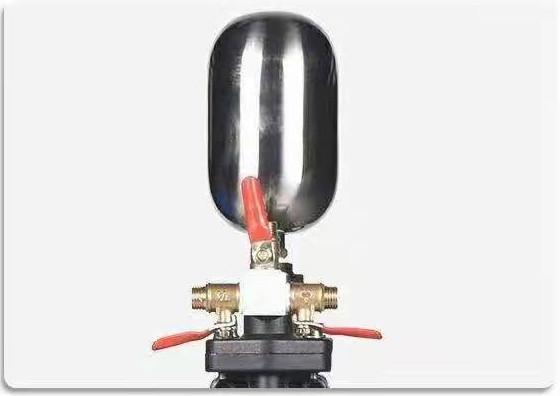

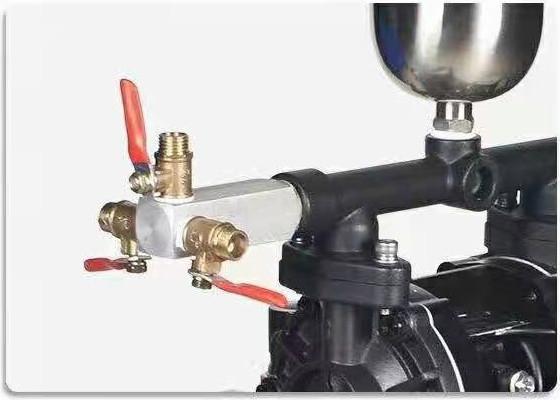

One diaphragm pump for two guns stainless steel air tank

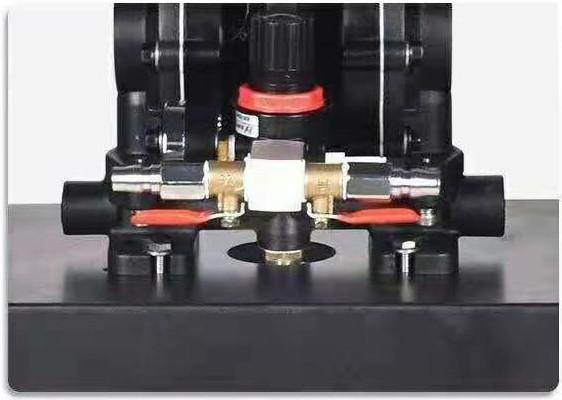

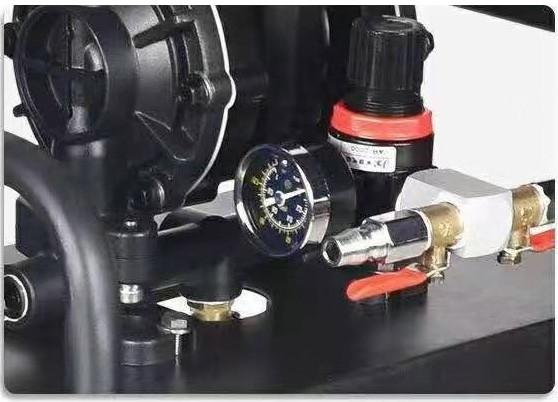

High pressure brass ball valve High quality pressure adjust valve
Applications:
| Waste water treatment, sludge, screening | Effluent treatment plant | Pharmaceutical feeds, transfer |
| Automotive wash, lube, oil | Ceramics mix & cast, glaze | Chemical injection, process |
| Pulp & paper batching, bleaching | Construction coating, dewatering | Food processing transfer, packaging |
| Marine bilge, cleaning | Mining utility, dewatering | Oil & gas transfer, clean up |
Comptetitve advantage
The air-driven double diaphragm transfer pumps. No electrical components are required because the pumps are air-driven. RD series pumps are run-dry safe and self-priming. The pump capacity can be controlled by changing the pressure in the air supply. The air control is designed for oilfree operation. The RD series pumps are ideally suited for the transport of liquid chemicals. It transports media at up 6,700 l/h and up to a discharge lift of 70 m.
As the pump capacity is highly dependent on the back pressure, the performance curve must always be observed. At the sametime, the differential pressure between the hydraulic and pneumatic sides should not exceed 2 bar. Higher values reduce the service life of the pump. When selecting pumps, check the material compatibility. In addition, consider the density, viscosity and temperature of the transported medium.
