Product name:

Underground Low Voltage Cold Shrink Cable Accessories For Breakout Terminal

Product description:

The Cold Shrink Silicone Rubber 3,4,5,6/C (3,4,5,6 conductor) Cable Breakout are a series of open-ended molded silicone rubber sealing assemblies that are factory expanded and mounted on removable inner supporting plastic cores. They are supplied for field installation in a pre-stretched condition. The supporting cores are removed after the seal has been positioned for installation around the breakout area of a 3,4,5,6/C (3,4,5,6 conductor) cable. Core removal allows the silicone rubber to shrink down to a predetermined diameter, creating an environmental enclosure for individual cable phase legs and overall cable jacket.

Features:

• Good expanding strength and toughness, to ensure that the cable installation of the tube does not appear broken phenomenon;
• Good low temperature brittleness, can be installed in the Arctic area, no broken;
• Good high temperature resistance, can be in the hot area, product no deformation;
• Strict quality control, all use fresh raw materials, reliable quality;

Our advantage:

• Free samples,we can offer free samples ,if you pay for shipping fee
• OEM/ODM we can change the label according to your design
• Best after sales service,we provide detail packing photos and good commnucation during whole production.

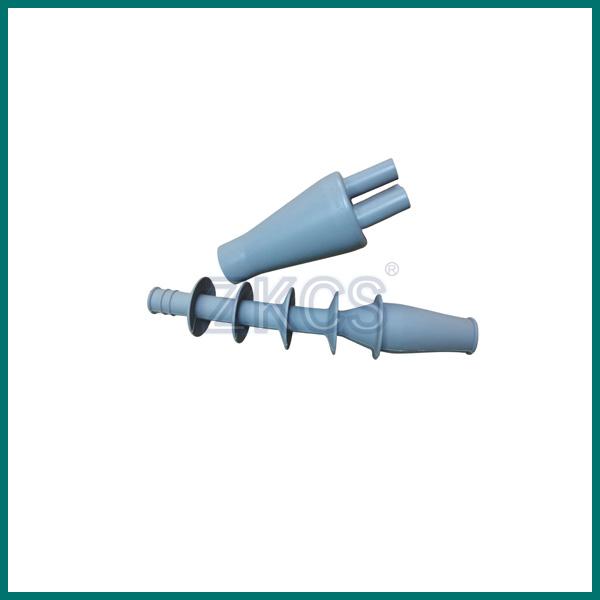

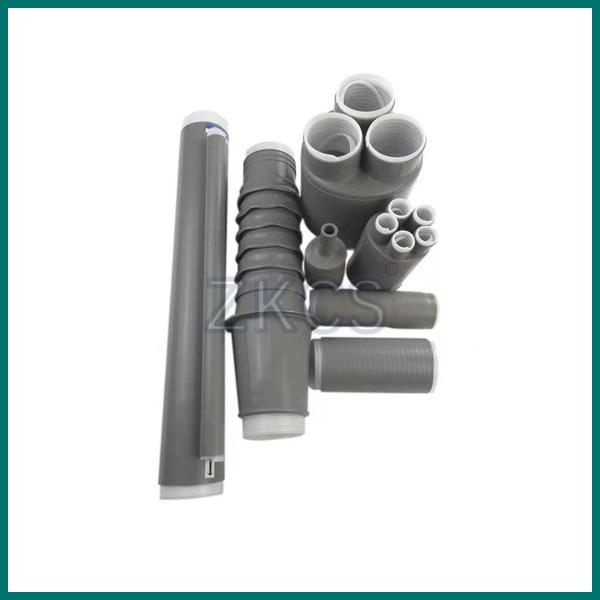

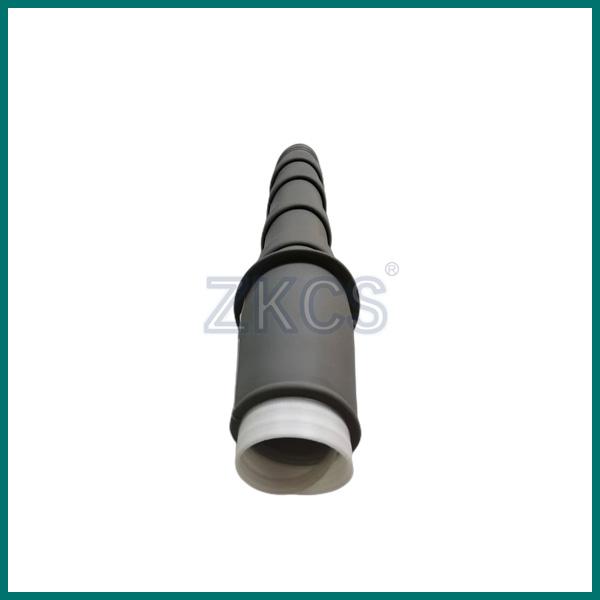

Picture for your reference:

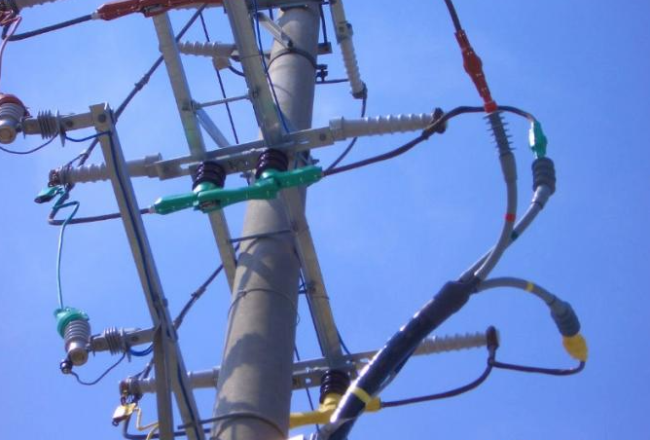

• Applicable scope

  Silicon cold shrink tube: It is widely used for waterproof seal in coaxial cables on telecommunication base stations, N-type connector, 1/2 jumper, Din head and 1/2 jumper connector. It can be used as a waterproof seal for cable television connector, connecting wires and cables, insulation seal for other types of connection.

  Rubber Typical Properties




  Properties	Test Method	Typical Value
  Color	/	Black
  Ultimate Tensile	ASTM D412-75	9.0MPa
  Ultimate Elongation	ASTM D412-75	750%
  Tear Resistance	ASTM D624C-73	30KN/m
  Fungus Resistance	ASTM G21 28 days exposure	No Growth
  Dielectric Strength	ASTM D149-75 @1.75 Original	21KV/m
  	7days in water at 90℃	20.5KV/m
  Volume resistance	ASTM D257	3.4×1015Ohm.cm




  All values are averages and are not intended for specification purposes.

  FAQ

  1. Who are we?
  We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.

  2. How can we guarantee quality?
  Always a pre-production sample before mass production;
  Always final Inspection before shipment;

  3.What can you buy from us?
  cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.

  4. Why should you buy from us not from other suppliers?
  Years focus on telecom and power infrastructure material, with experienced engineer and workers,

  5:Do you offer samples?

  yes,we do providing free samples ,Call me get free sample to vertify our quality and performance.
