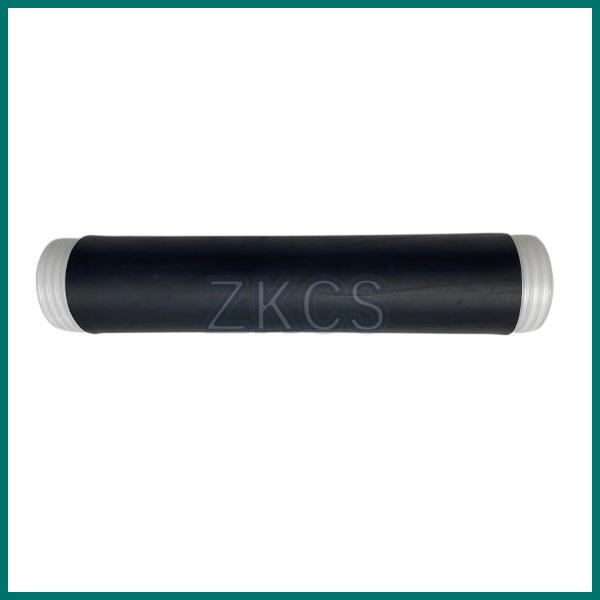

EPDM Cold Shrink tube for sealing of conduit couplings and conduit-to-cable breakouts
Description:
Black EPDM epdm cold shrink tubing for electrical insulation and watertight sealing of cable connections,
which are made of EPDM rubber sleeve which is expanded onto a removable core. When the core is removed the EPDM rubber will return to its original size. FiloShrink offers a good mechanical protection, electrical insulation and watertight sealing of cable connections.
Features:
*It is more resistant to weather,ultraviolet aging,and does not become brittle after long term use.
*Compared with silicone cold shrink tubes,it is more resistant to punctures ,waterproof ,acid and alkali
*No gaps and tight sealing
*The sealing effect is still excellent.
Application:
It is used for the power electric,telecommunication industry or other tool product handles,such as bicycle handles,etc.With good performance,waterproof ,acid and alkali resistance,sealing,protective sleeve and low-voltage sealing insulation below 1KV.
| Model | Inner Diameter | After shrink length | Cable range Min.dia(mm) | Cable range Max.dia(mm) |
| EPDM-csp-25-150 | 25mm | 150mm | 10.1 | 20.9 |
| EPDM-csp-25-203 | 25mm | 203mm | 10.1 | 20.9 |
| EPDM-csp-32-279 | 32mm | 279mm | 13 | 27 |
| EPDM-csp-35-279 | 35mm | 279mm | 13.9 | 30.1 |
| EPDM-csp-40-305 | 40mm | 305mm | 17.5 | 33 |
| EPDM-csp-53-152 | 53mm | 152mm | 20 | 46 |
| EPDM-csp-53-305 | 53mm | 305mm | 20 | 46 |
| EPDM-csp-58-250 | 58mm | 250mm | 24 | 49.3 |
| EPDM-csp-58-305 | 58mm | 305mm | 24 | 49.3 |
| EPDM-csp-77-305 | 77mm | 305mm | 32.2 | 67.8 |
| EPDM-csp-77-457 | 77mm | 457mm | 32.2 | 67.8 |
| EPDM-csp-105-229 | 105mm | 229mm | 42.6 | 93.7 |
| EPDM-csp-105-457 | 105mm | 457mm | 42.6 | 93.7 |
Technical data
| No. | Item | Test Method | Test standard | Remarks |
| 1 | Color | Black | ||
| 2 | Hardness(Shore A) | ISO 7619-1:2010 | 43±5Shore A | |
| 3 | Tensile strength | GB/T528-2009 | >8Mpa | |
| 4 | Break elongation | GB/T528-2009 | 800±150% | |
| 5 | Tear strength | GB/T528-2009 | 38±5 KN/mm | |
| 6 | Volume resistivity | / | / | >1*1012ohm-cm |
| 7 | Dieletric constant | / | / | <5.0 |
Black 1kv Low Voltage EPDM Cold Shrink Sleeve for cable sealing in power industy
