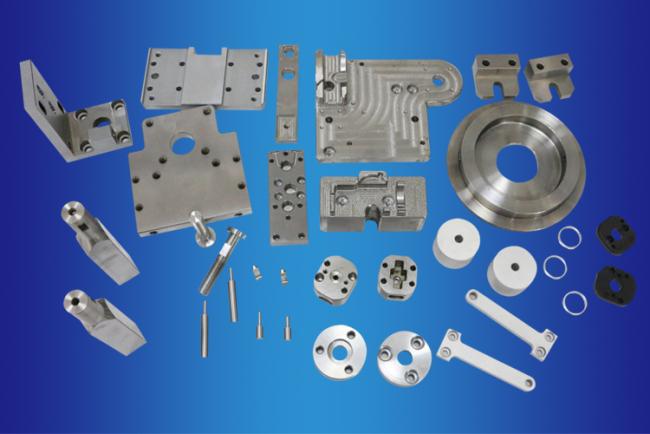

CNC Machining Precision Jig Fixture Components 5 Years Warranty
CNC Machining Durable Precision Jip Fixtures On The Production Line
Detail:
|
Software/format
|
PRO/E, Auto CAD, Solid works, IGS, UG, CAD/CAM/CAE
|
|
Tolerance
|
0.01~0.05mm, can customize as per request.
|
|
Dimension
|
Customized
|
|
Test equipment
|
Measurement instrument, projector, CMM, Altimeter, Micrometer, Thread Gages, Calipers, Pin guage etc.
|
|
Processing
|
CNC turning, milling, drilling, auto lathe, tapping, bushing, surface treatment, anodized, casting ,injection,3D printing,etc.
|
|
Our Advantages
|
1.) 24 hours online service & quickly quote/delivery.
2.) 100% QC quality inspection before delivery, can provide quality
inspection form. 3.) 15+ years of experience in the CNC machining area and have a senior design team to offer perfect modification suggestions.
|
Fixtures are widely used as below:
Flat-Surface Machining
• Milling fixtures
• Surface-grinding fixtures
• Planing fixtures
• Shaping fixtures
Cylindrical-Surface Machining
• Lathe fixtures
• Cylindrical-grinding fixtures
Irregular-Surface Machining
• Band-sawing fixtures
• External-broaching fixtures
INTERNAL-MACHINING APPLICATIONS:
Cylindrical- and Irregular-Hole Machining
• Drill jigs
• Boring jigs
• Electrical-discharge-machining fixtures
• Punching fixtures
• Internal-broaching fixtures
NON-MACHINING APPLICATIONS:
Assembly
• Welding fixtures
• Mechanical-assembly fixtures
(Riveting, stapling, stitching, pinning, etc.)
• Soldering fixtures
Inspection
• Mechanical-inspection fixtures
• Optical-inspection fixtures
• Electronic-inspection fixtures
Finishing
• Painting fixtures
• Plating fixtures
• Polishing fixtures
• Lapping fixtures
• Honing fixtures
Miscellaneous
• Layout templates
• Testing fixtures
• Heat-treating fixtures
