Safety Protection Comfortable Rubber EPDM Granule For Playground Iaaf Running Track
Safety Protection Good Quality Comfortable Rubber EPDM Granule For Playground, Iaaf Running Track
Product features
Non-toxic and harmless,meet the environment protection requirements.
Comfortable elasticity,prevent people from gtting hurt when they exercise.
High resilient floor effectively reduces noise caused by shoes and ground collision to avoid interference of walking.
Color:
runway red,runway green,yellow,orange,putty,grass green,
siliver grey,purple,brown,blue and on request
Special applications:
Golf Walkways and Driving Ranges
Swimming pools (Inside and Surrounding)
Ship Deckings
Commercial Flooring
Sports Stadia (Club Colours can be matched)
Main Description:
EPDM rubber, the main characteristics of EPDM is the superior oxidation resistance, ozone resistant and anti erosion ability. Due to the polyolefin family of EPDM rubber, It has excellent curing characteristics. In all the rubber, EPDM has the lowest proportion. It can absorb a large amount of filler and oil and do not affect the properties.
Packing in 25 Kg/ bag, 40bags/pallet
and can shipped on the pallet with a maximum of 40 bags per pallet.
A 20' GP container can load 20 tons
Physical properties data
| Serial number | Test project | Standard requirements | Test results | Judge |
| 1 | Compession recovery rate,% | 90 | 98.5 | Qualified |
| 2 | The springback value,mm | 20 | 26 | Qualified |
| 3 | Hardness | 30-50 | 47 | Qualified |
| 4 | The tensile strength,mpa≥ | 0.5 | 1.74 | Qualified |
| 5 | Tensile elongation,%≥ | 90 | 103.6 | Qualified |
| 6 | Flame retardant level | I | I | Qualified |
The harmful and toxic substances limits standard of the products
| Serial number | Test project | Standard requirements | Test results | Judge | |
| 1 | Benzene,g/kg≤ | 0.05 | Nought | Qualified | |
| 2 | Btx,g/kg≤ | 0.05 | Nought | Qualified | |
| 3 | Toluene diisocyanate,%≤ | 0.2 | Nought | Qualified | |
| 4 | Soluble heavy metal,mg/kg | Pb≤ | 90 | Nought | Qualified |
| Cd≤ | 10 | 2.7 | Qualified | ||
| Cr≤ | 10 | 3.5 | Qualified | ||
| Hg≤ | 2 | Nought | Qualified | ||
Product specification:
1 Raw material: Supreme EPDM and other components
2 Rubber granule content : 14%, 20%, 22%, 25%, 35%, 40% etc. (we guarantee no less than or more than the requested EPDM content)
Standard Sizes of EPDM granule
0.5 - 1.5 mm
1.0 - 2.0 mm
1.0 - 2.5 mm
1.0 - 4.0 mm
1.0 - 3.5 mm
0.5 - 2.0 mm (mainly for Infill)
0.5 - 2.5 mm (mainly for Infill)
Special sizes and colours are also available to meet customer specifications
FAQ
1. What are the options base foundation of running track.?
The ground is based on asphalt or concrete.
2. Why we have to buy products from you?
we are factory of more than 10years experiences in producing running track materials, products are of high quality and competitive price. And we have professional sales team for export market and also excellent technical team, can provide best service and support to your project, help you to promote your business with good job.
3. Can we get installation support ?
We can provide installation documents such as installation process and technical files. If client need, we can also send installation engineers to client’s side for installation guidance and teach your team per request.

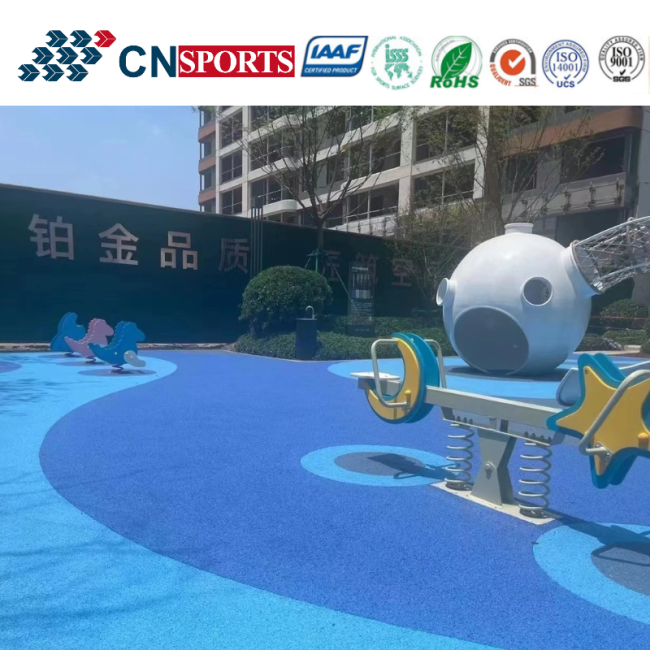

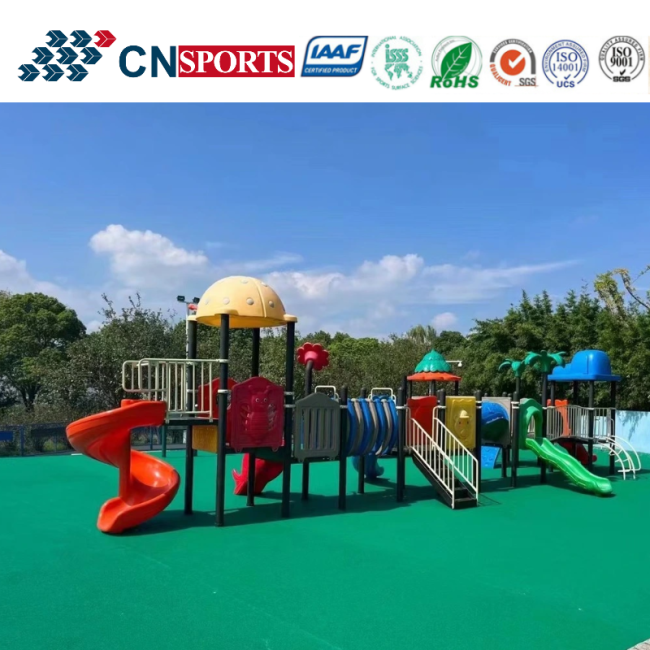

Pictures for reference
