13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
Excellent performance
It's a design based on human kinetics and physical characteristics flooring system, with hard top layer combined with soft rebound cushion lower layer structure. It's suitable to lay on concrete or asphalt substrates. The cushion layer is formed by single component modified polyurethane and top up with two-component modified acrylic resilience layer
Physical properties data
| No. | Test project | Standard requirements |
CN-S05F | CN-S05T | CN-S05H | CN-S05Z | Judge |
| 1 | Shock absorption rate,% | 30-50 | 38.9 | 39.2 | 39.3 | 40.1 | Qualified |
| 2 | Vertical deformation,mm | 0.6-2.5 | 1.74 | 2.02 | 2.40 | 2.4 | Qualified |
| 3 | Anti-slide value,BPN20℃≥ | 47 | 57 | 57 | 56 | 57 | Qualified |
| 4 | Tensile strength,Mpa ≥ | 0.5/0.4 permeable type | 0.8 | 0.4 | 0.62 | 0.51 | Qualified |
| 5 | Tensile elongation,% ≥ | 40 | 76.7 | 46 | 54.3 | 52.8 | Qualified |
| 6 | Flame retardant level | I | I | I | I | I | Qualified |
| 7 | Thickness,mm | 13 | 13.1 | 13.0 | 13.1 | 13.0 | Qualified |
| No. | Test project | Standard requirements |
CN-S05F | CN-S05T | CN-S05H | CN-S05Z | Judge |
| 1 | Benzene,g/kg ≤ | 0.05 | nought | nought | nought | nought | Qualified |
| 2 | BTX,g/kg ≤ | 0.05 | nought | nought | nought | nought | Qualified |
| 3 | Toluene diisocyanate,% ≤ | 0.2 | nought | nought | nought | nought | Qualified |
| 4 | Soluble heavy metal,mg/kg Pb ≤ | 90 | nought | nought | nought | nought | Qualified |
| 5 | Soluble heavy metal,mg/kg Cd ≤ | 10 | 2.4 | 2.0 | 1.9 | 2.8 | Qualified |
| 6 | Soluble heavy metal,mg/kg Cr ≤ | 10 | 3.2 | 3.1 | 3.4 | 3.4 | Qualified |
| 7 | Soluble heavy metal,mg/kg Hg ≤ | 2 | nought | nought | nought | nought | Qualified |
Different system for charateristics:
Spray coating:Price competitive , permeable and surface paint by machine, more suitable for school or practice project
Sandwich sytem: EPDM broad be handwork,is professional than spray coat,most pouplar in the world market.
Full pour System: Best quality, bottom layer is PU with less sbr granules mix. Suitable for professional games and international school.
FAQ
1. Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year. For all the products we produce by ourselves and with our own logo.
2. What kind of certificate you have?
We have certificate of RoHS,ISSS,CE,ITF2,ITF5,IAAF, ISO9001 and ISO14001,SGS, ASG,etc and can export our products all over the world.
3. What is the installation method?
1) We can offer you installation instructions, you can fix by yourself.
2) You can come to visit our factory to and learn from our technician.
3. What are the options for the base construction of a running track?
Based on asphalt or concrete.
4. What is the life Span for Running track?
10-15years.

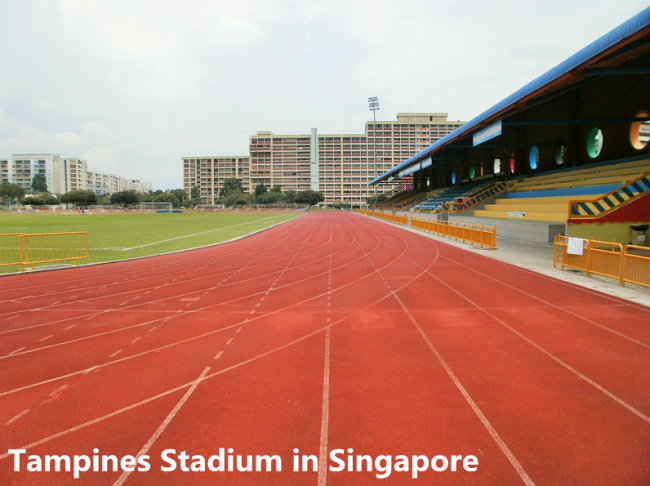

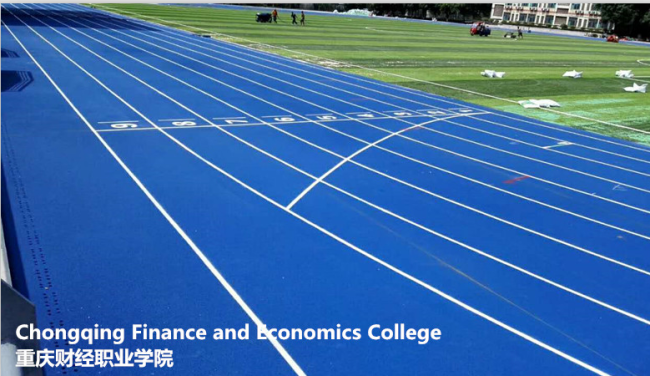

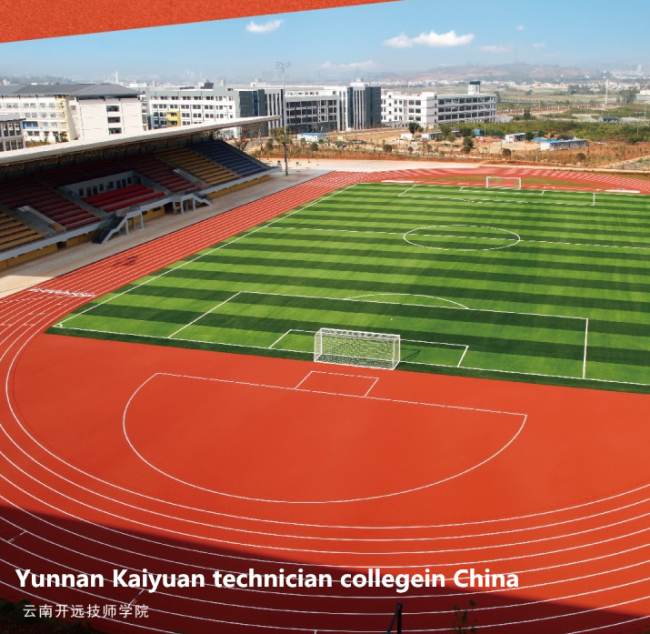

Project cases for reference:
