Basketball Courts Volleyball Playground Sports Surface Silicon PU Rubber Flooring
Basketball Courts Volleyball Playground Sports Surface Silicon PU Rubber Flooring
Production Description
The purpose of building sports courts is to ensure a professional, safe, healthy sports condition-the characteristics of hardness will bring the professional sporting feeling; the cushion effectively increasing the shock absorption and reduce the incidence of injuries to ankles, joints and ligaments. At the same time, it should reduce abrasion caused by falling and accident.
It’s a design based on human kinetics and physical characteristics flooring system, with hard top layer combined with soft rebound cushion lower layer structure. It’s suitable to lay on concrete or asphalt substrates. The cushion layer is formed by single component modified polyurethane and top up with two-component modified acrylic resilience layer.
Standard of Sports Performance
| Item | test project | technical requirements | test results |
| 1 | Shock absorption rate (%) | Fr≥12 | 21 |
| 2 | The springback value(%) | ≥20 | 30 |
| 3 | Sliding friction coefficient | 0.4≤u≤0.7 | 0.53 |
| 4 | Compression recovery rate(%) | ≥95 | 97 |
| 5 | Hardness(Shore A),20℃ | 60-80 | 68 |
Environmental Performance Standard
Based on considerations of social environmental security responsibility
Perform interior decoration decorate material national mandatory standard, do real non-toxic harmless green material.
Standard Testing Result of SPU
| Item | test project | technical requirements | test results | |
| 1 | Volatile organic compounds(VOC)(g/L) | ≤670 | 91 | |
| 2 | benzene(%) | ≤0.3 | Did not check out | |
| 3 | Toluene ＋xylene＋ ethyl benzene(%) | ≤30 | 5 | |
| 4 | The free diisocyanate(TDI＋HDI)(%) | ≤0.4 | Did not check out | |
| 5 | Halogenated hydrocarbon(%) | ≤0.1 | Did not check out | |
| 6 |
Soluble heavy metals(mg/kg) |
plumbum Pb | ≤90 | Did not check out |
| Cadmium Cd | ≤75 | Did not check out | ||
| chromium Cr | ≤60 | Did not check out | ||
| mercury Hg | ≤60 | Did not check out | ||
Durable Performance Standard
Based on the owner or operator, construction and maintenance
Reflect the quality level of the site, and durable time limit
Technical data for SPU Sports Flooring
| Item | test project | technical requirements | test results | |
| 1 | Tensile elongation,% | ≥400 | 1112 | |
| 2 | The tensile strength,Mpa | ≥1.8 | 3.5 | |
| 3 | Artificial climate ageing resistance (300h) No bubbles, no peeling, no crack； | pulverization≤grade 1,△E≤6.0 | No bubbles, no peeling, no crack；pulverization＝grade 0,△E＝0.57 | |
| 4 | Wear resistance(750g/500r),g | ≤0.050 | 0.031 | |
| 5 | Durability, aging experiment (168h) | Tensile elongation,% | ≥300 | 853 |
| The tensile strength,Mpa | ≥1.3 | 1.6 | ||
| 6 |
Resistance to water(168h)
|
No bubbles, no peeling, allowing a slight color change,recovery after 2h | No bubbles, no peeling, no discoloration | |
| 7 | Flame retardant level | I | I | |

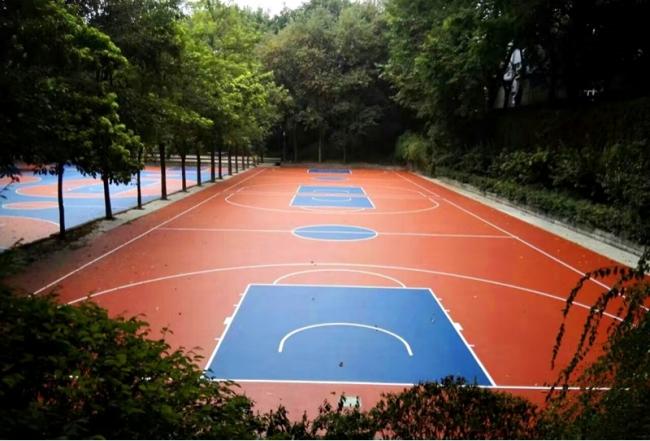

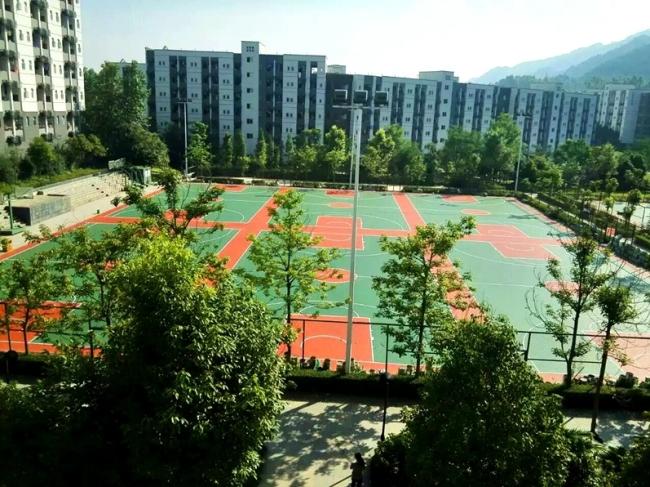

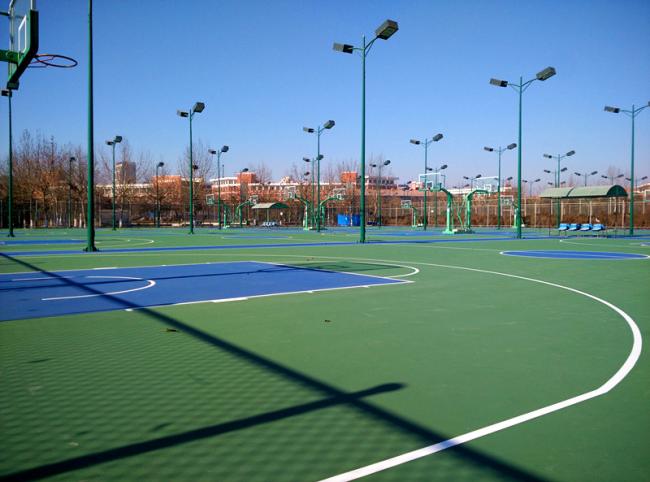

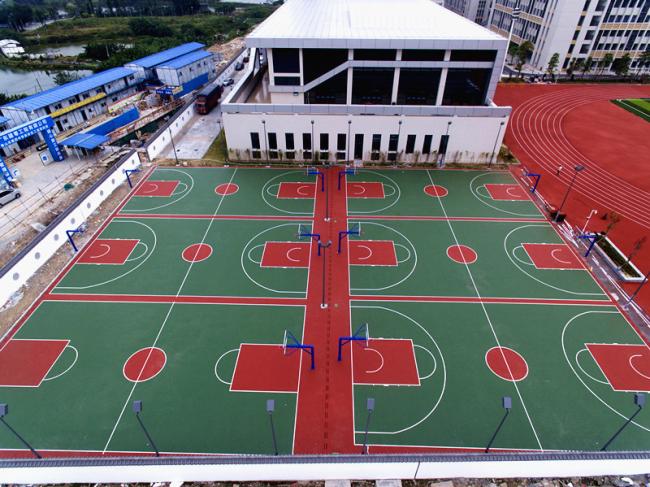

Project cases for your reference:
1)Henan Polytechnic University
2)The No.4 Middle School of Foshan
3)Chongqing Nankai Middle School
4)Chongqing University of Arts and Sciences
