Shock Absorption Rebound SPU Flooring Level1 Fire Resistant
SPU Effective Shock Absorption,Stable Consistent Rebound Flooring
Product Description

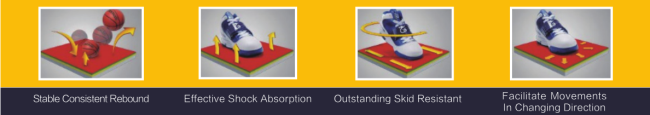

Excellent Performance
The purpose of building sports courts is to ensure a professional,safe,healthy sports condition-the characteristics of hardness will bring the professional sporting feeling; the cushion effectively increasing the shock absorption and reduce the incidence of injuries to ankles,joints and ligaments.At the same time,it should reduce abrasion caused by failing and accident.
Based on the professional sportsandsports protection considerations With reference to the FIBA professional venues ground performance requirements, meet the practical needs of outdoor ball games.
Standard Of Sports Performance
| Serial number | test project | technical requirement | test result |
| 1 | The springback value,% | ≥ 20 | 30 |
| 2 | Sliding friction coefficient | 0.4 ≤ u ≤ 0.7 | 0.53 |
| 3 | Compression recovery rate | ≥ 90 | 97 |
| 4 | Hardness(HA),20℃ | 35-50 | 47 |
| 5 | Tensile elongation,% | ≥ 90 | 172 |
| 6 | The tensile strength,Mpa | ≥ 0.5 | 1.5 |
| 7 | Flame retardant level | I | I |
| 8 | Vertical deformation,mm | 0.6-2.5 | 1.2 |
SPU Runway flooring Performance Data
| Inspection project | technical requirement | result of inspection | determine |
| thickness | ≥13 | 13 | reach the standard |
| shock absorption,% | 35-50 | 35.8 | reach the standard |
| vertical deformation ,mm | 0.6-2.5 | 1.48 | reach the standard |
| Anti-slide value(BPN 20ºC) | ≥47 | 56 | reach the standard |
| Tensile strength,MPA | ≥0.5 | 1.12 | reach the standard |
| Elongation at break,% | ≥40 | 138.6 | reach the standard |
| Fire resistance,level | 1(Burn spot diameter≤50mm) | 1(Burn spot diameter≤38mm) | reach the standard |
Health and Environmental Properties Data
| Inspection project | technical requirement | result of inspection | determine | |
| Benzene(mg/kg) | ≤50 | Did not check out | reach the standard | |
| BTX(mg/kg) | ≤50 | Did not check out | reach the standard | |
| Toluene diisocyanate(mg/kg) | ≤200 | Did not check out | reach the standard | |
| Soluble heavy metal | lead | ≤90 | 1.8 | reach the standard |
| cadmium | ≤10 | 1.3 | reach the standard | |
| chromium | ≤10 | 9.0 | reach the standard | |
| mercury | ≤2 | <1 | reach the standard | |

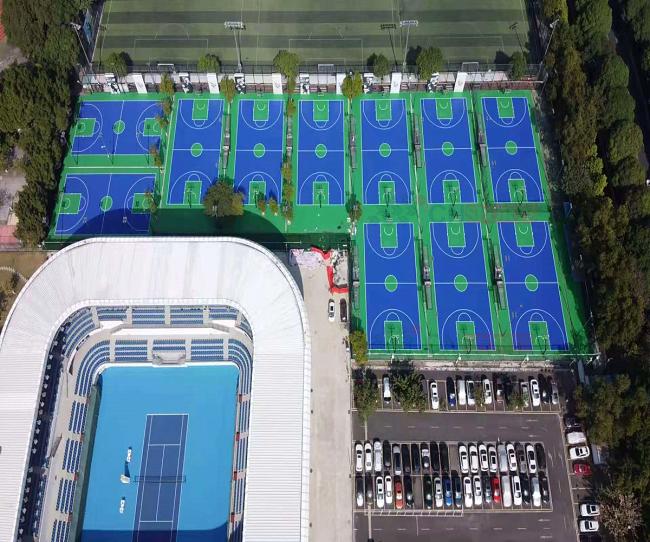

Project Case
