Self Knot Pattern SPU Runway Flooring Waterproof High Rebound Soundproof
Self Knot Pattern SPU Runway Flooring,Waterproof,High Rebound and Soundproof
Product Description
Excellent performance
It's a design based on human kinetics and physical characteristics flooring system, with hard top layer combined with soft rebound cushion lower layer structure. It's suitable to lay on concrete or asphalt substrates. The cushion layer is formed by single component modified polyurethane and top up with two-component modified acrylic resilience layer
| No. | Test project | Standard requirements |
CN-S05F | CN-S05T | CN-S05H | CN-S05Z | Judge |
| 1 | Shock absorption rate,% | 30-50 | 38.9 | 39.2 | 39.3 | 40.1 | Qualified |
| 2 | Vertical deformation,mm | 0.6-2.5 | 1.74 | 2.02 | 2.40 | 2.4 | Qualified |
| 3 | Anti-slide value,BPN20℃≥ | 47 | 57 | 57 | 56 | 57 | Qualified |
| 4 | Tensile strength,Mpa ≥ | 0.5/0.4 permeable type | 0.8 | 0.4 | 0.62 | 0.51 | Qualified |
| 5 | Tensile elongation,% ≥ | 40 | 76.7 | 46 | 54.3 | 52.8 | Qualified |
| 6 | Flame retardant level | I | I | I | I | I | Qualified |
| 7 | Thickness,mm | 13 | 13.1 | 13.0 | 13.1 | 13.0 | Qualified |
| No. | Test project | Standard requirements |
CN-S05F | CN-S05T | CN-S05H | CN-S05Z | Judge |
| 1 | Benzene,g/kg ≤ | 0.05 | nought | nought | nought | nought | Qualified |
| 2 | BTX,g/kg ≤ | 0.05 | nought | nought | nought | nought | Qualified |
| 3 | Toluene diisocyanate,% ≤ | 0.2 | nought | nought | nought | nought | Qualified |
| 4 | Soluble heavy metal,mg/kg Pb ≤ | 90 | nought | nought | nought | nought | Qualified |
| 5 | Soluble heavy metal,mg/kg Cd ≤ | 10 | 2.4 | 2.0 | 1.9 | 2.8 | Qualified |
| 6 | Soluble heavy metal,mg/kg Cr ≤ | 10 | 3.2 | 3.1 | 3.4 | 3.4 | Qualified |
| 7 | Soluble heavy metal,mg/kg Hg ≤ | 2 | nought | nought | nought | nought | Qualified |
Advantages
1. Color EPDM surface, making it highly resistant to ultraviolet rays, no fade, strong wear,which are proved
2. The EPDM granules don't drop, mix the EPDM with polyurethane binder first,and then construct by mechanical spraying.
3. Excellent weather resistance, not aging.
4. Stable Elasticity all year around, so in winter is not hard and in summer it is not soft.
5. Strong Power for rotating and shock-absorbing,emphasizing on comfort and safety for athletes, and helps them improve the performance.
6. The Marking line is not easy to peel off, bright color, do not fade, wear-resistance.
FAQ
Q1: Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year.
Q2: What is the advantage of your factory? Why should I choose you?
Our products are odorless and non-toxic;
We have two main production bases and can make every kinds of SPU venues, running track,artificial grass,sports flooring construction and colloidal particles;
Q3: What kind of certificate you have?
We have certificate of RoHS,ISSS,CE,ITF2,ITF5,IFFF, ISO9001 and ISO14001,SGS, ASG,etc and can export our products all over the world.

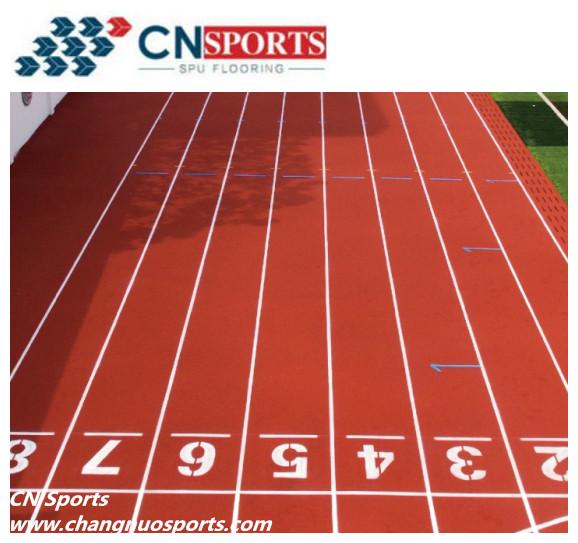

Project Case

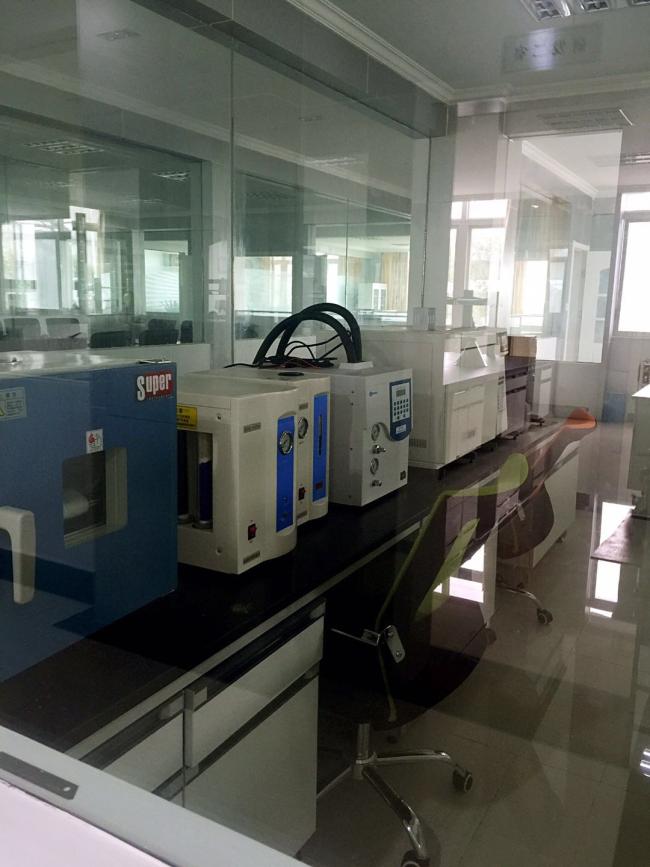

R&D

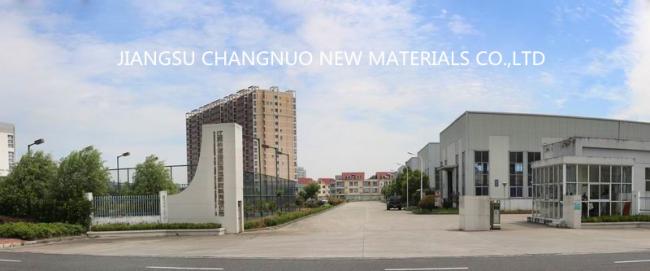

Company photos
