Gowellde CUT40 Portable Plasma Cutter IGBT Single Tube Inverter
CUT40 Portable Plasma Cutter Function IGBT Plasma Cutter,Cutting Machine,1~AC110/220V
Welcome to visit our showroom! It's my honor to introduce you our product.

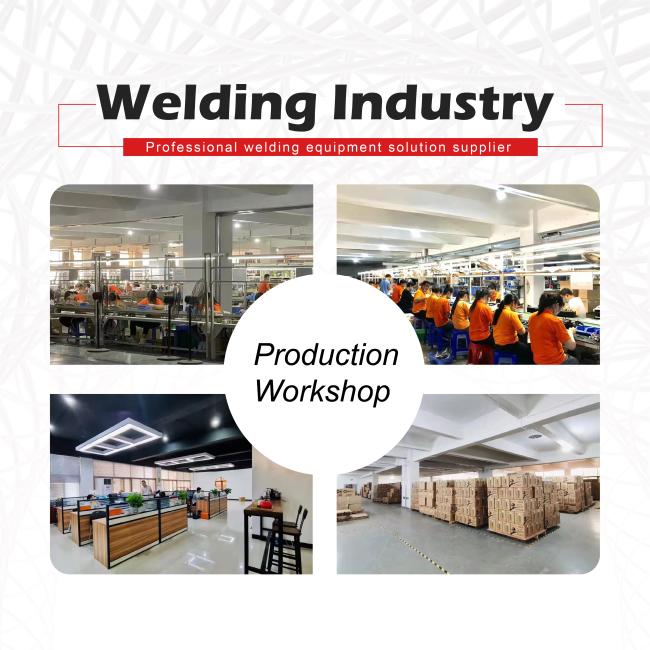

Company Information:
Shenzhen General Welder Technology Co., Ltd, located at Shajing Subdistrict, Bao'an district, Shenzhen city which is the core city for the
inverter type welding and cutting machine. We focused on developing, marketing all kinds of
welding and cutting machine and its related goods.

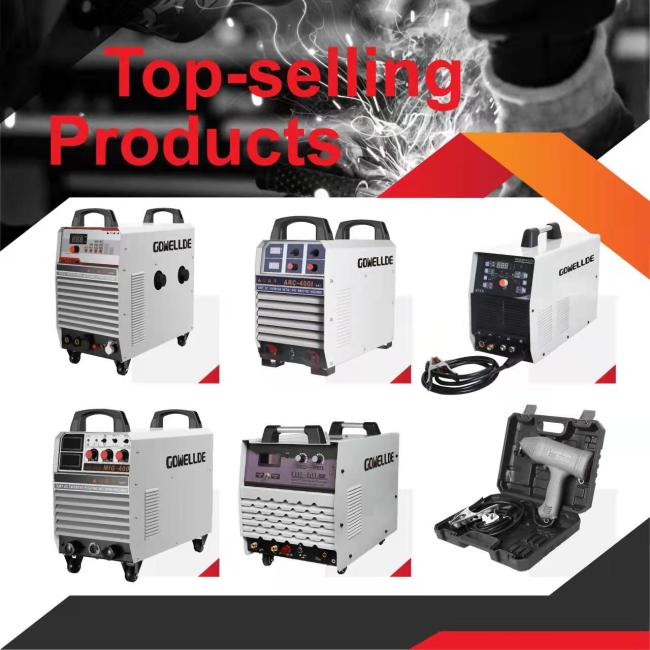

We have below series products:
*ARC welder series, including DIY product, light industry product, and heavy industry product.
*TIG welder series, including TIG&ARC series, TIG pulse series, TIG AC/DC series,
*MIG welder series, including integrated one and separated one, also the pulse MIG machine.
*Plasma cutting machine series including DIY series and heavy industry usage cutting machine.
*Submerge ARC welding machine.
We can also supply you the good quality spare parts of the welding machine. And the accessories of the welding machine.
Aiming to provide the best quality product at a competitive price for you. We want long and strong cooperation relationship with you, not short time.
Quality goes first, Price goes later. With quality and price, We can help your business grow up more quickly.
Last year our overseas market turnover is more than 30 million. We are aiming to do double this year.
Welcome, my friend. We are here and waiting for your inquiry.
Thanks and Best regards!
| Features | ||||||
| ·Using advanced IGBT single tube inverter technology,high frequency and quick response | ||||||
| ·Cutting capacity increases 1.8 times higher in cutting speed comparing with flame cutter. | ||||||
| · Thick metal plate can be cut easily and quickly. | ||||||
| · Auto protection of over-voltage and over-current. | ||||||
| · Suitable for cutting stainless steel, copper, iron and aluminum metal etc. | ||||||
| · Simple operation and smooth cutting surface. | ||||||
| · HF touched Arc-starting cutting. |
| TECHNICAL PARAMETERS | ||||||
| Item | CUT40 | CUT40 | CUT40 | |||
| Input power source(±15% 50/60HZ) | 1~AC220V | 1~AC110V | 1~AC110/220V | |||
| Rated Input current (A) | 30 | 60 | 60/30 | |||
| Rated input power capacity (KVA) | 6.6 | 6.6 | 6.6 | |||
| Output current range (A) | 20-40 | 20-40 | 20-40 | |||
| No-load voltage (V) | DC310V | DC310V | DC310V | |||
| Cutting Thickness | 1-15mm | 1-15mm | 1-15mm | |||
| Rated duty cycle (%) @40℃ | 60 | 60 | 60 | |||
| Efficiency (%) | 80 | 80 | 80 | |||
| Power factor (cosφ) | 0.73 | 0.73 | 0.73 | |||
| Protection class | IP21 | IP21 | IP21 | |||
| Insulation class | F | F | F | |||
| Dimensions (mm) | 400*156*291 | |||||
| Weight (Kg) | 9 | 9 | 9 | |||
