Electric Shaftless Mill Roll Stand Of Corrugated Cardboard Production Line 1500mm
Price:
USD 4500 - 6000 per set
MOQ:
1 set
Delivery Time:
15-25 days
Brand:
Dahua
Product Description

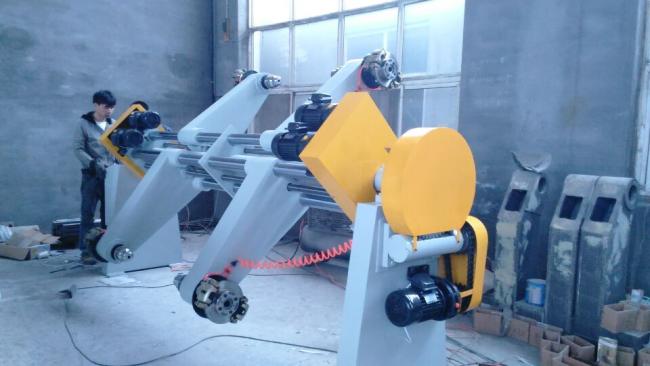

Electric Shaftless Mill Roll Stand Of Corrugated Cardboard Production Line
- The operations of lifting up or lowering down, clamping, loosen-ing, moving and centering of raw paper are all electrically con-trolled.
- This machine applies pneumatic braking for tension adjustment of raw paper with operational.
- Max. diameter of raw paper: φ1500mm.
- Width of clip paper: 600-1800mm
- This machine adopts the cycloid motor for clamping and lifting up or lowering down, which can effectively protect the machine from damaging when the clip paper arm overweighs or touches the ground.
| Model type | 1400,1600,1800,2000,2200,2500mm |
| Max roll diameter | 1500mm |
| Min roll diameter | 600mm |
| Single arm carriage | 2.5tons |
| Motor power | 4.5kw |
| Drive | electrical |
| Speed | 60-100m/min |
