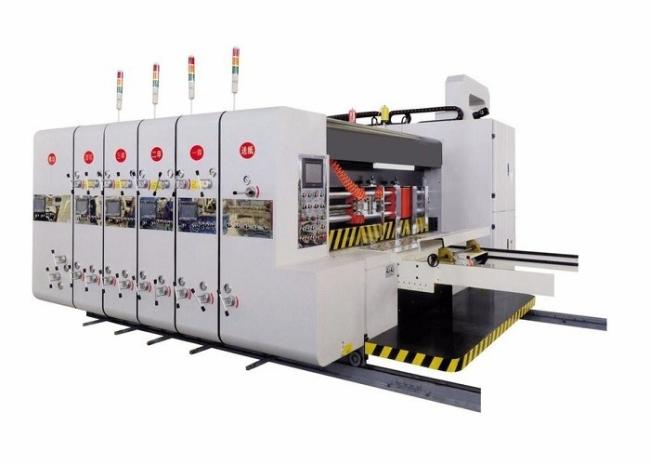

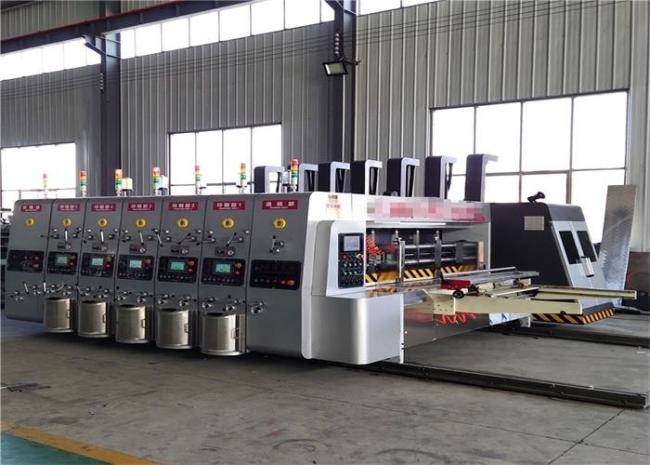

2colors Cardboard Paper 415V Corrugated Box Printing Machine Flexo Carton Slotting
Corrugated Cardboard Paper Flexo Carton Box Printing Slotting Making Printer Machine
1. Adopt vacuum absorption, lead edge feeding paperboard, design and manufacturing, the whole operation is humanized design, can be set in a short time, modify, execute, replace, memory function, and accurate display.
2. Al transmission roller material, adopt high-quality steel, balanced correction, running smooth, surface grinding, hard chrome plating.
3. All gear drive, using high-quality alloy steel, heat treatment, grinding.
4.The oil automatic balance device, keeping each unit oil balance.
5. With automatic -returning-zero, record and memory, printing plate cleaned memory, order and dust removal, and other functions, can be selected combined with touch screen PLC control, easy operation.
6.Mesh roller:you can use Metallic or Ceramic Anilox Roller,anilox roller lines select according to user requirements.
| Model | Unit |
SYKM950 -1800 |
SYKM950 -2000 |
SYKM950 -2200 |
SYKM4212 -2200 |
SYKM4212 -2400 |
|
| Design speed | pcs/min | 100/150/200 | |||||
| Economic speed | pcs/min | 80/130/160 | |||||
| Max.feeding size (mm) | mm | 950×1800 | 950×2200 | 950×2400 | 1300×2400 | 1300×2600 | |
| Min.size of paperboard | mm | 260×500 | 260×500 | 260×500 | 260×500 | 260×500 | |
|
Min. space of slotting |
Obverse knife | mm | 160×160×160×160 | 160×160×160×160 | |||
| Reverse knife | mm | 280×80×280×80 | 280×80×280×80 | ||||
| Max.depth of slot | mm | 240 | 240 | 240 | 300 | 300 | |
| Skip feeding size | mm | 1100×2000 | 1100×2200 | 1100×2400 | 1500×2400 | 1500×2600 | |
| Max.printing area | mm² | 950×1800 | 950×2000 | 950×2200 | 1250×2200 | 1250×2400 | |
| Plate Thickness | mm | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | |
