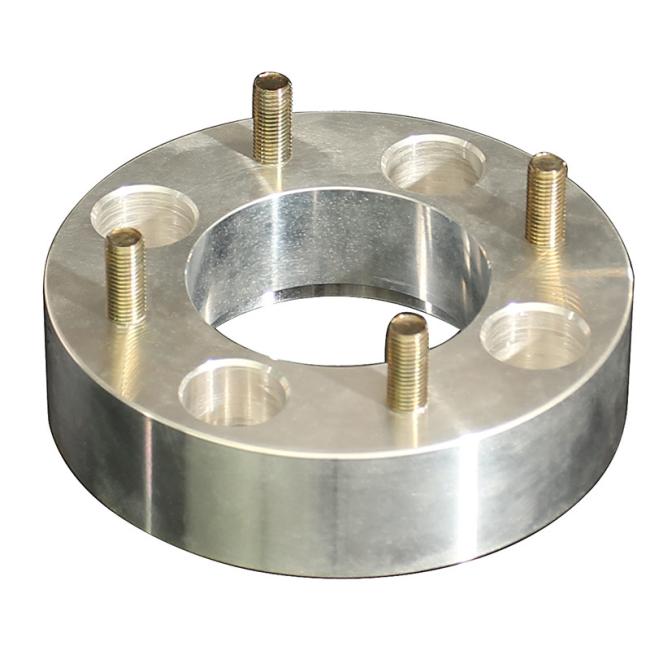

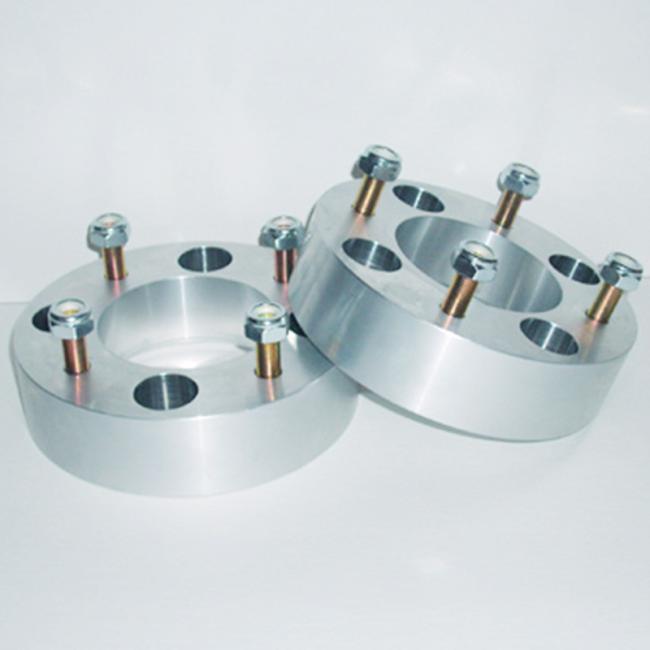

Bolt Pattern 4x100 Hubcentric ATV/UTV Wheel Spacers 1" 1.5" 1.75" 2" 3"
Bolt Pattern 4x100 Hubcentric ATV/UTV Wheel Spacers 1" 1.5" 1.75" 2" 3"
RCTuning’s ATV wheel spacers are made of forged billet aluminum alloy and designed to provide perfect mounting simple and easy nut-on handling. With wheel spacers mounted, not only handling and lateral stability improved, but enhancing the look of your ATV, more aggressive and muscular.
All RCTuning’s ATV wheel spacers are of open center bore, or customized size, to match factory hub and wheel center bore perfectly for vibration-free mounting.
Regular widths: 1", 1.5", 1.75", 2", 3"
Applications: 4x100 Bolt Pattern ATV
Package: 1 PC per Box
Customized sizes & anodized color are welcome.
Custom LOGO: laser engraved LOGO available.
ATV Spacer List
| Part # | Bolt Pattern | Width | OD | Stud |
| AP-90102 | 4x100 | 1" | 5.5" | 10x1.5 / 10x1.25 / 12x1.5 |
| 1-1/8" | ||||
| 1.5" | ||||
| 1.75" | ||||
| 2" | ||||
| AP-90302 | 4x110 | 1" | 5.8" | 10x1.5 / 10x1.25 / 12x1.5 |
| 1-1/8" | ||||
| 1.5" | ||||
| 1.75" | ||||
| 2" | ||||
| AP-90502 | 4x115 | 1" | 5.8" | 10x1.5 / 10x1.25 / 12x1.5 |
| 1-1/8" | ||||
| 1.5" | ||||
| 1.75" | ||||
| 2" | ||||
| AP-909104 | 4x137 | 1" | 6.8" | 10x1.5 / 10x1.25 / 12x1.5 |
| 1-1/8" | ||||
| 1.5" | ||||
| 1.75" | ||||
| 2" | ||||
| AP-909204 | 4x143 | 1" | 6.9" | 10x1.5 / 10x1.25 / 12x1.5 |
| 1-1/8" | ||||
| 1.5" | ||||
| 1.75" | ||||
| 2" | ||||
| AP-909302 | 4x144 | 1" | 6.9" | 10x1.5 / 10x1.25 / 12x1.5 |
| 1-1/8" | ||||
| 1.5" | ||||
| 1.75" | ||||
| 2" | ||||
| AP-909504 | 4x156 | 1" | 7.5" | 10x1.5 / 10x1.25 / 12x1.5 |
| 1-1/8" | ||||
| 1.5" | ||||
| 1.75" | ||||
| 2" |
ATV Wheel Spacer Specifications
Center Bore: Open, or customized
OD: 5.5"
Bolt Pattern: 4x100
Width: 1", 1.5", 1.75", 2", 3"
Stud: M10x1.5, or M10x1.25, or M12x1.5, or Others
Material: Forged Billet Aluminum
