OEM Unmanaged Industrial SFP Ethernet Switch 8*1000Mbps SFP to 2*10/100/1000M RJ45 Slot Din Rail Mount Switch
OEM Unmanaged Industrial SFP Ethernet Switch 8*10/100/1000Mbps to 2*1000M SFP Slot Din Rail Mount Switch
Overview
NF582G-SFP an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000Mbps SFP+2G RJ45 copper interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.
Features
Interface
- 8-port 10/100/1000Mbps SFP
- 2-port 10/100/1000Mbps RJ45
Industrial conformance
- 12V to 52V DC, redundant power input
- -40℃ to 85℃ operating temperature
- IP40 aluminum housing
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability
- DIN-rail and wall-mountable hardware design
Technical Specification
| Model No. | NF582G |
| 10/100/1000BASE-FX Port | 8 port SFP |
| 10/100/1000BASE-TX Port | 2 port RJ-45 auto-MDI / MDI-X |
|
Performance Specification |
Bandwidth: 20Gbps Packet Buffer Memory:2Mbit Packet Forwarding Rate:15Mpps MAC Address Table: 8K |
| Installation | DIN rail |
| Maximum Frame Size | 9000bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP40 aluminum housing |
|
LED Indicator |
Power: Red Ethernet: Yellow POE: Green |
| Power Input | 12 to 52V DC redundant power |
| Power Consumption | < 3 watts |
| Surge protection | ±4KV |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| Certification | CE FCC Rohs compliance |
| MTBF | >300,000hours |
| Dimensions (W x D x H) | 179 x 134 x 46 mm |
| Weight |
Product Weight: 0.56KG Packing Weight: 0.66KG |
|
Working Environment
|
Working temperature: -40～85℃ ; Storage temperature: -40～85℃ Relative Humidity: 5%~95 %( no condensation) |
| Warranty | 3 Years |

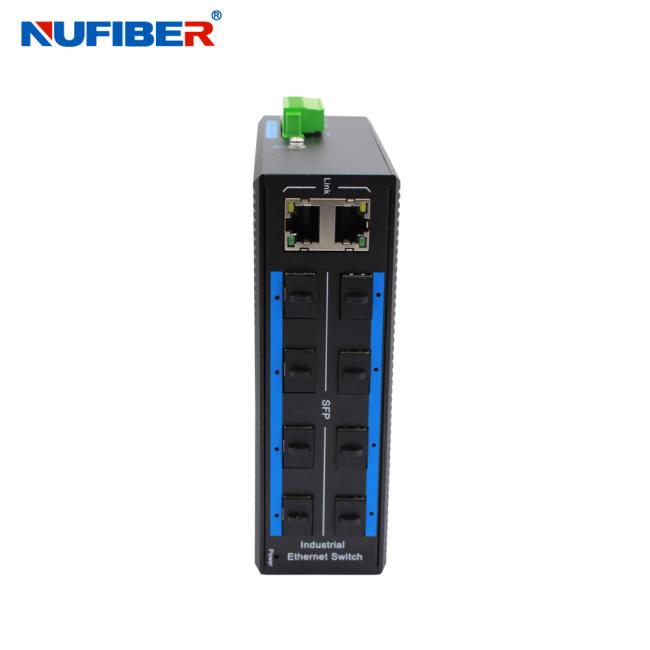

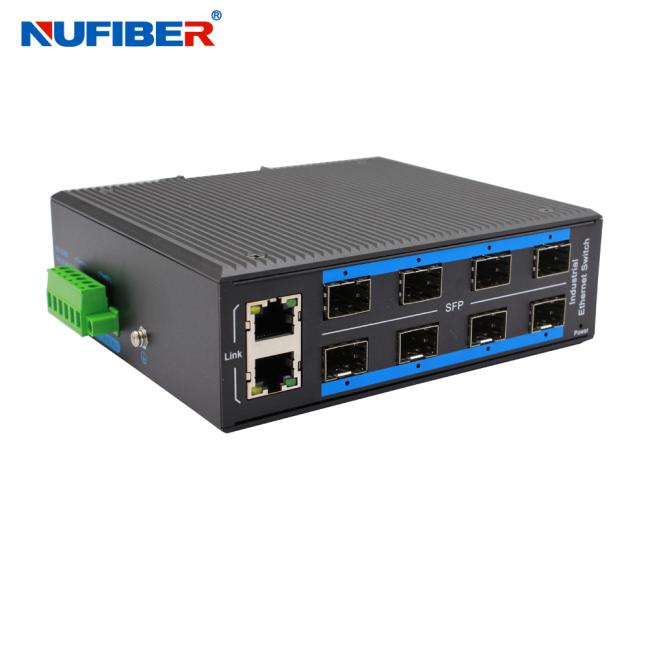

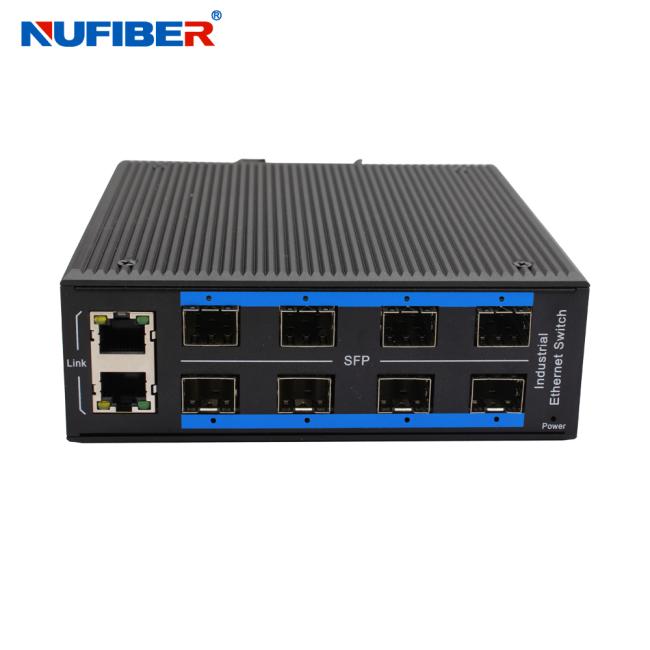

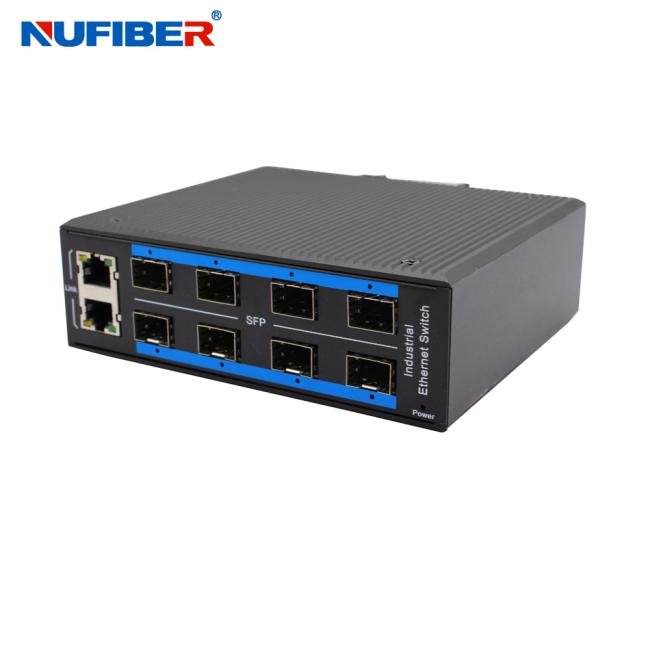

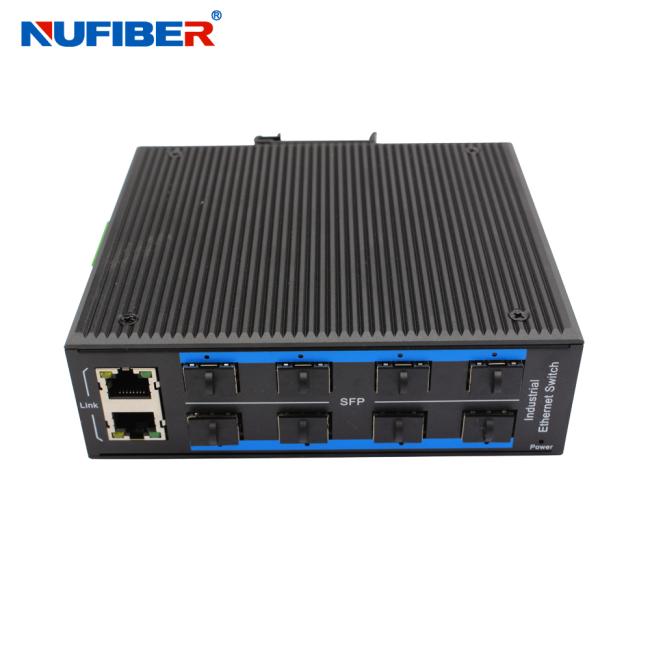

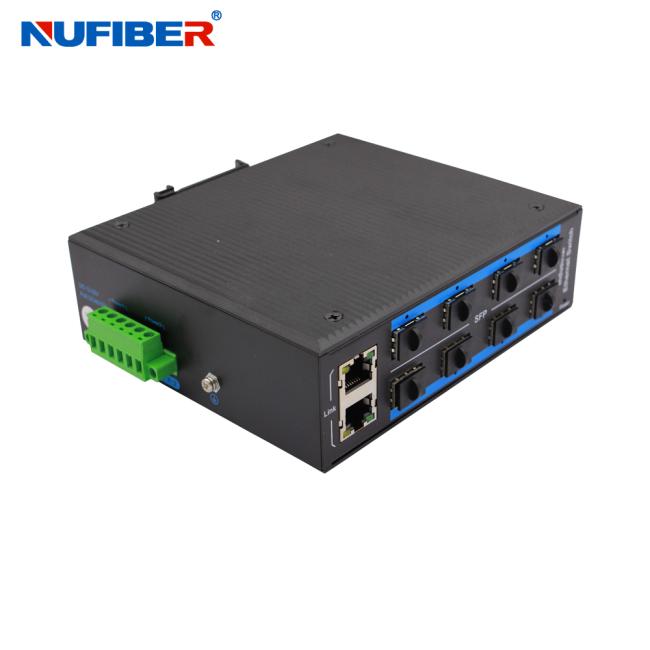

Product Picture
