Gigabit PoE SFP Ethernet Switch 8*10/100/1000Mbps 2*1000M Uplink Port 2*1.25G SFP Slot Fiber Ethernet Switch
Gigabit PoE SFP Ethernet Switch 8*10/100/1000Mbps 2*1000M Uplink Port 2*1.25G SFP Slot Fiber Ethernet Switch
Description
The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100/1000Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
Features
- 8*1000mbps RJ45 POE port;
- 2*10/100/1000Mbps Uplink port;
- 1*10/100/1000Mbps SFP
- 100m Transmission Distance;
- Compatible with IEEE802.3AF/AT;
- Whole Power:120W (52V 2.3A) Full duplex;
- All port supported by MDI/MDIX auto flip and self negotiation;
- Each port max. power supply reached 30W;
- Low heat design, safe and reliable, high stability.
Specifications
| Product | Active 8+2+1SFP 1000Mbps PoE Switch |
| Model | NF-PSE5208G-SFP |
| Feature | Modular Design, Stardard Size |
| POE Port | 1 to 8 support IEEE802.3AF/AT Standard |
| Output Power | 15.4W/30W IEEE802.3af/at |
| Power Pin | Both 1/2+,3/6- and 4/5+7/8- |
| Whole Power | ≤120W (52V 2.3A) |
| POE Protocol | IEEE 802.3af/IEEE 802.3at |
| POE Type | End-span |
| Network Standard | IEEE 802.3, IEEE802.3u,802.3x,802.3af/at |
| Network Medium | 100/1000BASE-TX:5 class and above non shielded twisted pair |
| Switch Capability | 20Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 100BASE-T:148800PPS/port |
| 1000BASE-tx:148000pps/port | |
| MAC Address | MAC address table 8K |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging |
| IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
| LED Indicator | LINK/ACT.1000Mbps; POE Status Indicator; Power indicator;Extender |
| Working Environment | Working temperature:-10°-- 55°C |
Connection Diagram

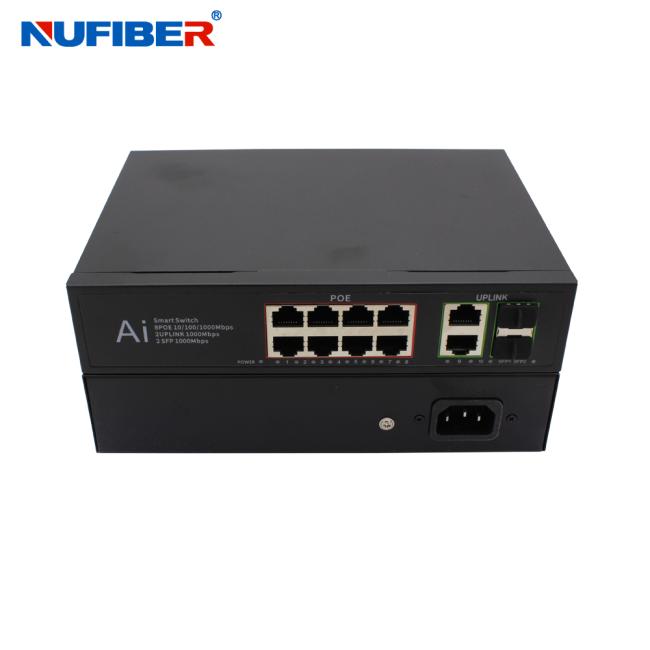

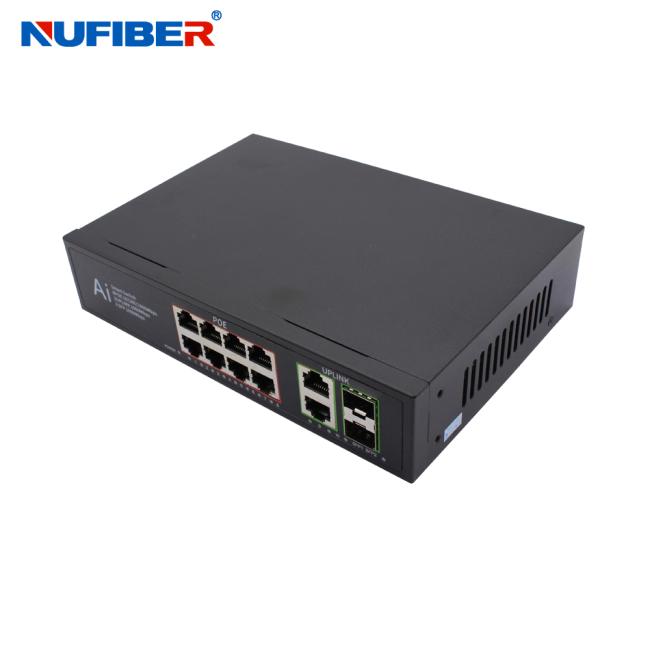

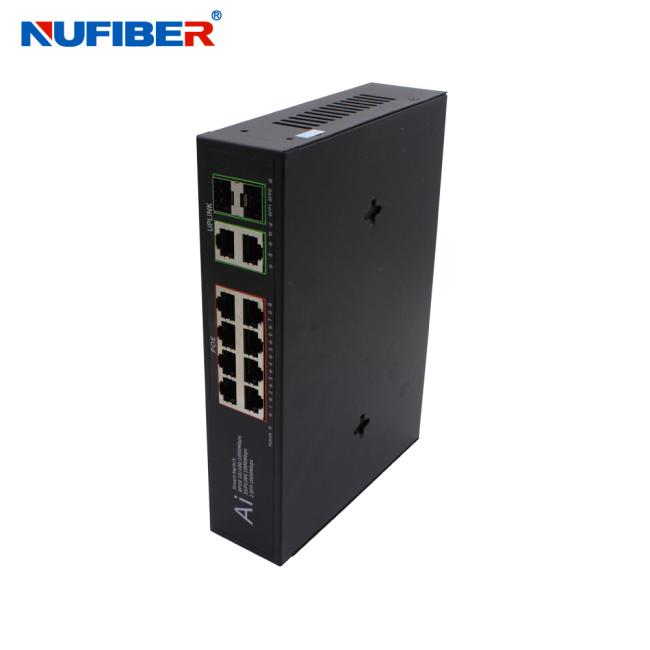

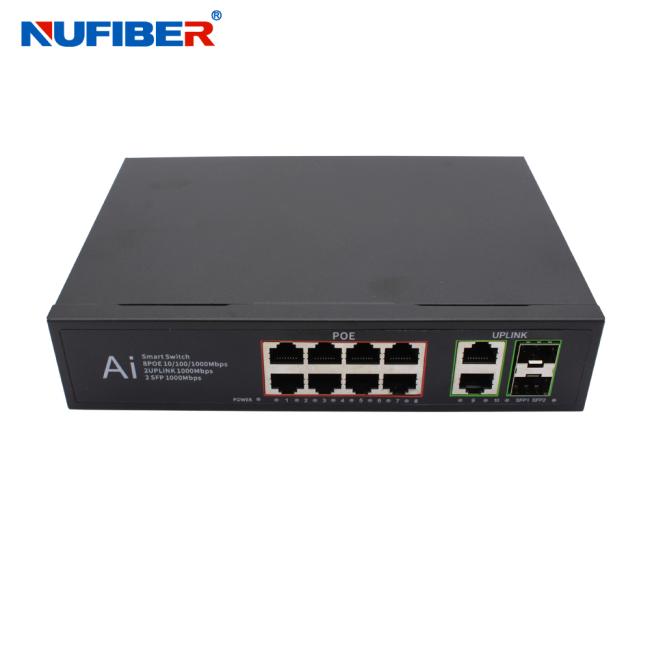

Products Show
Product Show
![]()
Packing Information
Shipping Method
FAQ
Q: Are you a manufacturer or a trading company ?
A: We're professional manufacturer of POE Network Switch, providing one-stop OEM & ODM service to all partners all over the world.
Q: Are your products conforming to our standards ?
A: Yes, our products can pass the testings as you require, e.g.: CE, RoHS, ISO9001.
Q: How do you control the quality ?
A: We have perfect QC system (IQC, IPQC, FQC, OQC team), professional product engineers and continuous improvement system.
Q: What’s the product warranty?
A: We offer 12 months guarantee.
