155Mb/s SFP Transceiver Multi Mode dual fiber 2km 1310nm LC DDM

Price Negotiable

Price: Negotiable

MOQ: 1 piece

Delivery Time: Within 1-3 work days

Brand: NuFiber

Product Description

155Mb/s SFP Transceiver Multi Mode dual fiber 2km 1310nm LC DDM

Description

NuFiber’s FE-SX-MM1310 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310nm FP laser, up to 17dB link budge ensure this module SONET OC-3/SDH STM-1 2Km application.

Features

Up to 155Mb/s Data Links
Hot-Pluggable
Duplex LC connector
Up to 2km on 50/125μm MMF
1310nm FP laser transmitter
Single +3.3V Power Supply
Maximum Power <1W
Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
RoHS compliant and Lead Free

Applications

►SONET OC-3/SDH STM-1

►Fast Ethernet

►Other Optical Links

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section:
Center Wavelength	λc	1260	1310	1330	nm
Spectral Width	σ			0.85	nm
Optical Output Power	Pout	-15		-8	dBm	1
Optical Rise/Fall Time	tr / tf			500	ps	2
Extinction Ratio	ER	8.2			dB
Generated Jitter (peak to peak)	JTXp-p			0.07	UI	3
Generated Jitter (rms)	JTXrms			0.07	UI	3
Eye Mask for Optical Output	Compliant with G.957(class 1 laser safety)
Receiver Section:
Optical Input Wavelength	λc	1260		1600	nm
Receiver Overload	Pol	-8			dBm	4
RX Sensitivity	Sen			-32	dBm	4
RX_LOS Assert	LOS A	-45			dBm
RX_LOS De-assert	LOS D			-33	dBm
RX_LOS Hysteresis	LOS H	0.5			dB
General Specifications:
Data Rate	BR		155		Mb/s
Bit Error Rate	BER			10-12
Max. Supported Link Length on 50/125μm MMF@155Mb/s	LMAX		2		km
Total System Budget	LB	17			dB

Ordering Information

Dual Fiber SFP Transceiver
Part Number	Product Description
155Mbp/s SFP Transceiver
FE-SX-MM850	155Mbps, 850nm MM 2km Dual LC, DDM 0°C~+70°C
FE-SX-MM1310	155Mbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C

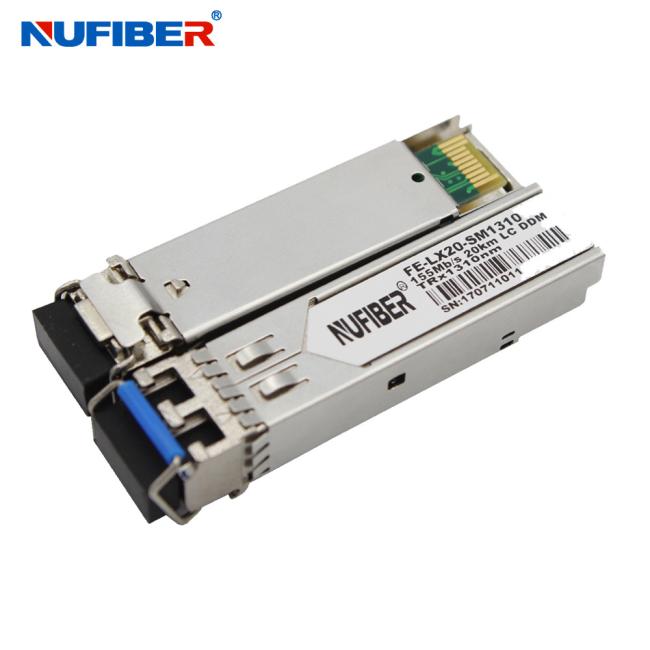

FE-LX20-SM1310	155Mbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
FE-LX40-SM1310	155Mbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
FE-LX80-SM1550	155Mbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
FE-LX120-SM1550	155Mbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
1.25Gbps SFP Transceiver
GE-SX-MM850	1.25Gbps, 850nm MM 500m Dual LC, DDM 0°C~+70°C
GE-SX-MM1310	1.25gbps, 1310nm MM 2km Dual LC, DDM 0°C~+70°C
GE-LX20-SM1310	1.25Gbps, 1310nm SM 20km Dual LC, DDM 0°C~+70°C
GE-LX40-SM1310	1.25Gbps, 1310nm SM 40km Dual LC, DDM 0°C~+70°C
GE-LX60-SM1550	1.25Gbps, 1550nm SM 60km Dual LC, DDM 0°C~+70°C
GE-LX80-SM1550	1.25Gbps, 1550nm SM 80km Dual LC, DDM 0°C~+70°C
GE-LX120-SM1550	1.25Gbps, 1550nm SM 120km Dual LC, DDM 0°C~+70°C
10Gbps SFP Transceiver
SFP+-10GB-SR	10G SFP+ SR Multi mode dual fiber LC 850nm 300M
SFP+-10GB-LRM	10G SFP+ LRM Multi mode dual fiber LC 1310nm 220M
SFP+-10GB-LR	10G SFP+ LR Single mode dual fiber LC 1310nm 20km
SFP+-10GB-ERM	10G SFP+ER Single mode dual fiber LC 1310nm 40km
SFP+-10GB-ER	10G SFP+ER Single mode dual fiber LC 1550nm 40km
SFP+-10GB-ZR	10G SFP+ZR Single mode dual fiber LC 1550nm 80km
SFP+10G40-CWDM	1470 ~1610nm CWDM SFP+ 40km
SFP+10G80-CWDM	1470~1570nm CWDM SFP+ 80km
SFP+10G80-CWDM	1590~1610nm CWDM SFP+ 80km
SFP+10G40-DWDM	DWDM SFP+ 40km
SFP+10G80-DWDM	DWDM SFP+ 80km
XFP Transceiver
XFP-10G-SR	10G XFP SR Multi mode dual fiber LC 850nm 300M
XFP-10G-LRM	10G XFP LRM Single mode dual fiber LC 1310nm 10kM
XFP-10G-LR	10G XFP LR Single mode dual fiber LC 1310nm 20km
XFP-10G-ER	10G XFP ER Single mode dual fiber LC 1550nm 40km
XFP-10G-ZR	10G XFP ZR Single mode dual fiber LC 1550nm 80km
CWDM DWDM Transceiver
XFP-CWDM-40xx	1470 ~1610nm CWDM XFP 40km
XFP-CWDM-80xx	1470~1570nm CWDM XFP 80km
XFP-CWDM-80xx	1590~1610nm CWDM XFP 80km
XFP-DWDM-40xx	DWDM XFP 40km
XFP-DWDM-80xx	DWDM XFP 80km
XFP-DWDM-100xx	DWDM XFP100km
