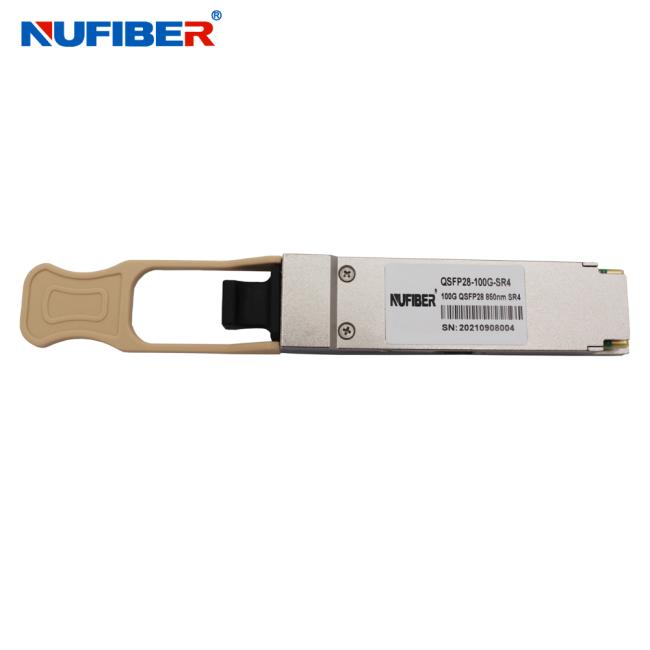

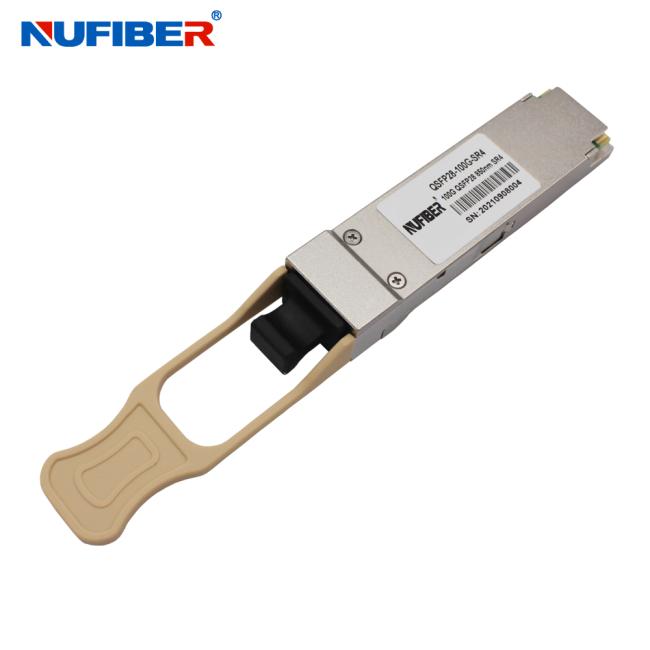

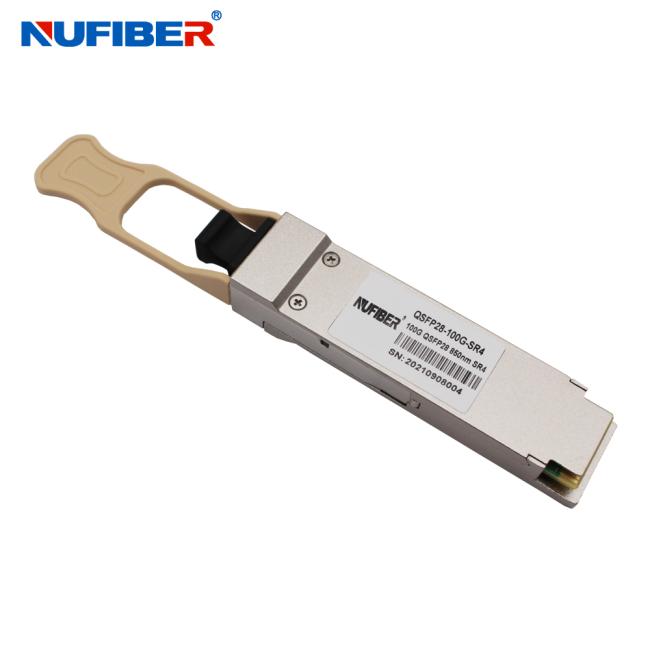

OEM 100G SR4 QSFP28 Multimode 850nm MTP/MPO Connector 100m compatible with Cisco

Price Negotiable

Price: Negotiable

MOQ: 1 piece

Delivery Time: Within 1-3 work days

Brand: NUFIBER

Product Description

OEM 100G SR4 QSFP28 Multimode 850nm MTP/MPO Connector 100m

Features

4 independent full-duplex channels
Up to 27.95Gbps per channel bandwidth
Aggregate bandwidth of > 100Gbps
MTP/MPO optical connector
QSFP28 MSA compliant
Power Consumption<3.5W
Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
Digital diagnostic capabilities
Single +3.3V power supply operating
Temperature range 0°C to 70°C
RoHS Compliant Part

Applications

Electrical Characteristics

Parameter	Symbol	Min	Typ		Max	Unit	Note
Data Rate per Channel		-	25.78125			Gbps
Power Consumption		-	2.5		3.5	W
Supply Current	Icc		0.75		1.0	A
Control I/O Voltage-High	VIH	2.0			Vcc	V
Control I/O Voltage-Low	VIL	0			0.7	V
Inter-Channel Skew	TSK				150	Ps
RESETL Duration			10			Us
RESETL De-assert time					100	ms
Power On Time					100	ms
Transmitter
Single Ended Output Voltage Tolerance		0.3		4		V	1
Common mode Voltage Tolerance		15				mV
Transmit Input Diff Voltage	VI	120		1200		mV
Transmit Input Diff Impedance	ZIN	80	100	120
Data Dependent Input Jitter	DDJ			0.1		UI
Data Input Total Jitter	TJ			0.28		UI
Receiver
Single Ended Output Voltage Tolerance		0.3		4		V
Rx Output Diff Voltage	Vo		600	800		mV
Rx Output Rise and Fall Voltage	Tr/Tf			35		ps	1
Total Jitter	TJ			0.7		UI
Deterministic Jitter	DJ			0.42		UI
