Managed Industrial PoE Switch 8X10/100/1000M RJ45 PoE to 2x1000M SFP Slot Din Rail Switch
Managed Industrial PoE Switch 8X10/100/1000M RJ45 PoE to 2x1000M SFP Slot Din Rail Switch
Overview
NF328GMP-SFP an hardened 10-port Industrial PoE Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX RJ45 PoE +2 SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.
Features
Interface
•8-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI / MDI-X function
•Port 1-8 with PoE output , each max.30W PoE budget: 240W max.
•2-port gigabit SFP uplink•(support 100Mbps/1000Mbps SFP module)
Industrial conformance
•48V to 57V DC, redundant power input
•-40℃ to 80℃ operating temperature
•IP40 metal case
•Supports 6KV DC Ethernet ESD protection
•Supports 6KV DC EFT protection for power line
•Free Fall, Shock and Vibration Stability
•DIN-rail hardware design
Technical Specification
| Model No. | NF328GMP-SFP |
| 10/100/1000Base-TX Port | 8-Port RJ-45 auto-MDI / MDI-X |
| PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports:1-8 port support PoE | |
|
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
| PoE port Auto detect af/at devices | |
| Output Voltage: DC48V | |
| Power Pin Assignment:1/2+;3/6- | |
| Power Type: End-span( Mid-span optional) | |
| 1000Base-FX Port | 2 SFP Slot |
|
Performance Specification |
Bandwidth: 38Gbps MAC Address Table: 8K |
| Installation | DIN rail |
| Maximum Frame Size | 10240bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP40 slim type metal case |
|
LED Indicator |
Power: Red System:Green Fiber: Green Ethernet: Yellow PoE: Green |
| Power Input | 48 to 57V DC redundant power |
| Power Consumption | < 10W (excluded PoE) |
| Protection |
ESD (Ethernet): 6KV DC Surge (Power): 6KV DC |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
Industry Standard |
FCC CFR47 Part 15,EN55032, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
| MTBF | 300,000hours |
| Dimensions (W x D x H) | 143.7*125*47.7mm |
| Weight |
Product Weight: 0.7KG Packing Weight: 0.8KG |
|
Working Environment
|
Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |

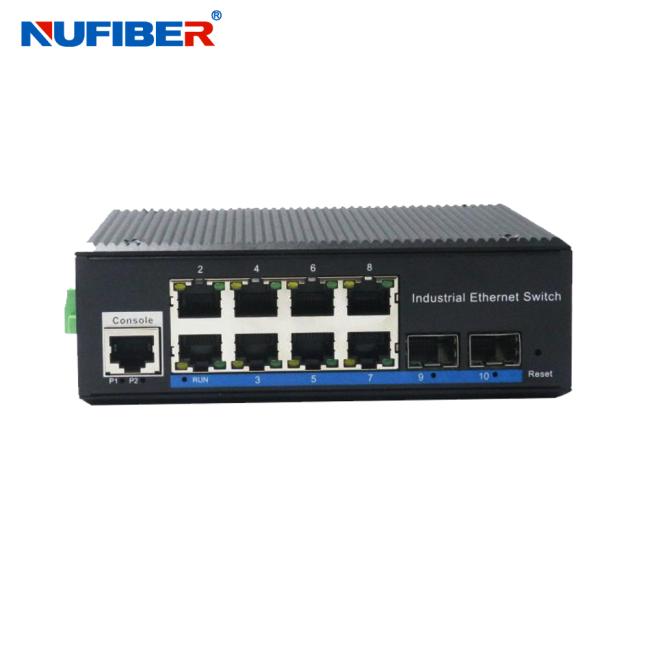

Product Picture
Connection diagram
Packing & Shipping
