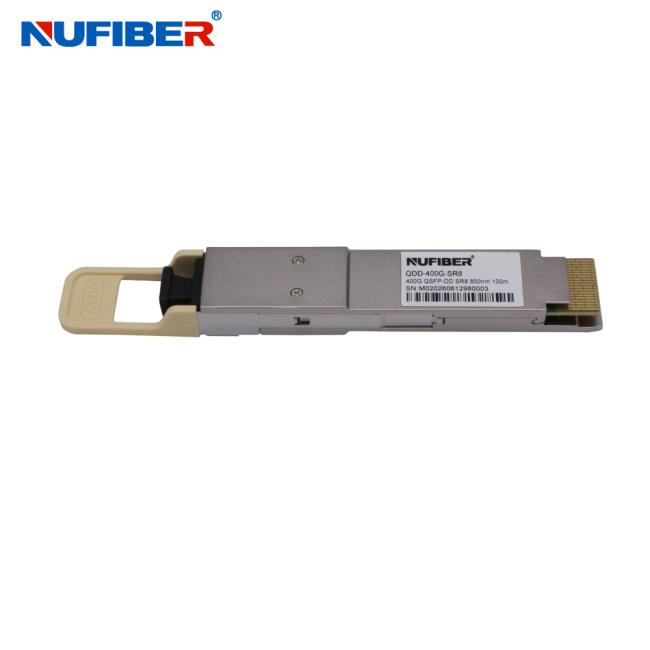

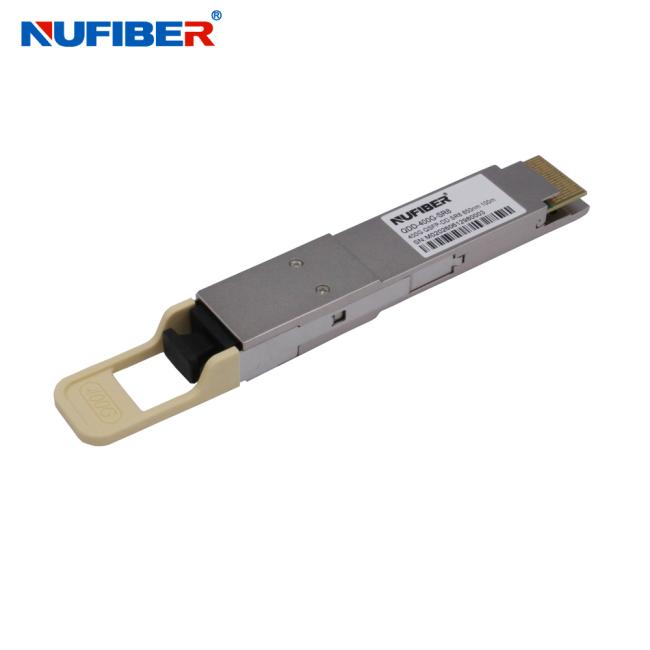

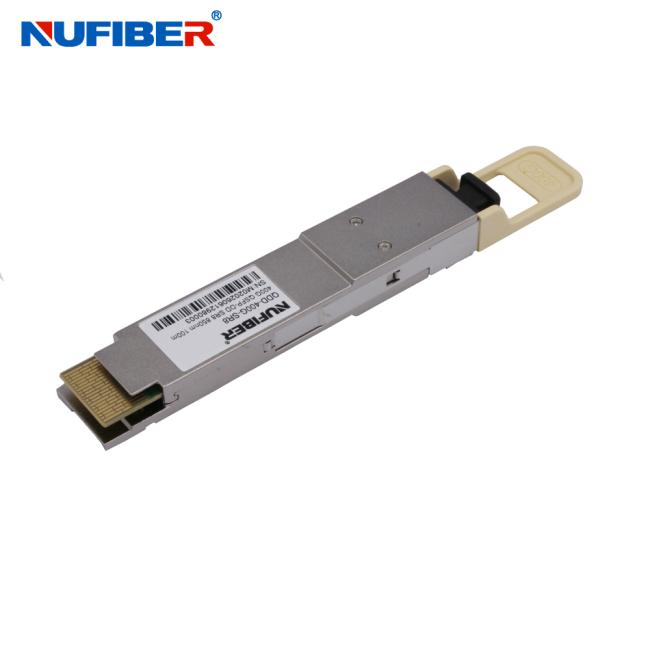

Cisco QDD-400G-SR8-S Compatible 400GBASE-SR8 QSFP-DD 8 x 50G PAM4 850nm 100m MPO-16/APC MMF Transceiver Module
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
Within 1-3 work days
Brand:
NUFIBER
Product Description
Cisco QDD-400G-SR8-S Compatible 400GBASE-SR8 QSFP-DD 8 x 50G PAM4 850nm 100m MPO-16/APC MMF Transceiver Module
Overview
The 400GBASE-SR8 module, MTP/MPO-16 connector, up to 100m over parallel OM4 multi-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.
The 400 Gigabit Ethernet signal is carried over eight wavelengths. And it can Support 2× 200G-SR4 and 8× 50G-SR.
Applications
- Local Area Network (LAN)
- Wide Area Network (WAN)
- Data Center
- Ethernet switches and router applications
Specifications
| Parameter Category | Item | Specification |
|---|---|---|
| Basic Information | Module Name | QSFP-DD-400G-SR8 |
| Form Factor | QSFP-DD | |
| Optical Interface Standard | 400GBASE-SR8 (IEEE 802.3cm) | |
| Data Rate | 400 Gbps (8x50G PAM4) | |
| Connector Type | MPO-16 (16-fiber) | |
| Fiber Type | Multimode Fiber (MMF, 50/125μm) | |
| Ferrule End-face Type | APC | |
| Transmission Performance | Target Transmission Distance | OM3: 70m; OM4: 100m |
| Modal Bandwidth | OM3: 2000 MHzkm; OM4: 4700 MHzkm | |
| Bit Error Rate (BER) | 2.4e-4 | |
| Transmitter Parameters | Center Wavelength | 850 nm |
| Max. Transmit Power (AVG) | 4 dBm | |
| Min. Transmit Power (AVG) | -6.5 dBm | |
| Min. Extinction Ratio | 3 dB | |
| Receiver Parameters | Receiver Sensitivity (OMA) | max(–6.5, SECQ-7.9) dBm |
| Overload Power (AVG) | 4 dBm | |
| Functional Features | Operating Case Temperature | 0°C to 70°C |
| Digital Diagnostic Monitoring (DDM) | Supported | |
| Breakout Capability | Supports 2x200G | |
| Built-in FEC | No | |
| Patch Cord Parameters | Fiber Connector Type | MPO-16 |
| Fiber End-face Type | APC | |
| Gender | Female | |
| Polarity | Fully Crossed (Type B) |
