OEM 4 8 16 24 Port Gigabit CCTV Network Ethernet POE Switch 48V 10 / 100 / 1000M
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
1-3 work days
Brand:
NuFiber
Product Description
OEM 4 8 16 24 Port Gigabit CCTV Network Ethernet PoE Switch 48V 10/100/1000M for Hikvision IP Camera
1U Rack type
POE Port:24*10/100Mbps;2*1000M UTP;1*1000M SFP
Power: DC52V/320W (built-in)
Data signal:1236,Power pin:(12+,36-)
Distance:250M , VLAN:YES , IEEE802.3af/at
Features
| 24*10/100Mbps PoE port; |
| 2*10/100/1000Mbps Uplink port |
| 2*10/100/1000Mbps SFP |
| Whole power budget: 300W |
| Support 250 meters long distance |
| 6KV lightning protection |
Specifications
| Product | Active 24+2+1SFP 100Mbps PoE Switch |
| Model | NF-PSE5224-SFP-1U |
| Feature | Modular Design, Stardard Size |
| POE Port | 1 to 24 support IEEE802.3AF/AT Standard |
| Output Power | 15.4W/30W IEEE802.3af/at |
| Power Pin | Both 1/2+,3/6- and 4/5+7/8- |
| Whole Power | ≤300W (52V 5.8A) |
| POE Protocol | IEEE 802.3af/IEEE 802.3at |
| POE Type | End-span |
| Network Standard | IEEE 802.3, IEEE802.3u,802.3x,802.3af/at |
| Network Medium | 10/100BASE-TX:5 class and above non shielded twisted pair |
| Switch Capability | 8.8Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate |
10BASE-T:14880PPS/port |
| MAC Address | MAC address table 16K |
| Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging |
| LED Indicator | LINK/ACT.100Mbps; POE Status Indicator; Power indicator;Extender |
| Working Environment | Working temperature:-10°-- 55°C |
Connection Diagram

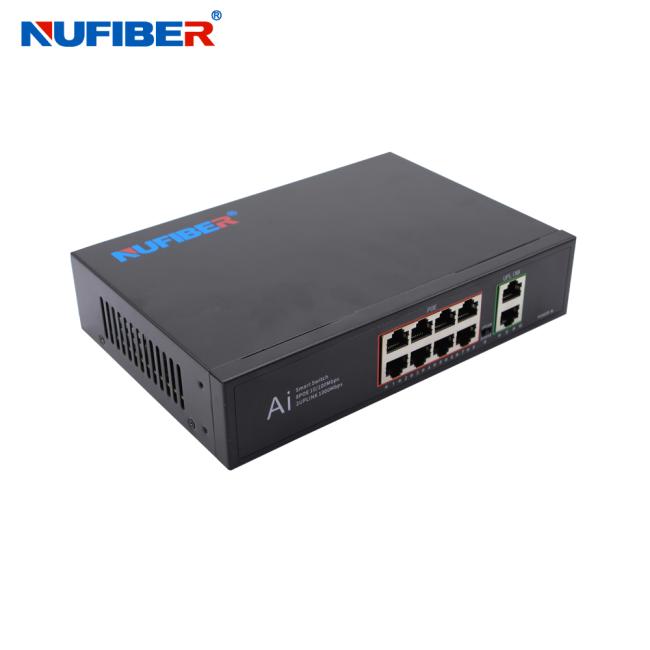

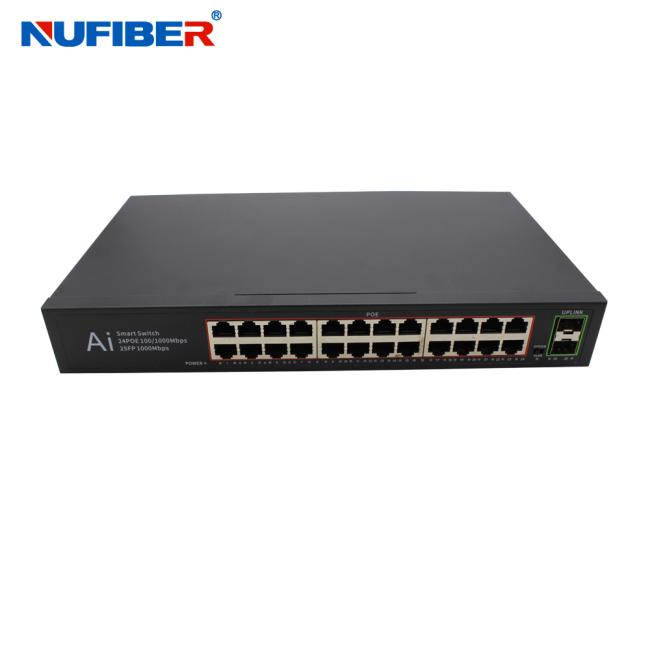

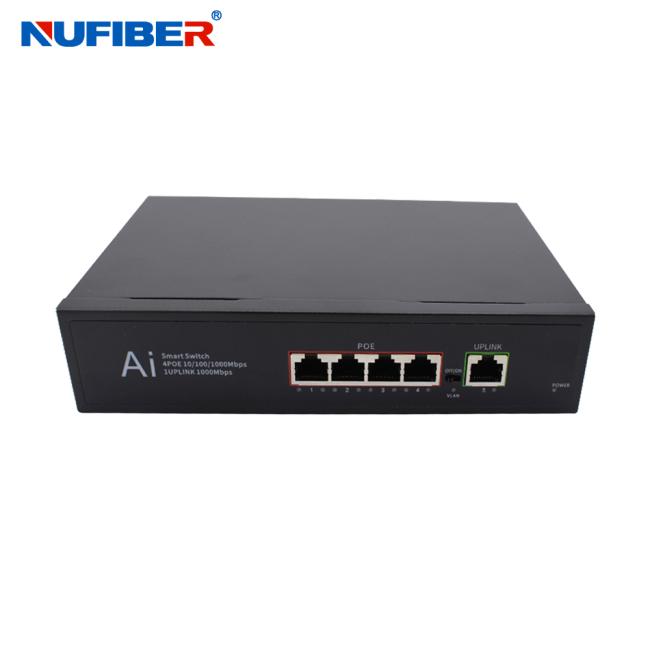

Products Show
