Durable Metal Rope Mesh 200x200mm Stainless Steel Cable Netting Wire Mesh Ferrule
Durable High Strength Black Oxide Stainless Steel Wire Rope Mesh Net
Black Oxide Stainless Steel Wire Rope Mesh Description:
Black oxide stainless steel wire rope mesh is a kind of protective net on the basis of the original color stainless steel rope mesh, the surface of the stainless steel wire rope is treated with special black oxidation.
This black treatment not only has a unique aesthetic, but the black is durable and not easy to fade. Except for the color, the other features are the same as the original color stainless steel rope mesh. It has strong tensile strength, corrosion resistance, no rust, good flexibility, long service life, and easy installation.
Specifications Of the Black Oxide Stainless Steel Wire Rope Mesh :
- Mesh Hole Size: 25x25mm, 30 x 30mm, 38 x 38mm, 51 x 51mm, 60 x 60mm, 76 x 76mm, 90 x 90mm, 102 x 102mm, 120 x 120mm, 150 x 150mm are popular.
- Wire rope diameter: commonly used are 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm are popular
- Mesh size: We can do the rope mesh according to customers' requirements.
|
Black Oxide Stainless Steel Wire Rope Mesh (Ferruled Type) |
|||||
| Item No.s | Rope Diameter | Mesh Hole Size(W x H) | Normal Break | ||
| inch | mm | inch | mm | lbs | |
| YT-3212F | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 6.9 | 102 x 156 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 5.2 | 76 x 131.6 | 1600 |
| YT-3251F | 1/8 | 3.2 | 2 x 3.46 | 51 x 88.3 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 6.9 | 102 x 176.7 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 6.15 | 90 x 156 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 5.2 | 76 x 131.6 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 4.16 | 60 x 104 | 920 |
| YT-2451F | 3/32 | 2.4 | 2 x 3.46 | 51 x 88.3 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 4.16 | 60 x 104 | 676 |
| YT-2051F | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 | 676 |
| YT-1676F | 1/16 | 1.6 | 1.2 x 2.08 | 76 x 131.6 | 480 |
| YT-1651F | 1/16 | 1.6 | 2 x 3.46 | 51 x 88.3 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 2.08 | 30 x 52 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 2.6 | 38 x 65.8 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 | 270 |
| YT-1220F | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 | 270 |
Packaging Of the Black Oxide Stainless Steel Wire Rope Mesh:
-
Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.
-
Shipping:Usually it is by air or by express(DHL,TNT,EMS,FedEx)
Advantages
- Lightweight, high strength, never rust, good flexibility, impact resistance, large breaking force, strong and durable overall structure, and service life of more than 30 years;
- Green and environmental protection, without any chemical treatment, can be reused.
- Good perspective, luxurious appearance and novel style.
- Complete specifications and customized sizes.
- Convenient construction, simple installation, suitable for any conditions.
Applications:

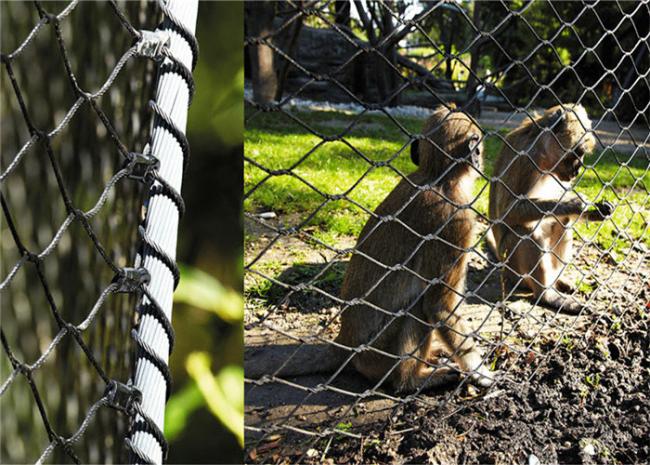

Black oxidation stainless steel wire rope mesh is usually used in animal cages, architectural decoration and other places.
