2.0mm Ss316l Stainless Steel Cable Net High Tensile 200x200mm
2.0mm High Tensile Metal Architectural Wire Mesh Panels Cable Netting
Architectural Wire Mesh Panels Cable Netting Description:
Stainless steel cable netting(architectural wire rope net) (architecture flexible protective net) (architectural stainless steel cable net) is made of stainless steel rope twisted up and down and extruded with steel sleeve. The diameter of the steel wire rope is 1.0, 1.5, 2.0, 3.0, 4.0mm, stainless steel cable structure There are 7 * 7, 7 * 19, 1 * 19, etc., and the materials are ss304, 316, 316L.
The material of steel sleeve is mainly stainless steel sleeve. Others are aluminum sleeve, copper sleeve and copper tinned sleeve for customers to choose. The stainless steel cable mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world. It has strong tensile strength, corrosion resistance, no rust, good flexibility, long service life, and easy installation.
Specifications Of the architecture cable netting :
- Material : stainless steel 304, 304L,316,316L.
- Rope Structure : 7x7 and 7x19.
- The stainless steel cable wire diameter includes 1/8", 3/32", 1/16", and 3/64"
- The standard mesh opening size includes 1" x 1", 1-1/2" x 1-1/2", 2" x 2", 3" x 3" and 4" x 4".
- Mesh size: We can do the rope mesh according to customers' requirements.
|
Architectural Wire Mesh Panels Cable Netting |
|||||
| Item No.s | Cable Diameter | Mesh Aperture(W x H) | Normal Break | ||
| inch | mm | inch | mm | lbs | |
| YT-3212F | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 6.9 | 102 x 156 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 5.2 | 76 x 131.6 | 1600 |
| YT-3251F | 1/8 | 3.2 | 2 x 3.46 | 51 x 88.3 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 6.9 | 102 x 176.7 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 6.15 | 90 x 156 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 5.2 | 76 x 131.6 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 4.16 | 60 x 104 | 920 |
| YT-2451F | 3/32 | 2.4 | 2 x 3.46 | 51 x 88.3 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 4.16 | 60 x 104 | 676 |
| YT-2051F | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 | 676 |
| YT-1676F | 1/16 | 1.6 | 1.2 x 2.08 | 76 x 131.6 | 480 |
| YT-1651F | 1/16 | 1.6 | 2 x 3.46 | 51 x 88.3 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 2.08 | 30 x 52 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 2.6 | 38 x 65.8 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 | 270 |
| YT-1220F | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 | 270 |
Packaging Of the Architectural Wire Mesh Panels Cable Netting:
-
Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.
-
Shipping:Usually it is by air or by express(DHL,TNT,EMS,FedEx)
Features :
- Lightweight, high strength, never rust, good flexibility, impact resistance, large breaking force, strong and durable overall structure, and service life of more than 30 years;
- Green and environmental protection, without any chemical treatment, can be reused.
- Good perspective, luxurious appearance and novel style.
- Discrete, elegant and flexible.
- Convenient construction, simple installation, suitable for any conditions.
- Custom-Manufactured
-
Multifunctional,and compatible with creative architecture.
-
Premium Quality, Rugged , Weather-Resistant , Non-Corroding and Corrosion-resistant,Alkali Resistant
Popular Usages:
- Balustrades & Staircases
- 3D Structures
- Suspended Ceilings
- Fencing
- Zoo Cages,Aviary Netting ,Animal Enclosure
- Safety Net on Bridges , Buildings or Windows
- Climber Trainer
Experienced
Served many projects of railing,safety net,green wall,zoo enclosure.9 years flexible cable Mesh OEM & ODM.
Customer Service
Assist customer analyse the design,find exact needs.make optimal production plans. We Provide small free samples for checking or testing
Precsion Dimension
Clearly know the potentrial tolerance of mesh.particular irregular panel. have reasonable production plan.100% Install Guarantee.

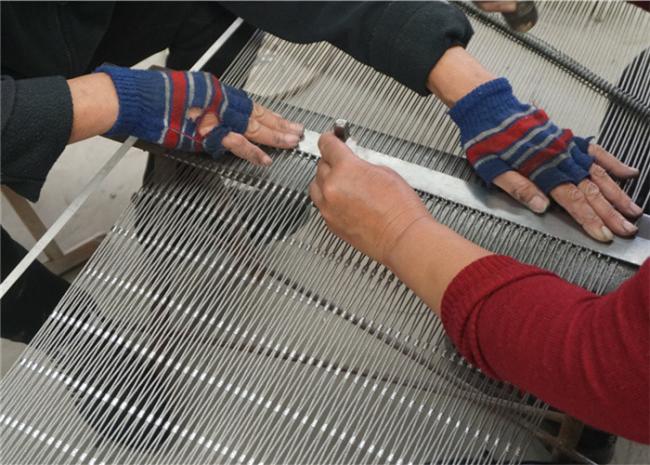

Our Factory Show:
