304 316 Stainless Steel Woven Wire Mesh Anti Falling Customized 60x60mm
Safety Netting Prevent Children Falling From Height Stainless Steel Wire Rope Mesh
Stainless Steel Wire Rope Mesh Introduction:
The stainless steel wire rope mesh, can prevent children falling from height safety mesh ,especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.
Stainless steel wire rope used for used for anti-hill mesh, balustrade mesh,chaildren playground mesh,zoo fencing,farm fencing and other security mesh,with stainless steel material and feature of rust-proof ,strongess and durability.
Specifications Of Stainless Steel Wire Rope Mesh :
| Stainless Steel Wire Rope Mesh List | ||||||
| Item No.s | Cable Structure | Cable Diameter | Mesh Eye Size(W x H) | Normal Break | ||
| inch | mm | inch | mm | lbs | ||
| YT-3212F | 7x19 | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1600 |
| YT-3210F | 7x19 | 1/8 | 3.2 | 4 x 6.9 | 102 x 156 | 1600 |
| YT-3290F | 7x19 | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1600 |
| YT-3276F | 7x19 | 1/8 | 3.2 | 3 x 5.2 | 76 x 131.6 | 1600 |
| YT-3251F | 7x19 | 1/8 | 3.2 | 2 x 3.46 | 51 x 88.3 | 1600 |
| YT-2410F | 7x7 | 3/32 | 2.4 | 4 x 6.9 | 102 x 176.7 | 920 |
| YT-2490F | 7x7 | 3/32 | 2.4 | 3.55 x 6.15 | 90 x 156 | 920 |
| YT-2476F | 7x7 | 3/32 | 2.4 | 3 x 5.2 | 76 x 131.6 | 920 |
| YT-2460F | 7x7 | 3/32 | 2.4 | 2.4 x 4.16 | 60 x 104 | 920 |
| YT-2451F | 7x7 | 3/32 | 2.4 | 2 x 3.46 | 51 x 88.3 | 920 |
| YT-2076F | 7x7 | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
| YT-2060F | 7x7 | 5/64 | 2.0 | 2.4 x 4.16 | 60 x 104 | 676 |
| YT-2051F | 7x7 | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
| YT-2038F | 7x7 | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 | 676 |
| YT-1676F | 7x7 | 1/16 | 1.6 | 1.2 x 2.08 | 76 x 131.6 | 480 |
| YT-1651F | 7x7 | 1/16 | 1.6 | 2 x 3.46 | 51 x 88.3 | 480 |
| YT-1638F | 7x7 | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 | 480 |
| YT-1630F | 7x7 | 1/16 | 1.6 | 1.2 x 2.08 | 30 x 52 | 480 |
| YT-1625F | 7x7 | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 | 480 |
| YT-1238F | 7x7 | 3/64 | 1.2 | 1-1/2 x 2.6 | 38 x 65.8 | 270 |
| YT-1230F | 7x7 | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 | 270 |
| YT-1225F | 7x7 | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 | 270 |
| YT-1220F | 7x7 | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 | 270 |
Mesh Orientation:
There are two kinds mesh orientation,one is Horizontal and the other is Vertical.Please check the following details.

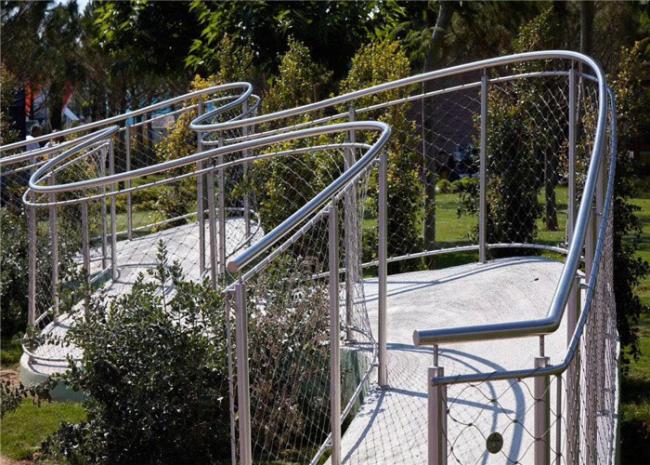

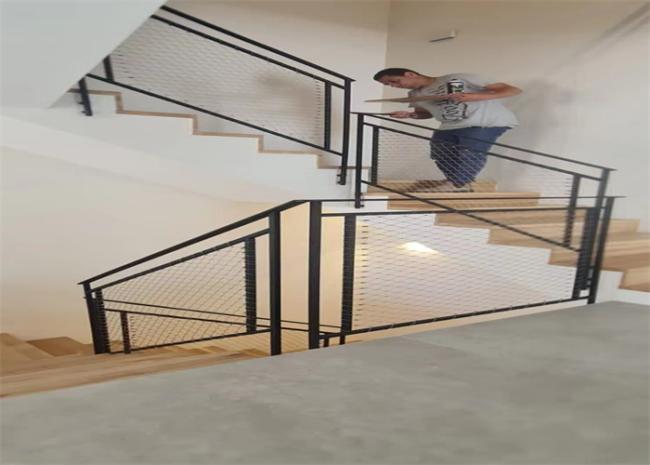

Stainless Steel Cable Mesh Project Show:
Mesh Details:
Aviary mesh of Shijiazhuang Zoo
Material : stainless steel 316
Cable diameter : 1.6mm (7*7)
Hole Aperture:40*70
Normal Break : 676 Ibs
Advantages :
|
1.solid and durable. |
| 2. The mesh Hole size and diameter can be modified. |
|
3. corrosion resistance. |
| 4. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment. |
|
5. Anti-corrosive, resist the rust, can be repeated use. |
|
6.All models, shapes and materials can be customized. We have our own factory |
How to place the order ?
- Rope diameter and mesh hole size : such as 1.2mmx25x25mm,2.0mmx60x60mm etc
- Opening orientation : H or V
- The height and length per piece
- Drawing is necessary if available
- Quantity
- When we get your confirmations, then we will be able to offer our exact price timely.
What is feature of wire rope mesh ?
1. Mesh designed under high break loading capacity.corrosion resistant.
2. 100% install guarantee.precsion panel dimension.
3. Suit tube frame or tension rope structure.
4. Irregular shape,large piece of mesh can be manufactured.
What kinds of project we served ?
Railing,balustrade,balcony,staircase infill.park fence.zoo fence.zoo bird aviary netting.green wall trellis.safety net on bridge.drop safet net.helideck mesh.
Where the mesh we sold?
United Kindom,USA,Canada,Czech,Slovakia,Spain,France,Creaze,Singapore,Japan,Australia etc.
Our Promise:
1.Delivery within delivery time.
2.If you want to have your own mark on the product, we will protect your information.
3.The best price is to retain the most sincere customers.
4.24 hours online, please contact us if you have any questions.
