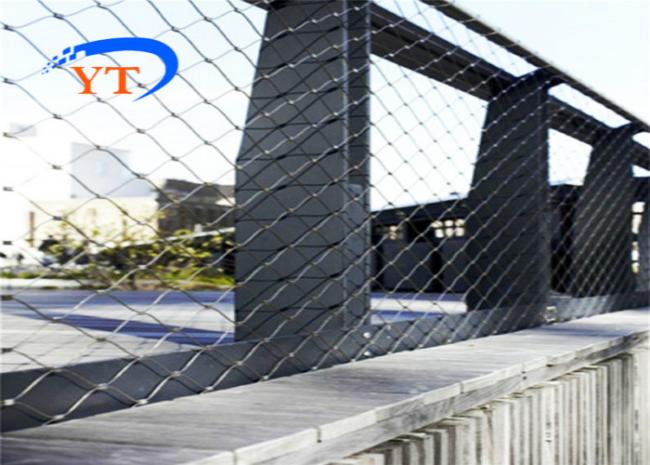

7x19 Stainless Steel Woven Wire Mesh / AISI304 Wire Rope Mesh Net For Balustrade Filler
Woven Wire Mesh Stainless Steel Rope Mesh For Balustrade Filler
Stainless Steel Rope Mesh Basic Information :
Stainless Steel Wire Rope Mesh made of high quality stainless steel wire rope, is a fabric of particular resilience and flexibility. Invented in 2000, it opens up a new world of spatial possibility using cables. And not doubt, it sweeps across the global market quickly thanks to its high strength, durability as well as corrosion resistance.
This products have various specifications suitable for different usages. We will recommend the wire rope diameter, mesh hole and installation suggestions suitable for each cases according to the different requirements of customers.
Specifications Of Stainless Steel Rope Mesh :
The stainless steel rope mesh is manufactured in the standard diameters 1.2 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm , 3.2mm and 4.0mm.
Mesh Opening is from 25 to 200 mm (or bigger) are possible depending on the cable diameter.
stainless steel rope mesh is manufactured from high-grade stainless steel cables of material class AISI304, AISI316.
|
Mesh Opening
|
1.2MM (7 x 7 ) |
1.6MM (7 x 7 ) |
2.0MM (7 x 7 ) |
2.4MM (7 x 7 ) |
3.2MM (7 x 19 ) |
4.0MM (7 x 19 ) |
| 20 x 35mm | YT-1235 | |||||
| 25 x 42mm | YT-1225 | YT-1625 | ||||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | |||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | |||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | ||
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 | |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 | YT-4050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 | YT-4060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 | YT-4070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 | YT-4076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 | YT-4080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 | YT-4090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 | YT-40100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 | YT-40120 |
What's the good features of the stainless steeo rope mesh?
- Mesh designed under high break loading capacity.corrosion resistant.
- 100% install guarantee.precsion panel dimension.
- Suit tube frame or tension rope structure.
- Irregular shape,large piece of mesh can be manufactured.
What is the process of rope net production:
Kindly Reminder:
Price for Stainless Steel Rope Mesht:
-
Please confirm the cable diameter and mesh opening you want?
-
Which Constructions of cable mesh do you prefer? Woven or Ferruled .
-
What is the material of the cable Mesh you want ? SS304,SS316 or SS316L .
-
Also please tell us the dimension of the cable mesh you prefer and the quantity .
-
You can also tell me where will you use the mesh then I will give you some advice based on your needs.
When we get your confirmations, then we will be able to offer our exact price timely.
