Ferruled Zoo Wire Mesh 3.2mm Stainless Steel Bird Cage Wire 30x30mm
Easily Assembled Ferruled Stainless Steel Wire Rope Net Zoo Mesh For Bird
Stainless Steel Wire Rope Net Description:

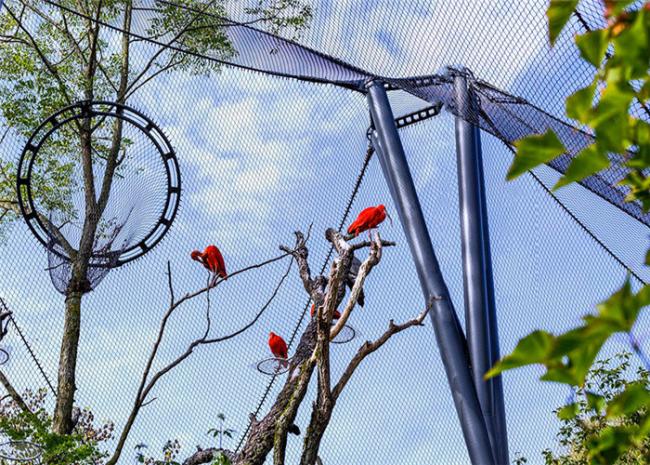

The stainless steel wire rope net, inox cable webnet, is capable of implementing typical sophisticated and personalized solutions to meet human and animal needs. The goal is not only to provide for animals, but also to provide a diverse environment for tourists. In other words, look for a solution that has a long life, is barely visible but is sturdy enough.
The rope net is a wire mesh fabricated out of woven stainless steel strands with exceptional tensile resilience and flexibility.
It is weather resistant, extremely robust and requires virtually no maintenance and can be suitable for interior and exterior applications.
Technical Info Of Stainless Steel Wire Rope Net Zoo Mesh :

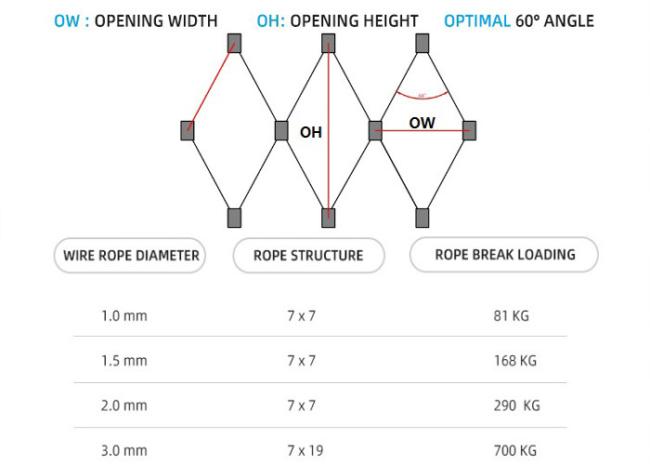

Stainless steel wire rope net is assembed by seamless ferrules and stainlesssteel wire rope.Diamond mesh when it is stretched at 60° angle ( Option: 20 °- 90° angle).
Wire diameter:1.2 mm (7*7 ),1.5 mm (7*7 ), 2.0 mm (7*7 ),3.0 mm (7*19) ,4.0 mm (7*19).
Mesh Hole size (OW X OH): 20mm x 35 mm - 200mm x 346 mm.
The cable structure is 7*7 or 7*19.
| Stainless Steel Wire Rope Net Zoo Mesh | ||||||
| Item No.s | Cable Structure | Cable Diameter | Mesh Eye Size(W x H) | Normal Break | ||
| inch | mm | inch | mm | lbs | ||
| YT-3212F | 7x19 | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1600 |
| YT-3210F | 7x19 | 1/8 | 3.2 | 4 x 6.9 | 102 x 156 | 1600 |
| YT-3290F | 7x19 | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1600 |
| YT-3276F | 7x19 | 1/8 | 3.2 | 3 x 5.2 | 76 x 131.6 | 1600 |
| YT-3251F | 7x19 | 1/8 | 3.2 | 2 x 3.46 | 51 x 88.3 | 1600 |
| YT-2410F | 7x7 | 3/32 | 2.4 | 4 x 6.9 | 102 x 176.7 | 920 |
| YT-2490F | 7x7 | 3/32 | 2.4 | 3.55 x 6.15 | 90 x 156 | 920 |
| YT-2476F | 7x7 | 3/32 | 2.4 | 3 x 5.2 | 76 x 131.6 | 920 |
| YT-2460F | 7x7 | 3/32 | 2.4 | 2.4 x 4.16 | 60 x 104 | 920 |
| YT-2451F | 7x7 | 3/32 | 2.4 | 2 x 3.46 | 51 x 88.3 | 920 |
| YT-2076F | 7x7 | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
| YT-2060F | 7x7 | 5/64 | 2.0 | 2.4 x 4.16 | 60 x 104 | 676 |
| YT-2051F | 7x7 | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
| YT-2038F | 7x7 | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 | 676 |
| YT-1676F | 7x7 | 1/16 | 1.6 | 1.2 x 2.08 | 76 x 131.6 | 480 |
| YT-1651F | 7x7 | 1/16 | 1.6 | 2 x 3.46 | 51 x 88.3 | 480 |
| YT-1638F | 7x7 | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 | 480 |
| YT-1630F | 7x7 | 1/16 | 1.6 | 1.2 x 2.08 | 30 x 52 | 480 |
| YT-1625F | 7x7 | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 | 480 |
| YT-1238F | 7x7 | 3/64 | 1.2 | 1-1/2 x 2.6 | 38 x 65.8 | 270 |
| YT-1230F | 7x7 | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 | 270 |
| YT-1225F | 7x7 | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 | 270 |
| YT-1220F | 7x7 | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 | 270 |
Package and Delivery Details:
-
Packing Details : Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.
-
Delivery : by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
-
As customer's requirements
Mesh Opening Detailed Introduction:
Accessory:
Features of the stainless steel Wire Rope Net:
- The stainless steel wire rope net zoo mesh is clipped to the cable.
- The mesh opening and wire diameter can be customized.
- It can be made to customer orders and statically tested – especially suitable for facades.
- Strong toughness, high strength, free-angles curving and fold, easy for transportation and installment.
- Non-rust, Anti-corrosive, it can be repeated use.
- Resists chewing by rodents and other pests (tensile strength approximately 100-110,000PSI)
- The service life can be over 30 years
How to place the order ?
- Wire diameter and mesh opening : such as 1.2mmx25x25mm,2.0mmx60x60mm etc
- Mesh Opening orientation : H or V
- The height and length per piece
- Drawing is necessary if available
- Quantity
- When we get your confirmations, then we will be able to offer our exact price timely.
