Durable Corrosion Resistance Steel Cable Netting Custom 7x19
Durable Corrosion Resistance Custom Stainless Steel Wire Rope Woven Mesh
Custom Stainless Steel Wire Rope Woven Mesh Details:
Stainless steel wire rope woven mesh have unique characteristics. It enables design flexibility in architecture. The stainless steel wire rope woven mesh combines the tensile strength of indestructible stainless steel with a beautiful diamond opening for elegance and beauty. All stainless steel rope nets are manufactured to ISO 9001 standards. The Custom stainless steel wire rope woven mesh is lightweight, strong, transparent and can withstand heavy loads and it is now widely used as railing infill systems, zoo enclosure, tensile facades mesh and green wall systems in security interior and exterior applications.
| Material | AISI304,AISI316,AISI304L,AISI316L |
| Woven | Plain Weave |
| Mesh Type | Ferruled |
| Application | Balustrade Mesh,Balcony Mesh,Safety Mesh,Zoo Enclosure,Aviary Mesh |
| Features | Flexible,soft,Corrosion Resistance,support customization |
| Cable Structure | 7x7,7x19 |
| Surface Treatment | Polish |
| Mesh Size | 0.95mx1m,0.8mx1m,1x1m,1x2m,1x5m,1.5x1m,1.5x3m,2x3m,2x6m |
| Mesh Opening Shape | Diamond |
| Wire Diameter | 1.2mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm |
| Mesh Opening | 25x25mm,30x30mm,40x40mm,50x50mm,60x60mm,80x80mm,100x100mm |
| Color | Stainless steel primary color,black,red,blue |
| Sample | Free,but the customer need to pay for the shippingcost |
| Certificate | CE,SGS |
Stainless Steel Wire Rope Woven Mesh Parameter :
Stainless steel wire rope woven mesh description:
- Rope Diameter : 1.2mm,1.5mm,1.6mm,2.0mm,2.4mm,3.2mm,customizable.
- Mesh Aperture Size : 40x40mm,50x50mm,60x60mm,80x80mmcustomized.
- Cable Structure : 7 x7,7x19
- The breaking load (lbs) : 270 to 1600
-
Mesh type : Inter-woven type (knotted type ) and Ferrule Type (Stainless steel ferrule) .
|
Stainless Steel Wire Rope Woven Mesh |
|||||
| Item | Cable Diameter | Mesh Aperture | Normal Break | ||
| inch | mm | inch | mm | lbs | |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
Different Mesh Types :
There are two kinds of mesh types. one is ferrule type, the other is knotted also named inter - woven type.You can choose anyone you prefer.

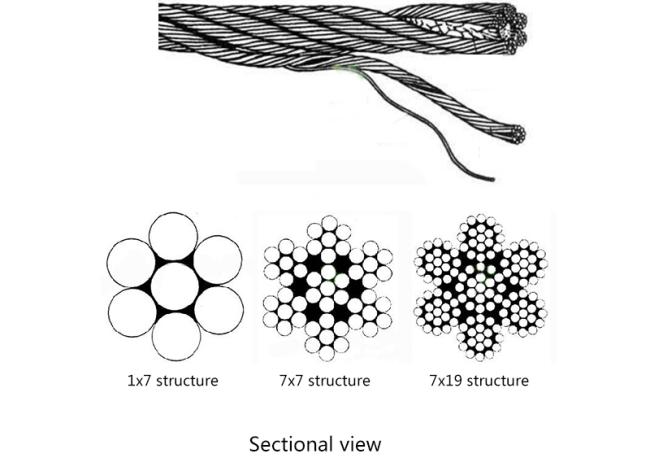

Cable Structure Show:
Mesh Aperture Directions:
Stainless Steel Wire Rope Woven Mesh Characteristics:
- Recyclable.
- Elegant and robust
- Good price-benefit-ratio.
- Light, robust yet transparent
- UV and weather resistant.
- Flexible and pliable
- The minimum visual impact on views.
- Easy to assemble and low maintenance.
- Climb resistant and prevents a secure foothold.
- Weave opening, meet any exact specification.
- Stainless steel provides the highest corrosion resistance
Packing And Delivery Details :
-
Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.
-
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
-
Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.
-
As customer's requirements
Quality Inspection:
FAQ:
Q : Can I get a piece of your products sample?
A : Yes, If the sample is available, it will be free and be provided anytime. If unavailable, need to customize.
Q : What type of metal mesh does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as the stainless steel wire rope woven mesh,decorative net,metal aluminum mesh.We have a professional production line of metal wire mesh .
Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel wire rope woven mesh products. Different application scenarios of stainless steel wire rope wovenmesh comes with different accessories,we will provide you with a detailed installation scheme.
Q : Which countries do you export to?
A : Our products are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
