Ss 304 316 Stainless Steel Rope Mesh Acid Resisting For Staircase
SS 304 316 Acid - Resisting Professional Railing System Steel Rope Mesh For Staircase
Steel Rope Mesh Information:
Steel rope mesh for staircase, no matter if horizontal or vertical, is one of the most important applications in the field of stainless steel wire rope mesh net and railing systems. Tested safety by the European Technical Approval for stainless steel wire rope mesh systems and flexible stainless steelcable mesh show the stability of the products.
| Certificate | CE,SGS |
| Cable Structure | 7x7,7x19 |
| Mesh Hole Shape | Diamond |
| Surface Treatment | Polish,pvc coated,black oxide |
| Raw Material | AISI304,AISI316,AISI304L,AISI316L |
| Wire Diameter | 1.2mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm |
| Cable Mesh Sample | Free,but the customer need to pay for the freight |
| Mesh Type | Ferruled type for the stainless steel wire rope mesh |
| Panel Size | 0.8x50m,1x1m,1x2m,1x5m,1.5x1m,1.5x3m,2x3m,2x6m |
| Available Colors | stainless steel primary color,black,red,blue,white,custom |
| Mesh Opening | 25x25mm,30x30mm,40x40mm,50x50mm,60x60mm,80x80mm,100x100mm |
| Features | Flexible,strong and x tend,high tensile and soft,light wight and long service life |
| Widely Usages | Railing Infill Mesh,Balustrade and balcony Mesh,Safety Mesh,Zoo Enclosure,etc. |
Steel Rope Mesh Specifications :
Steel rope mesh detailed description:
- Rope Diameter : 1.2mm,1.5mm,1.6mm,2.0mm,2.4mm,3.2mm,customizable
- Mesh Opening : 20mm - 300mm,customized
- Rope Construction : 7 x 7 , 7 x 19 , 1 x 19
- Breaking load (lbs) : 270 to 1600
-
Rope Mesh Type : Inter-woven type (knotted webnet) and Ferrule Type (stainless steel ferrule)
|
Railing System Steel Rope Mesh For Staircase |
|||||
| Item | Rope Diameter | Mesh Aperture | Normal Break | ||
| inch | mm | inch | mm | lbs | |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
Different Mesh Types :
There are two kinds of mesh types. one is ferrule type, the other is knotted also named inter - woven type.You can choose anyone you prefer.
What's the advantages of the stainless steel rope mesh:
- X - tend, weather-resistant and highly durable
- Certified and collision-tested to EN12600:2002
- Railing systems manufactured bespoke to meet project needs
- Available in a wide range of frame, finishing and fitment options
- High-grade 316 stainless steel for long-life performance and low maintenance
If you are interested in our metal rope mesh product please feel free to contact us.
Why choose the steel rope mesh for staircase?
- Maintenance free and easy to cleaning.
- Unique design idea, X-tend mesh style, beautiful appearance.
- Corrosion resistant, impact resistance, allows strong airflow.
- Long service time, can be used more than 50 years.
- The stainless steel wire rope net is close to the nature, green and recyclable.
- Stainless steel railing mesh is very easy to installation, we also can provide different fittings.
- Flexible, elegant, multifunctional, can be used to design a plane surface or can be tensioned into three-dimensional forms.

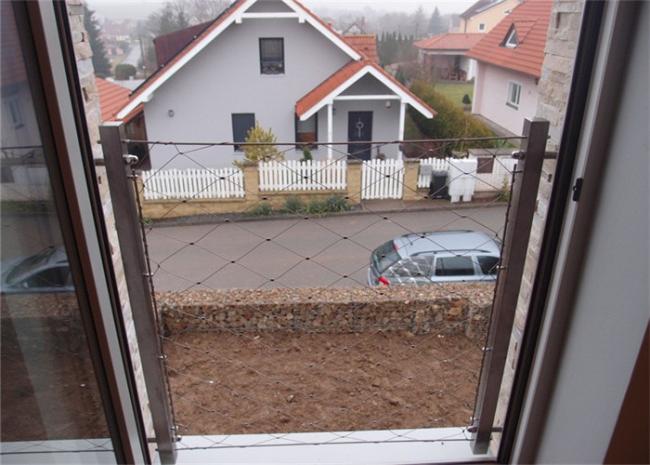

Steel Rope Mesh For Railing Syatem Cases In Austria:
Stainless steel rope mesh for staiircase details:
Material : ss 316
Wire Diameter : 1.6mm
Mesh Opening : 40 x 40mm
Panel Size : 90m (long) x 0.65m (high)
Mesh Type : ferruled type
Mesh Orientation : vertical
Stainless steel cable mesh fencing for bridge railings is installed as a protective wall for tha balustrade infill mesh. And it is with high flexibility and strength, so it can guarantee the safety of people.
Packing And Delivery Details :
-
Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.
-
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
-
Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.
-
As customer's requirements
FAQ:
Q : Can I get a piece of your products sample?
A : Yes, If the sample of the steel rope mesh is available, it will be free and be provided anytime. If unavailable, need to customize.
Q : What type of metal mesh does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as the stainless steel wire rope mesh,stainless steel ferrule rope mesh,knotted stainless steel cable mesh,metal decorative net,metal aluminum mesh,chain link curtain ,chain fly screen curtain and so on.We have a professional production line of metal wire mesh .
Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel wire rope mesh products. Different application scenarios of rope mesh comes with different accessories,we will provide you with a detailed installation scheme.
Q : Which countries do you export to?
A : Our products are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
