7 × 19 Eco Friendly Ferrule Rope Mesh For Plant Climbing Net / Plant Support
Eco-Friendly And Flexible Stainless Steel Rope Net For Plant Climbing Net Plant Support

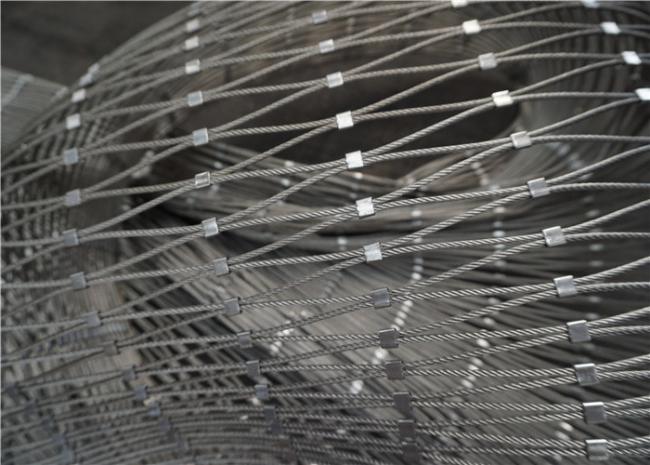

FlexibleStainless Steel Rope Net Detailed Introductions:
Eco-friendly stainless steel rope net is the characteristic leading product of our company. We have the CE and SGS certificates.Stainless steel rope mesh, also called Stainless Steel cable mesh, is made from high-quality stainless steel wire rope; with the features of being extremely anti-corrosion and resistant to UV rays, it has a long service life in harsh environments.
Flexible Stainless Steel Rope Net Specifications :
stainless steel rope netting Details:
- Rope diameter : 1.0–5.0 mm.
- Diamond sizes : 20–200 mm.
- Mesh Connection : ferrule or knotted.
- Material : AISI 304, 304L, 316, 316L.
- Structures of wire cable : 7 × 7, 7 × 19.
- Surface treatment : silver or black oxide finish.
- Ferrule material : copper, nickel-plated copper, stainless steel.
- Mesh opening angle : 60° or 90°. Mesh aperture at 60° is the standard opening.
- Ordering specific to order, according to the project. The following specifications are that customers order frequently.
|
Flexible Stainless Steel Rope Net |
|||||
| Item | Rope Diameter | Mesh Opening Size | Normal Break | ||
| inch | mm | inch | mm | lbs | |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
What need to know for design ?
316 grade stainless steel rope mesh is high performance cost ratio.
Heavier wire rope (d) offers higher break loading capacity.
The smaller opening (OW) of mesh cost expensive.
Border solution of mesh is necessary for installation.
Exact piece size of mesh can be manufactured.
Quality of mesh affects visual effects, using life. safety. maintenance cost etc.
Raw Material Of The Stainless Steel Rope Net:
Stainless steel rope net is hand-woven from Material 304 or 316 stainless steel ropes by molds. It is a creative product that perfectly used in gardens as the decoration and plant climbing mesh.

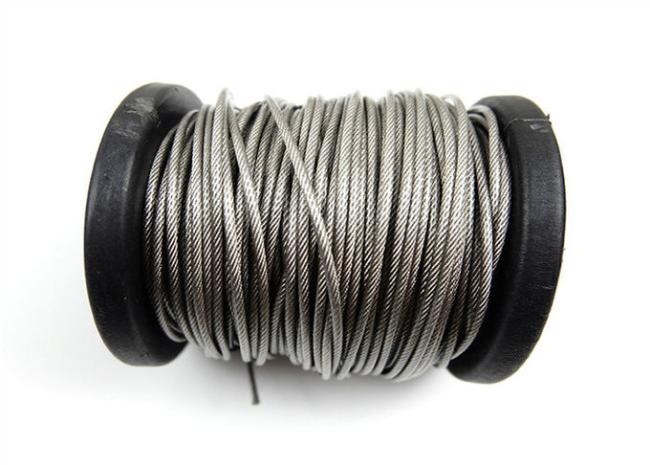

Rope Structure:
Stainless Steel Ferrules Details:
Ferrules Material:stainless steel 304,316,316L
Size:1.5mm,1.6mm,2.0mm,3.0mm,4.0mm

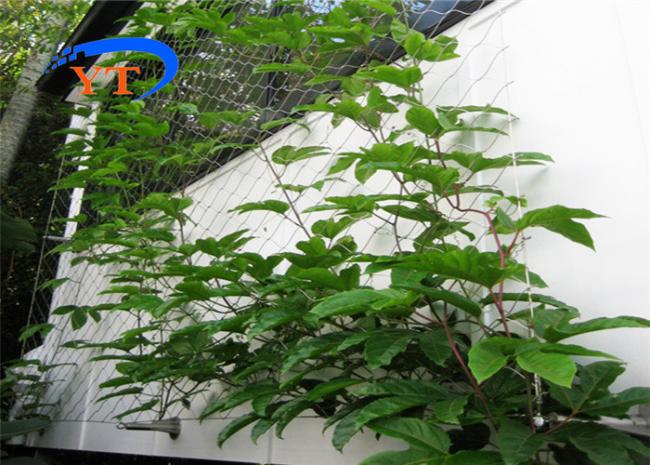

Stainless Steel Rope Net Application :
The Stainless steel rope net made by Yuntong company is a vibrant, premium-quality product made from the stainless AISI 316 material group: the mesh aperture W x H (variable from very tight to very wide), the wire-rope diameter (1.2 mm, 1.5 mm, 2.0 mm and 3.0 mm) determine fucntion and aesthetics.
In combination with architectural ropes, the mesh is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, facade greening, artwork, ball nets, stairwells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.
The flexible stainless steel rope net mesh with ferrules is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane. As the material is virtually indestructible stainless steel, it can safely contain any species on land.The hole size and diameter can be modified.It can be made to customer orders and statically tested – especially suitable for facades.

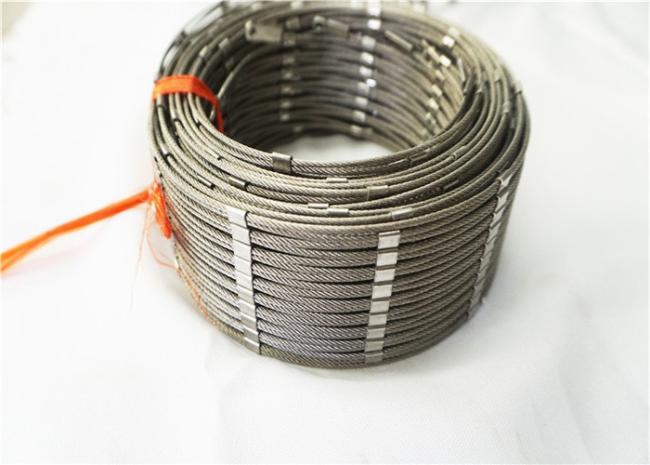

Packing And Delivery Details :
-
Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.
-
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
-
Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.
-
As customer's requirements
What are the advantages of stainless steel rope net for plant climbing net plant support?
- Recyclable.
- Good price-benefit-ratio.
- Easy installation and low maintenance.
- Weave opening meets any exact specification.
- Complete specifications and customized sizes.
- Green and environmental protection, without any chemical treatment, can be reused.
- Metal stainless steel rope mesh net is beautiful, high-end atmosphere, improve user taste and grade of the place used;
- The stainless steel rope plant climbing net has good softness, good sight, flame retardant, anti-tear and pull, and long service life;
- The metal mesh plant climbing net is corrosion-resistant, non-rusting, strong in tensile strength, resistant to wind, frost, rain and snow, and does not require maintenance;
