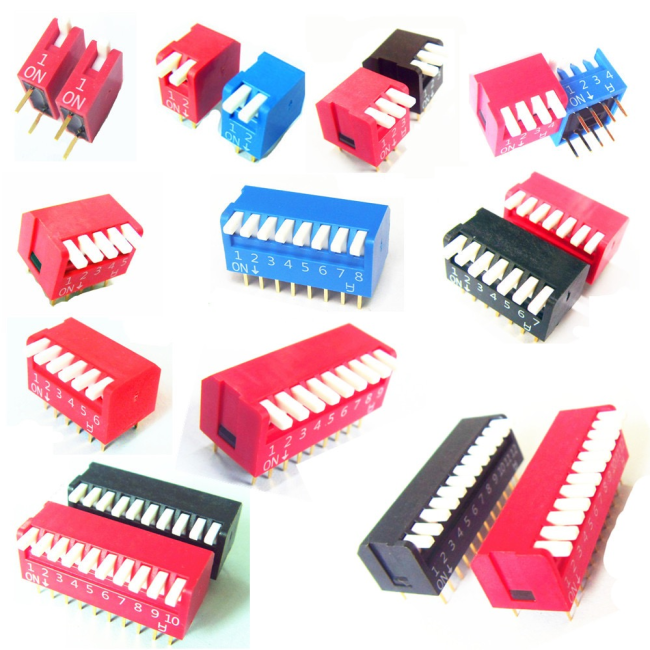

Panel Mount Dual Inline Package DIP Switch 500VAC For Microwave Oven
Insulation Strength: 500VAC / 1min Dip Switch Electrical Life 2000 Operations Min
|
Product Name
|
Dip Switch
|
|
Item Number
|
DIP-DS(R) |
|
Application
|
TV set, Microwave oven, photocopier, remote control aircraft
|
|
Electronic Life
|
>10000CYCLES
|
|
Mechanical Life
|
>10000CYCLES
|
|
Contact Resistance
|
100mΩ Max
|
|
Insulation Resistance
|
1000 MΩ Min. 500VDC
|
|
Withstand Voltage
|
>1500V/MINUTE
|
|
Dielectric Withstand
|
500VAC 1 minute
|
|
Storage Temperature
|
-25°C~+85°C
|
Material:
Cover: PBT plastic (red or blue)
Base: PBT plastic (black)
Operator: POM plastic (white)
Stock: epoxy resin potting
Terminal: tin plated phosphor bronze, contact gold plated 3u"
Sealing tape: polyimide KAPTON

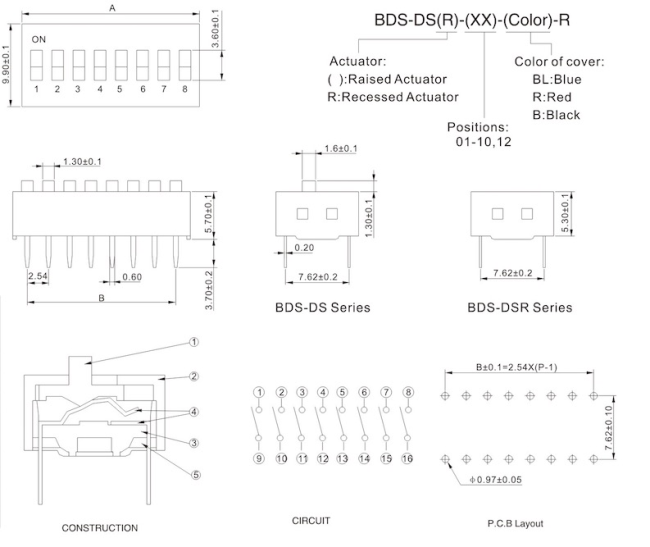

| Prod NO. | No.ofPOS | DIM.A | DIM.B |
| DS/DSR-01 | 01 | 3.84 | — |
| DS/DSR-02 | 02 | 6.08 | 2.54 |
| DS/DSR-03 | 03 | 8.92 | 5.08 |
| DS/DSR-04 | 04 | 11.16 | 7.62 |
| DS/DSR-05 | 05 | 13.70 | 10.16 |
| DS/DSR-06 | 06 | 16.24 | 12.70 |
| DS/DSR-07 | 07 | 19.08 | 15.24 |
| DS/DSR-08 | 08 | 21.32 | 17.78 |
| DS/DSR-09 | 09 | 24.16 | 20.32 |
| DS/DSR-10 | 10 | 26.40 | 22.86 |
| DS/DSR-12 | 12 | 31.48 | 27.94 |
Switching Characteristics:
Switch Capacity: 25mA at 24VDC
Insulation Resistance:100MΩ at 250VDC
Contact Resistance: 50mΩ max.
Insulation strength: 500VAC / 1min
Operation Force : 1000gf max.
Electrical life: 2000 times
Operation Temp:-20ºC~+70ºC
Welding requirements:
Manual welding: 320 degrees C no more than 2 seconds. (30 watt iron max.)
Wave soldering: 260 degrees C no more than 5 seconds, in the welding and cleaning process switch is ope
