Mini Tactile Switch Smd Film switch 4*4*0.8mm 4x4mm Micro Ultrathin Tact Switch

Tact switches are divided into two categories: the use of metal reeds as switch contact sheets is called

tact switches, which have a small contact resistance and a cluster of 20 mn. It feels good, with a crisp

sound of "tick". The switch that uses conductive rubber as the contact path is called conductive rubber

switch. The switch feels good, but the contact resistance is large, generally 100-300n. The structure of

the light touch switch is to move down by the button, so that the contact reed or conductive rubber block

contacts the soldering piece, forming a path

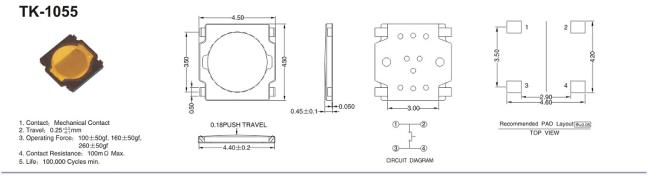

Specification

Contact Rating:50mA, 12V DC
Contact Resistance:100mΩ max.
Insulation Resistance:100MΩ min. 100V DC
Dielectric Strength:100V AC/1 minute
Operating Force :160±50gf/235±60gf
Travel :0.15±0.1mm
Operating Life:50,000 cycles for 235gf
                       :500,000 cycles for 160gf
