Surface Mount Selector Switch 8 Position Waterproof REACH Compliant
Non-Shorting 8 Position Rotary Selector Switch / Coded Switch
Standard Specifications
• Operating temperature range: -40°C~ +85°C
• ( Reflow soldering): -40°C~ +125°C
• Storage temperature range: -25°C~ +70°C
• Sealing: Washable by "O" ring
• Mechanical Life: 20,000 Steps
• Contact rating
Non-switching: DC 50V 10mA
Switching: DC 5V 100mA
Minimum: DC 20mV 1 u A
• Contact timing: Non-shorting
• Contact resistance (Initial/after operating life): 60mΩ/100mΩ
• Insulation resistance: 100MΩ(DC 100V)Max
• Dielectric strength: 300VAC/1 minute
Soldering Information
• Wave soldering: 270°C 5 Sec.Max.
• Reflow Soldering: 260X3 10-30 Sec.Max.
• Hand Soldering: 3506 3 Ses.Max
7/8 gears
| Items | Standard | |
| Operating temperature range | -40'O~+85<C | |
| Electrical performance | Switch Rating | 5VDC 100mA |
| Non-Switch Rating | 50VDC 100mA | |
| Durability | Lifetime | 20,000 Steps |
Features
• Washable Meet IP67
• Gold plated contactor
• RoHS & REACH compliant
• Surface Mount & Thru-Hole style
• Flash & more versionsextended Rotor & Knob
Package
| P/N | Function Code | Quanitty per Tube |

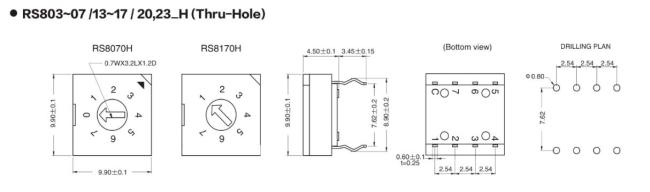

| RS8_H/T | 03,04,05,06,07 | 50 |
| RS8_H/T | 13,14,15,16,17 | 50 |
| RS8_H/T | 20,23 | 50 |
| RS8_S | 03,04,05,06,07 | 50 |
| RS8_S | 13,14,15,16,17 | 50 |
| RS8 S | 20,23 | 50 |
| RS8_Y | 03,04,05,06,07 | 50 |
| RS8_Y | 13,14,15,16,17 | 50 |
| RS8_Y | 20,23 | 50 |
| P/N | Function Code | Quanitty per Tube |
| RS8 0/1S-R | 03,04,05,06,07 | 600 |
| RS8 0/1S-R | 13,14,15,16,17 | 600 |
| RS8 0/1S-R | 20,23 | 600 |
| RS8_3S-R | 03,04,05,06,07 | 350 |
| RS8.3S-R | 13,14,15,16,17 | 350 |
| RS8.3S-R | 20,23 | 350 |
| RS8_7S-R | 03,04,05,06,07 | 200 |
| RS8_7S-R | 13,14,15,16,17 | 200 |
| RS8_7S-R | 20,23 | 200 |
| RS8_7H/T-R | 03,04,05,06,07 | 140 |
| RS8_7H/T-R | 13,14,15,16,17 | 140 |
| RS8_7H/T-R | 20,23 | 140 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
