SGS Headphone Female Jack , 2.5 Mm Headphone Jack phos bronze plated
Price:
Negotiate
MOQ:
Negotiate
Delivery Time:
Negotiate
Brand:
KKG
Product Description

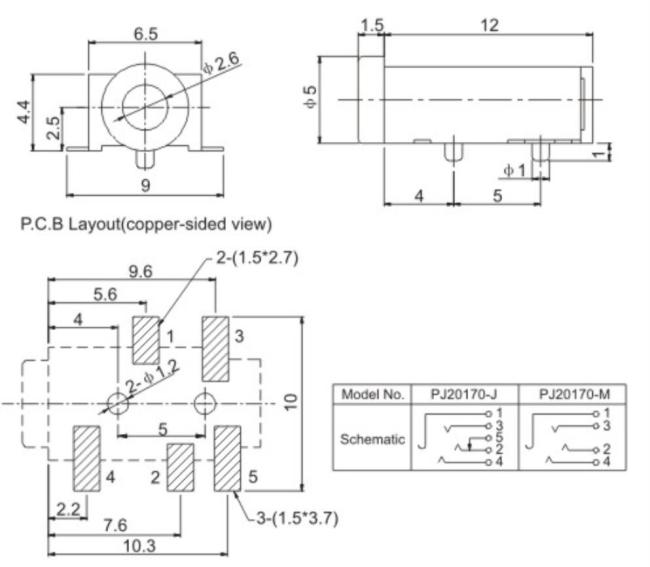

2.5mm Audio Headphone Jack DC Connector Socket For Audio , Video
3.5mm Stereo Type Phone Jace with SWITCH
Material: Phosphoric Bronze(AG Plated), Bronze(AG Plated), PC
Rated Voltage: 30VDC
Rated Current: 0.5A -2A
Contact Resistance: 30 milliohm max.
Heat Resistance: 100 degree for 1 hours
Unloaded Life Test: 5000 cycles, 20-30 cycles / min
Loaded Life Test: 3000 cycles, 18-20 cycles / min
Product details:
| Application | PCB |
| contact material plating | 0.35mm thick phos bronze plated with 6u" gold |
| Capacity | 100000 pieces per week |
| Terminal | Ag plated |
| Operating Voltage | 2.7~5.5V |
| Contact Resistance | ≤0.03Ω |
| Insulation resistance | ≥100mΩ |
| Certificate | ISO9001/14001/RoHS |
| Mechanical life | 5000 cycles |
| Samples | Free |
|
Product Name
|
Audio jack connector
|
|||
|
Certification
|
ISO9001,ISO14000,ROHS,REACH
|
|||
|
MOQ
|
Small order can be accepted
|
|||
|
Application
|
Widely used in telecommunication equipment ,computer
|
|||
|
Package
|
Put into export standard carton with packing list and shipping mark
|
|||
|
Sample
|
For free
|
|||
|
Accepted Payment Type
|
T/T, Credit Card, PayPal, Western Union
|
|||
|
Accepted Delivery Terms
|
FOB, CIF, EXW
|
|||
|
Delivery
|
Stocks products in 3 working days
Customized products around 7 working days |
|||
