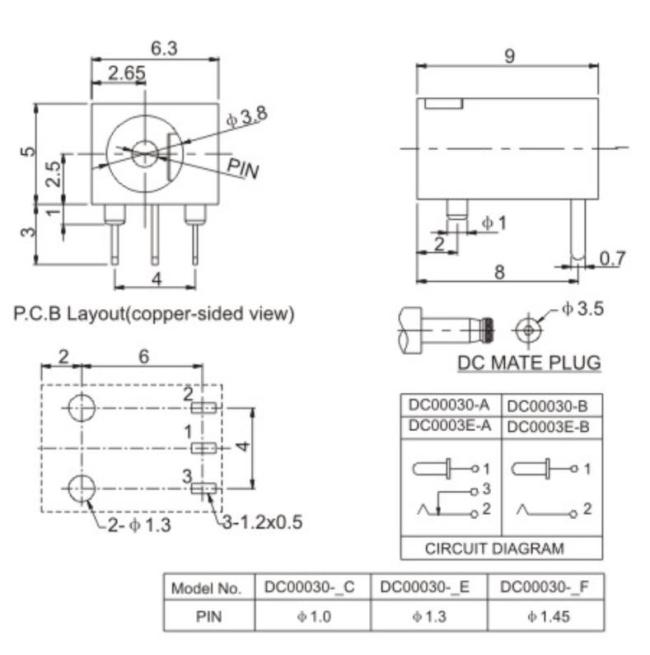

Dc-Jack 3 Pin PCB Solder , Smd 30v Laptop Power Female Dc Connector JacK



Rating	1.0A, 30V DC
Contact Resistance	30m Ω Max(initial).
Insulation resistance	100mΩ Min(250VDC)
Dielectric Strength	AC 500V(50Hz for 1 minute)
Actuating Force	3 〜20N
Environment Temperature	30oC to+70oC
Electrical Life	5,000 Cycles

Quality:

Quality is the most important thing in our company.We use only the best quality(original) components to ensure the standard of our product range is of the highest caliber.All products we sold out are strictly selected and tested by our QC department.

FAQ

1.Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every product, either by laser, or by moulds.

2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.

3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.

4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.

5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.
